I/P Junction Block - I/P

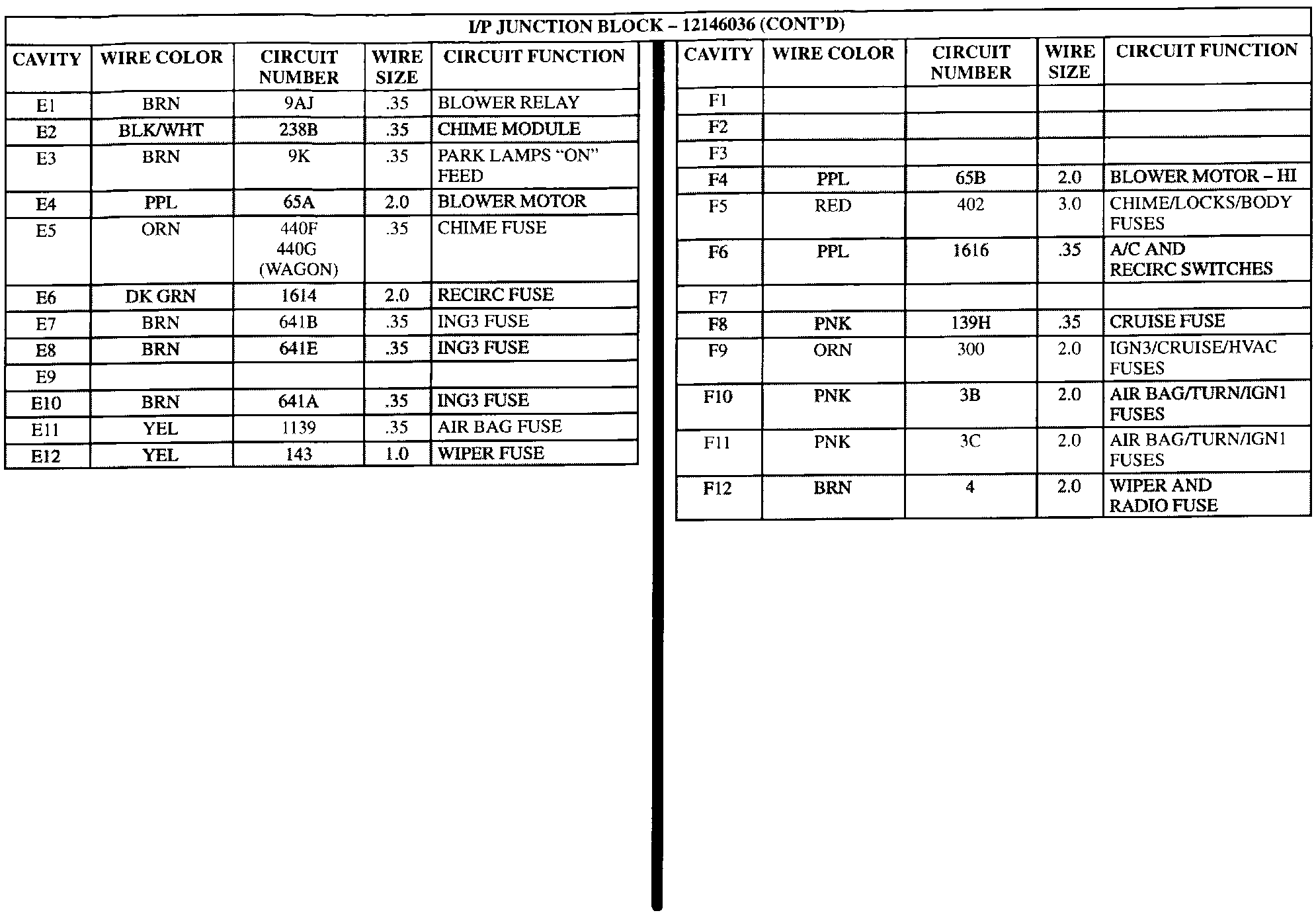

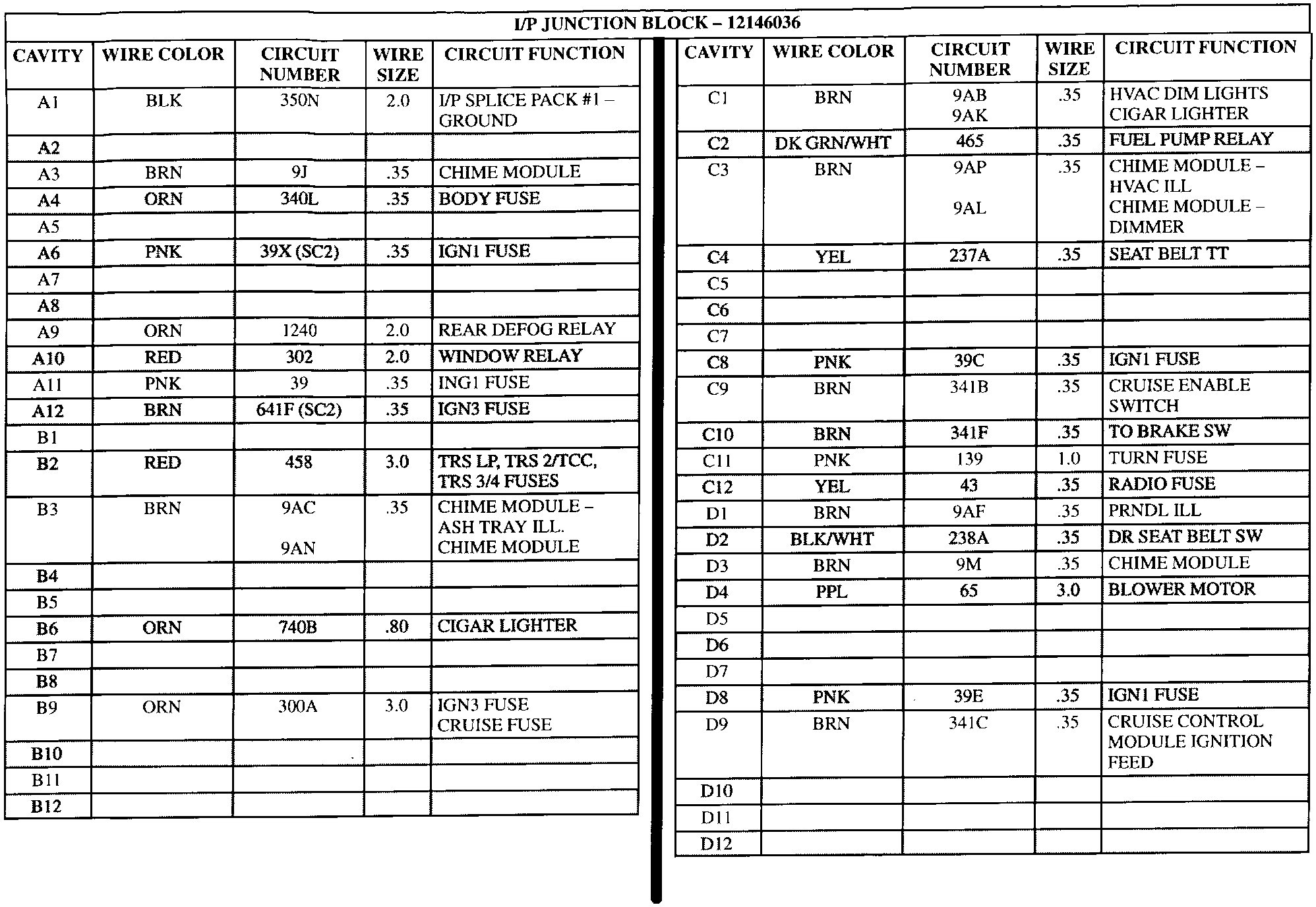

I/P Junction Block - I/P:




I/P Junction Block - I/P:




I/P Junction Block - I/P:
