Home >> Saturn >> 1993 >> SC L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Fuse >> Maxi-fuses

Maxi-fuses

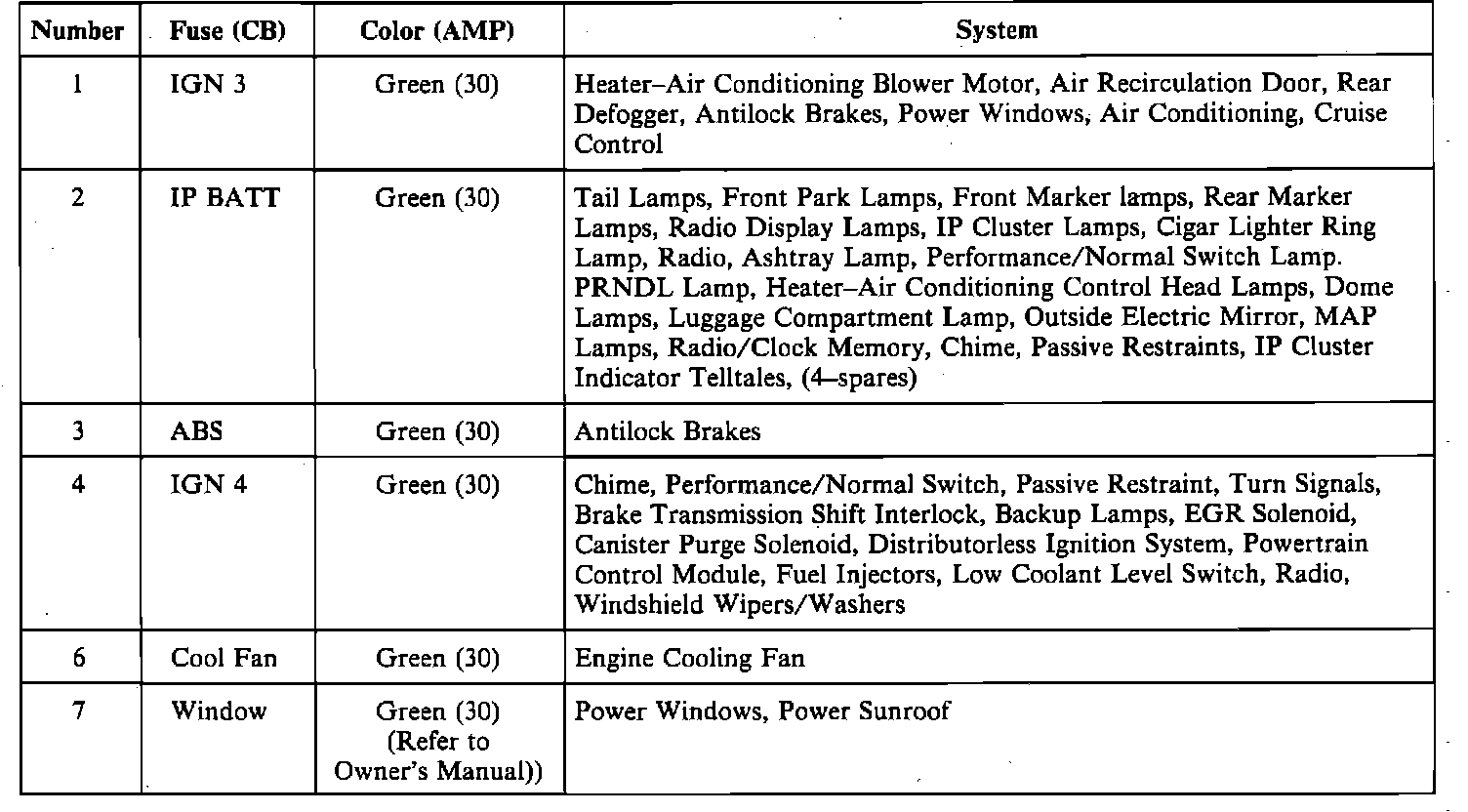

Circuit Breaker Minifuses And System Feeds:



Circuit Breaker Circuit Feeds:
