Home >> Saturn Truck >> 2005 >> VUE AWD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Components

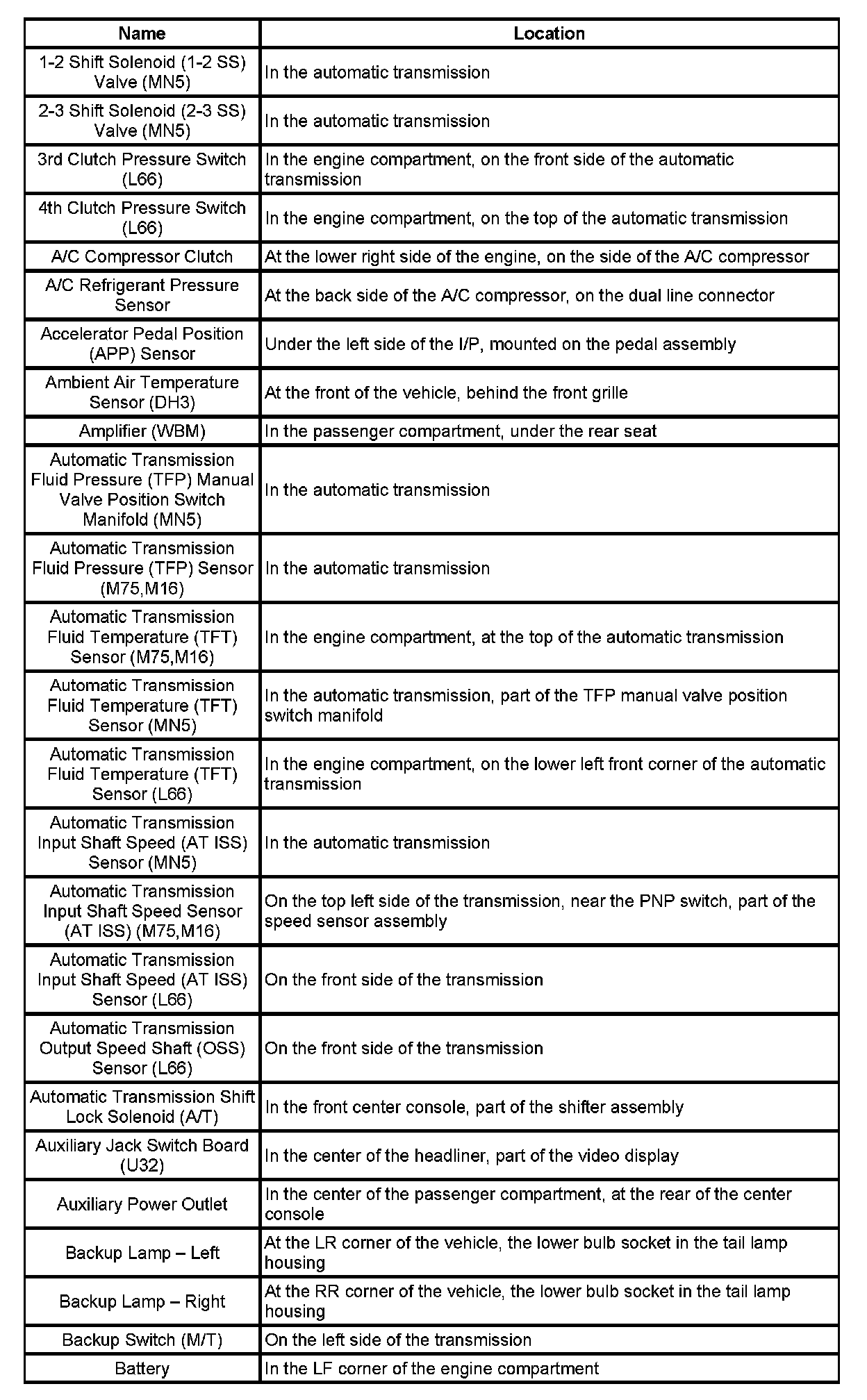

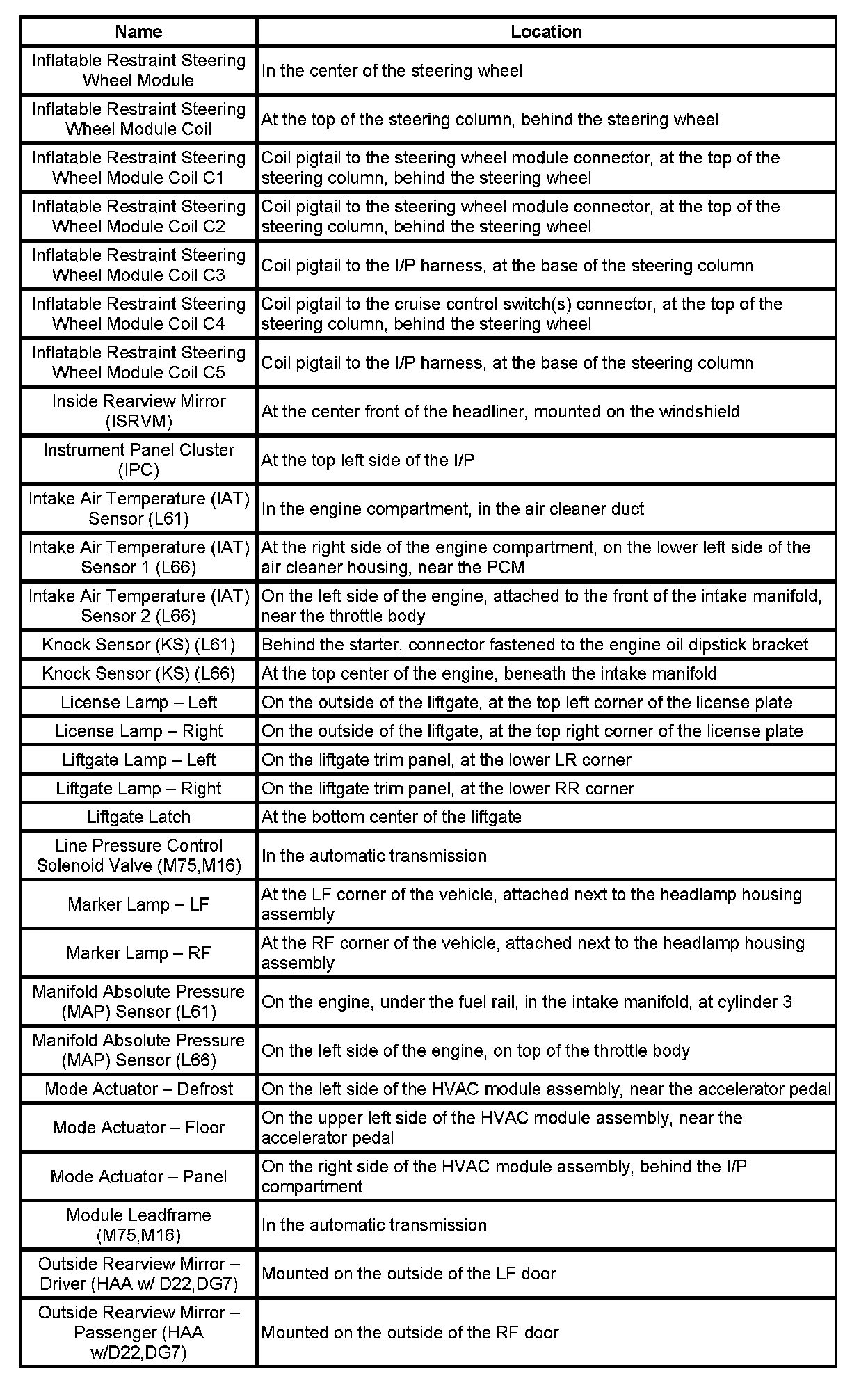

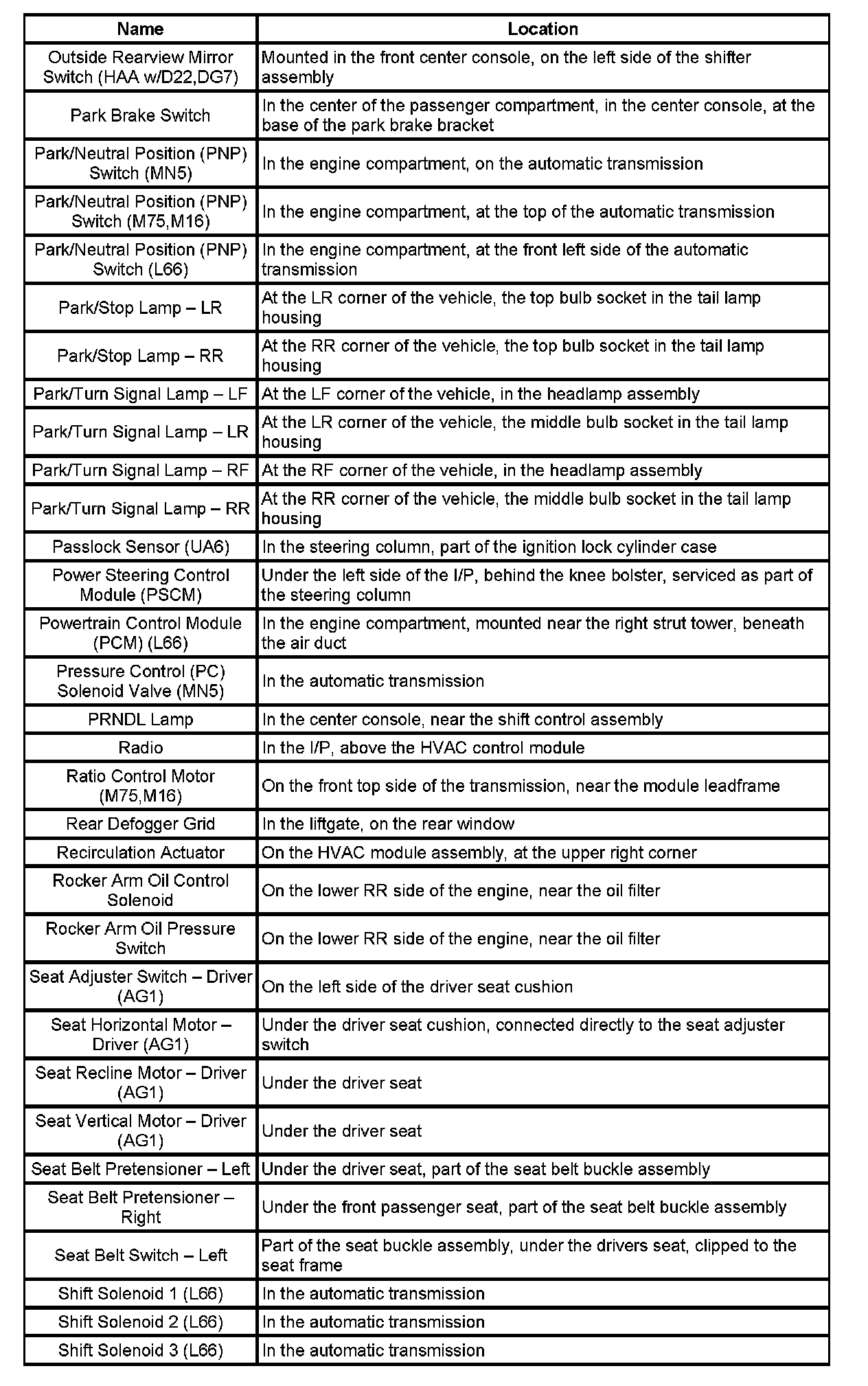

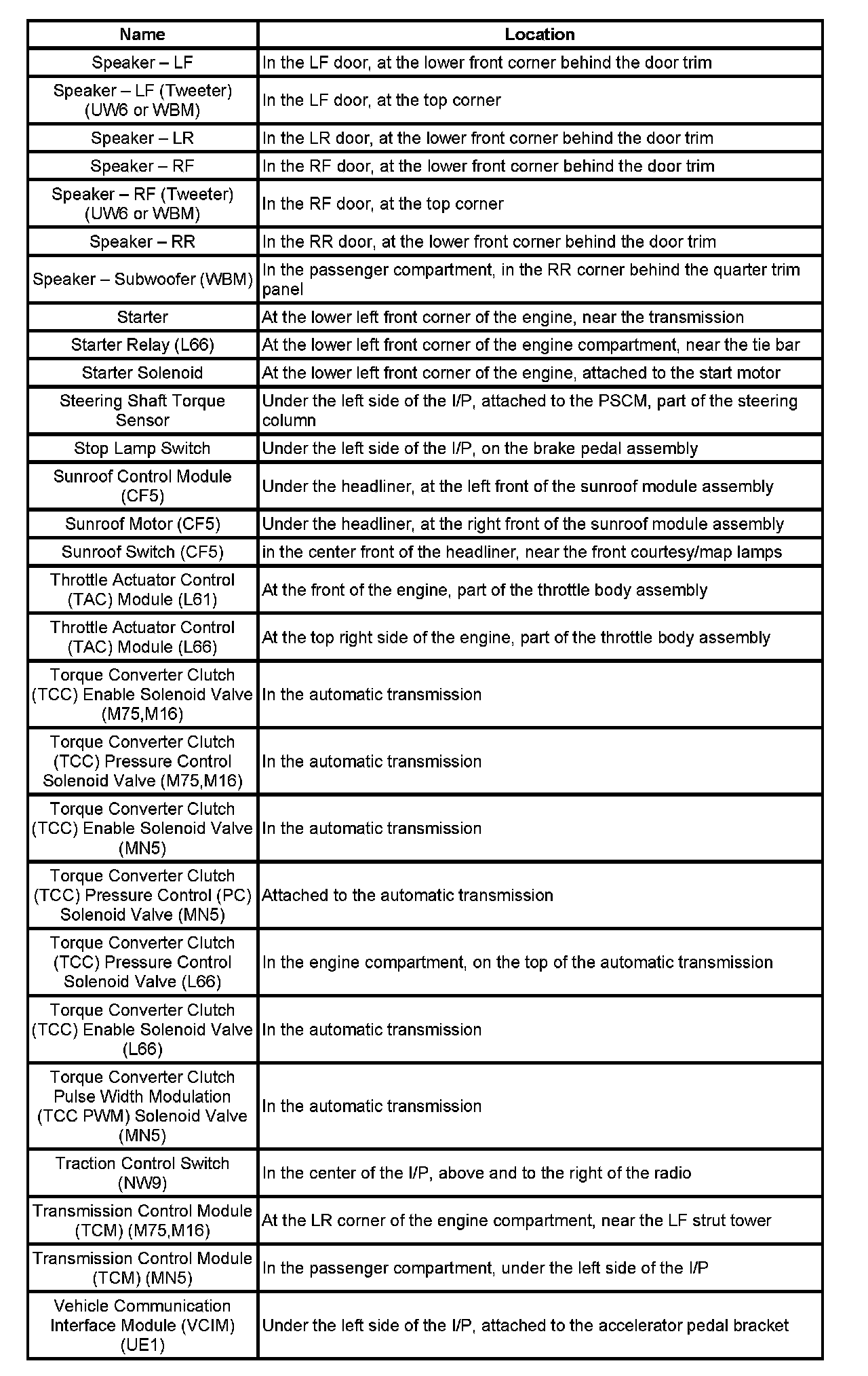

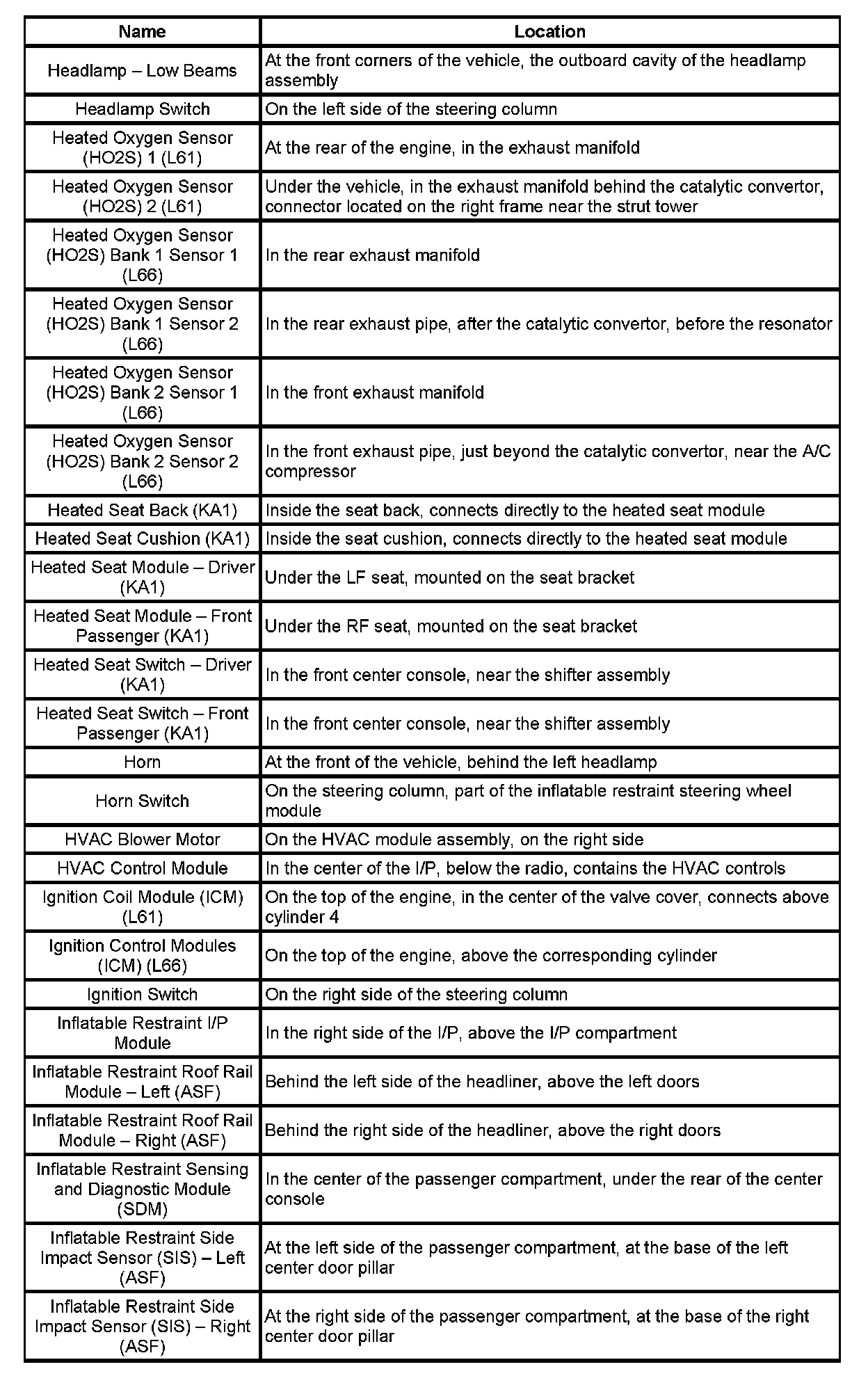

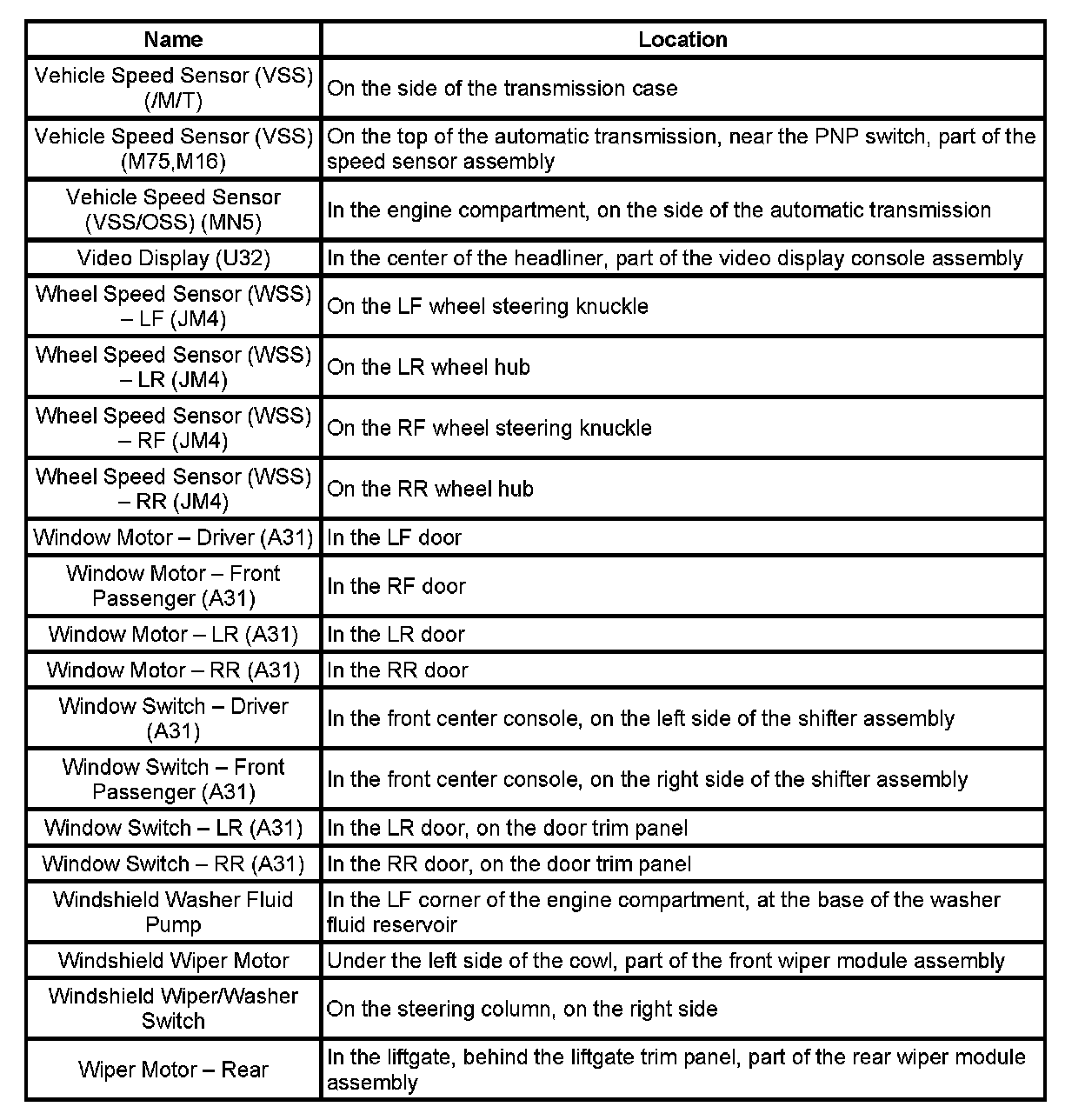

Components

1-2 - Ba:




Bl - Do:




Do - He:




He - In:




In - Ou:




Ou - Sh:




Sp - Ve:




Ve - Wi:
