Home >> Saab >> 2011 >> 9-4X XWD V6-2.8L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 54. Lift Plate and Holding Fixture Removal

54. Lift Plate and Holding Fixture Removal

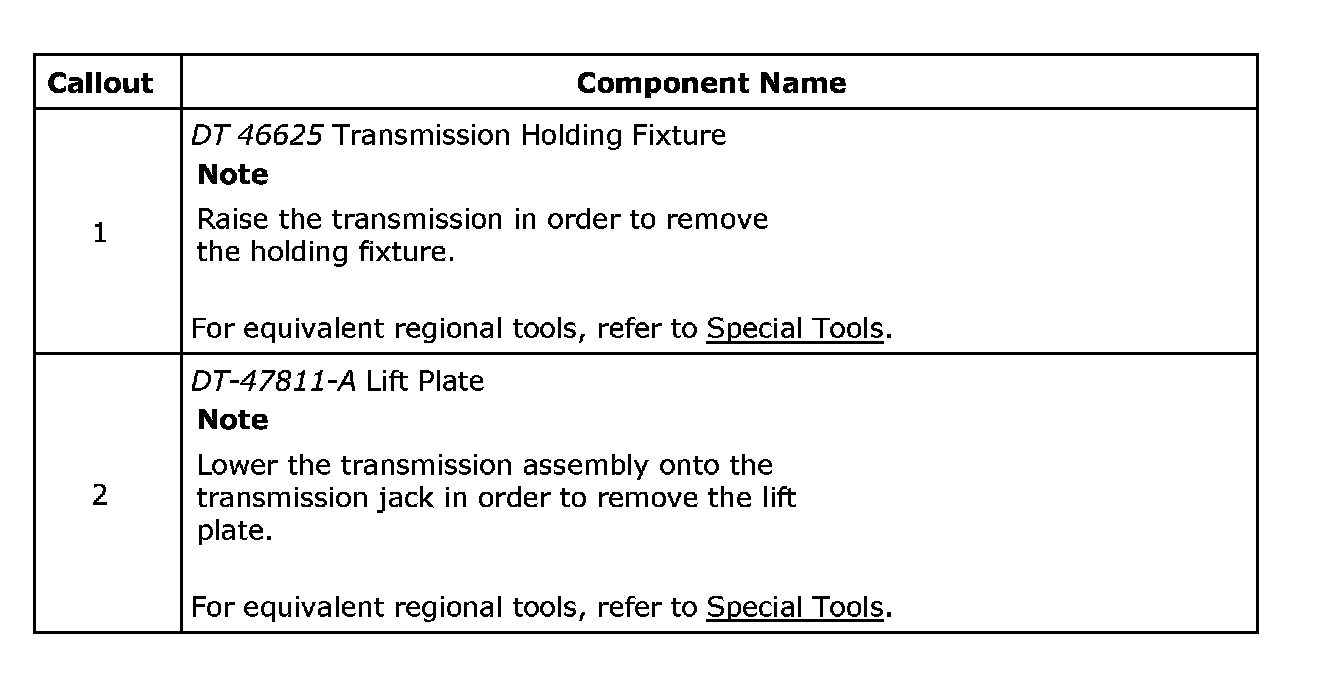

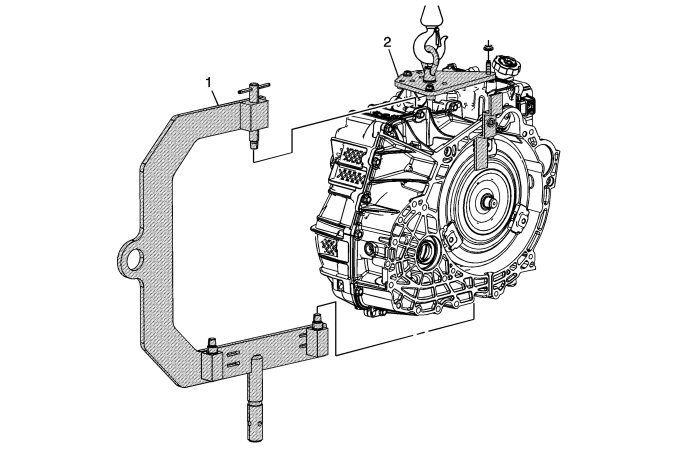

Lift Plate and Holding Fixture Removal
