14. Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement

Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement

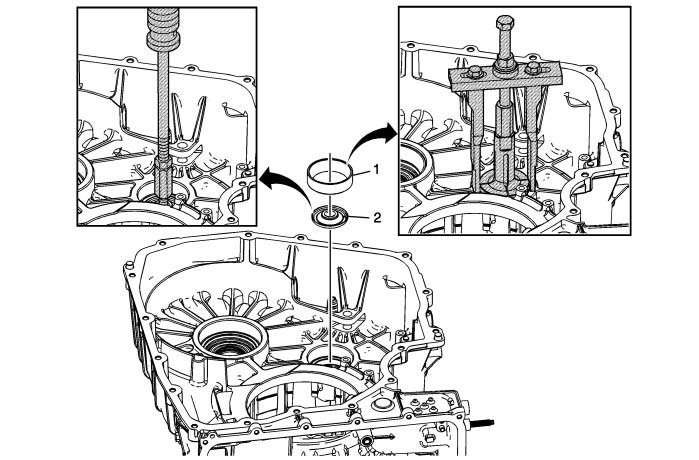

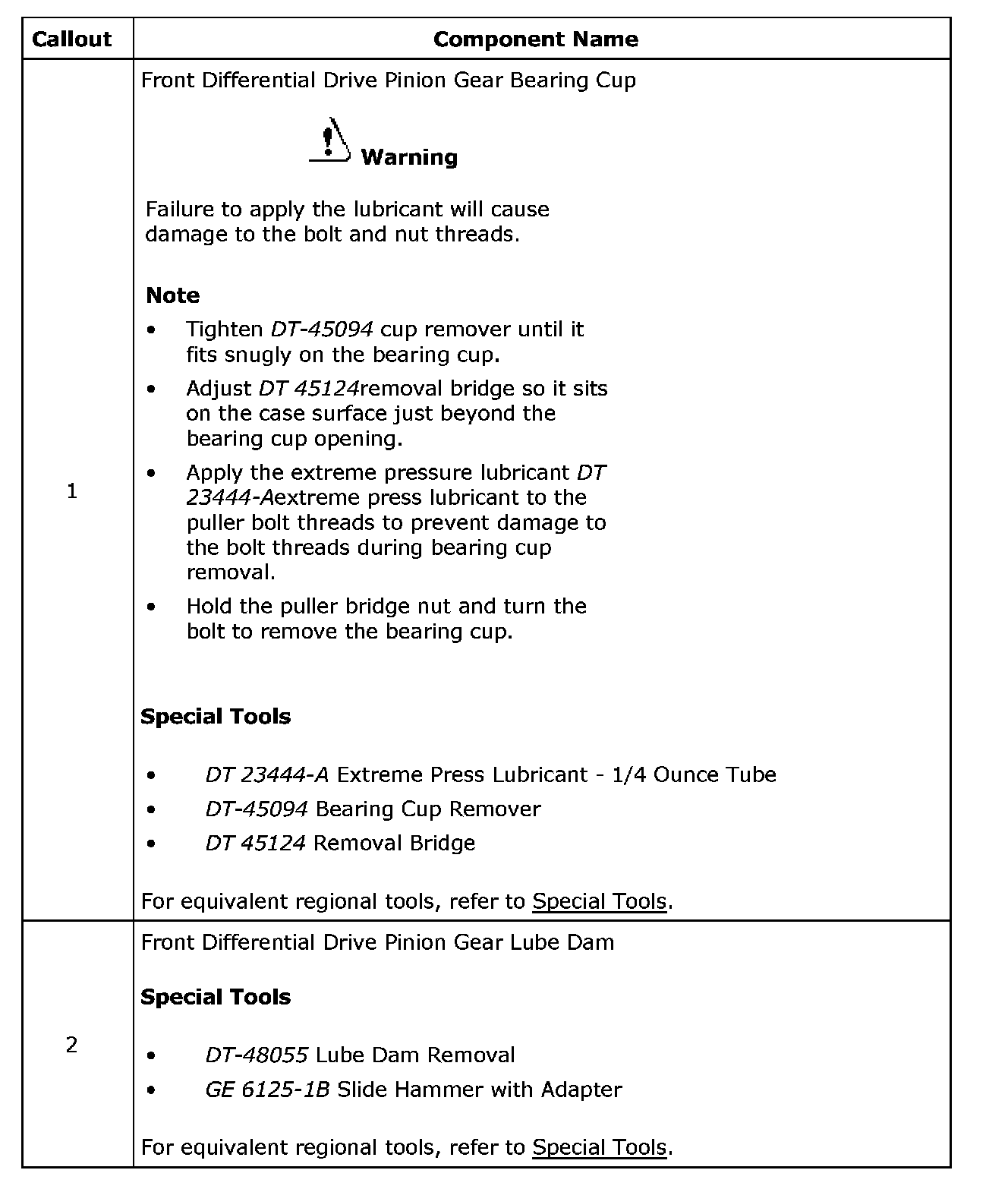

Removal





Removal

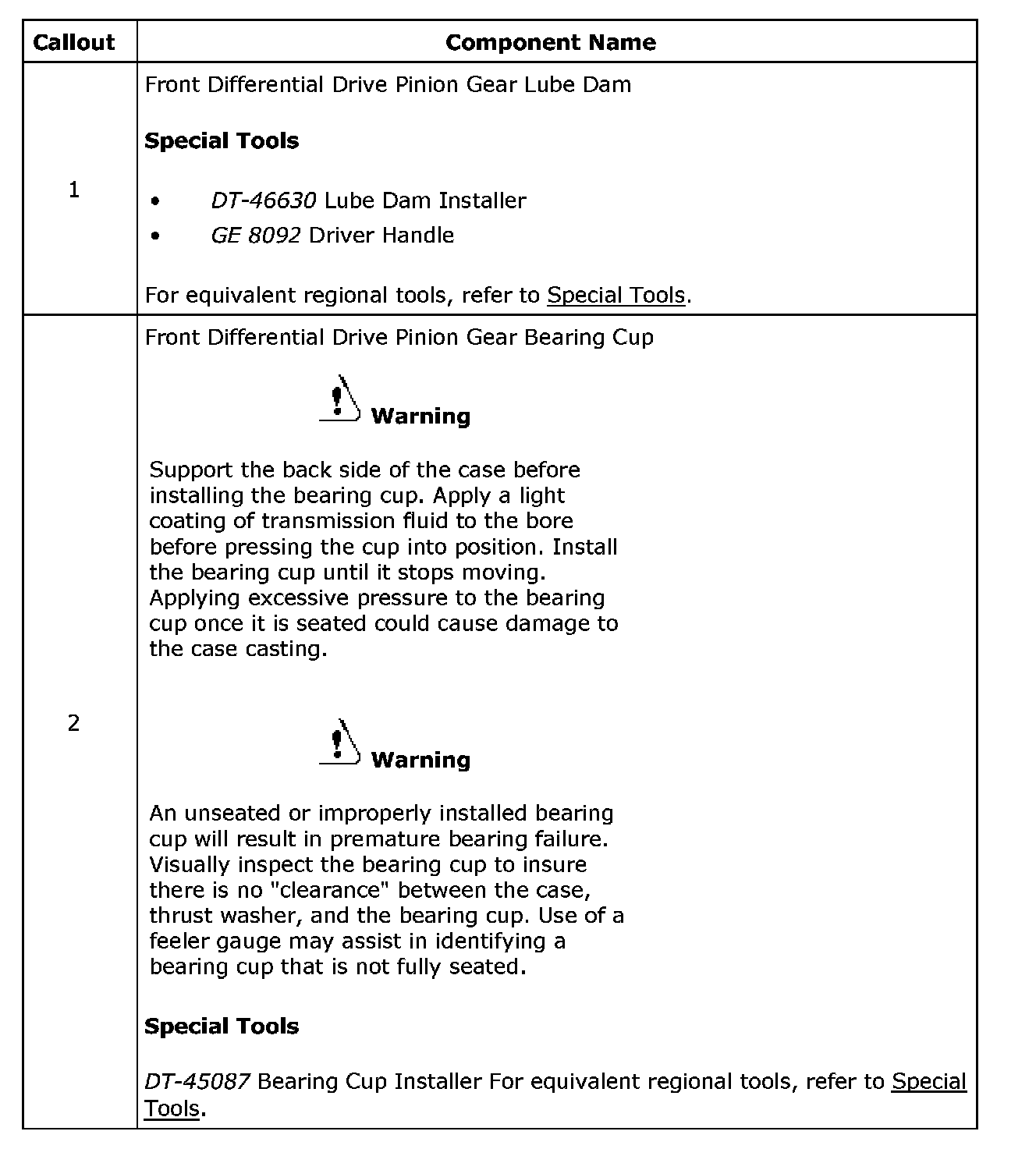

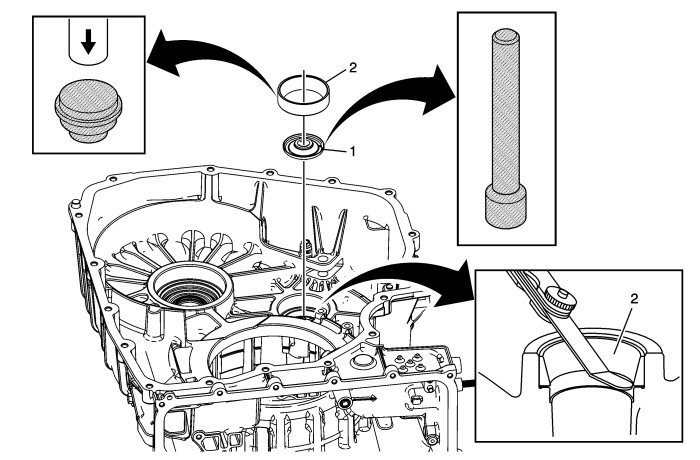

Installation





Installation
