Home >> Saab >> 2011 >> 9-4X XWD V6-2.8L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Harmonic Balancer - Crankshaft Pulley

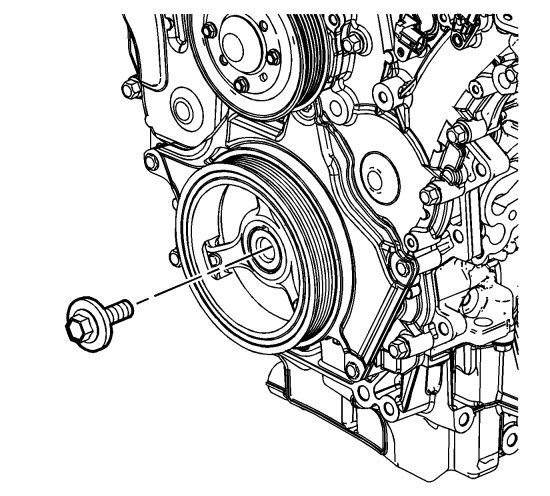

Harmonic Balancer - Crankshaft Pulley

Crankshaft Balancer Bolt





First pass 100 Nm (74 lb ft)
Final pass Tighten an additional 150°
