Home >> Saab >> 2011 >> 9-4X XWD V6-2.8L Turbo >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Turbocharger >> Turbocharger Exhaust Inlet Adapter >> Service and Repair >> Exhaust Turbocharger Inlet Pipe Replacement - Bank 1

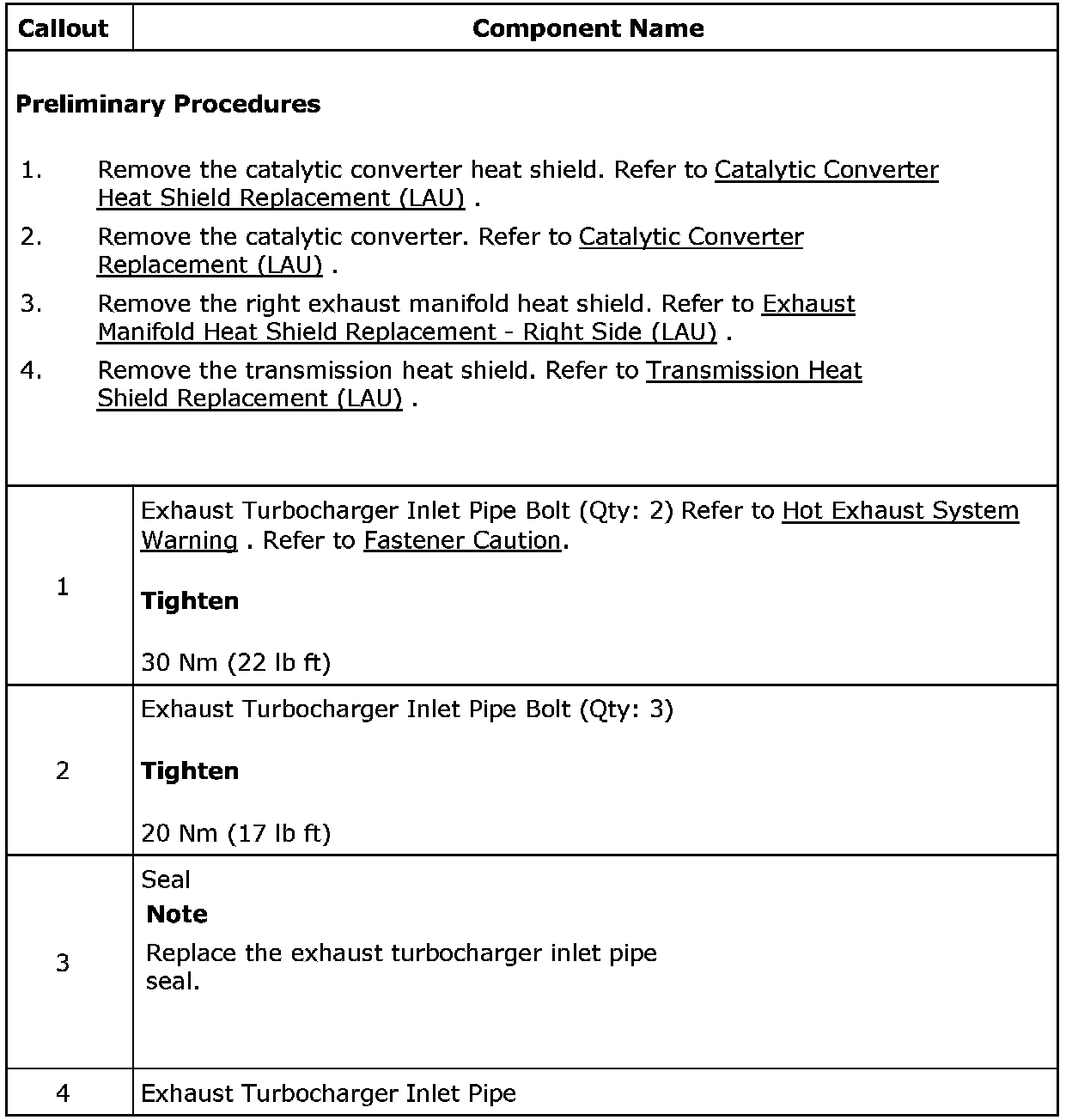

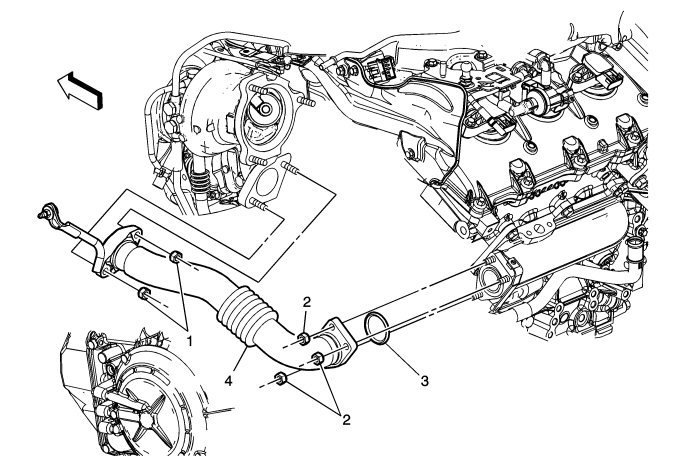

Exhaust Turbocharger Inlet Pipe Replacement - Bank 1

Exhaust Turbocharger Inlet Pipe Replacement - Bank 1 (LAU)
