Exhaust Turbocharger Inlet Pipe Removal - Left Side

Exhaust Turbocharger Inlet Pipe Removal - Left Side

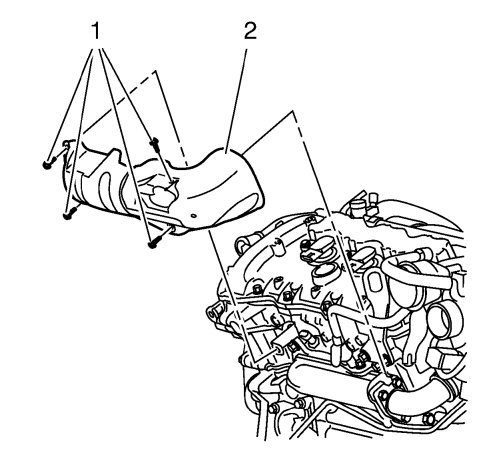

1. Remove the 4 exhaust heat shield bolts (1).





2. Remove the exhaust heat shield bank 2 (2).

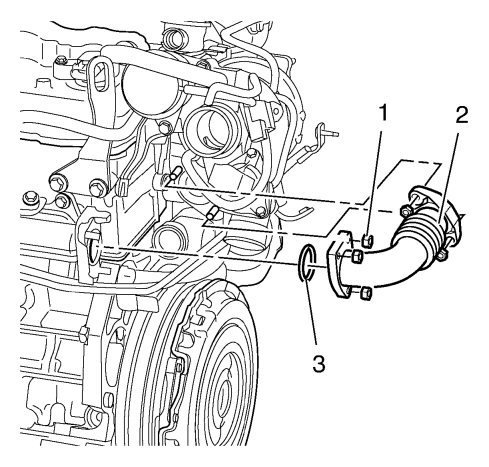

3. Remove the 5 turbocharger exhaust pipe nuts (1).





4. Remove the exhaust turbocharger inlet pipe bank 2 (2).
5. Remove the turbocharger exhaust pipe gasket (3).
