Exhaust Turbocharger Inlet Pipe Installation - Right Side

Exhaust Turbocharger Inlet Pipe Installation - Right Side

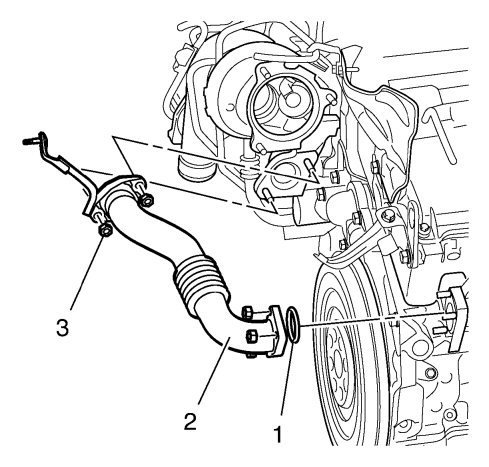

1. Install the NEW turbocharger exhaust pipe gasket (1).





2. Install the exhaust turbocharger inlet pipe bank 1 (2).
3. Refer to Fastener Caution.

Install the 5 NEW turbocharger exhaust pipe nuts (3) and tighten to 30 Nm (22 lb ft).

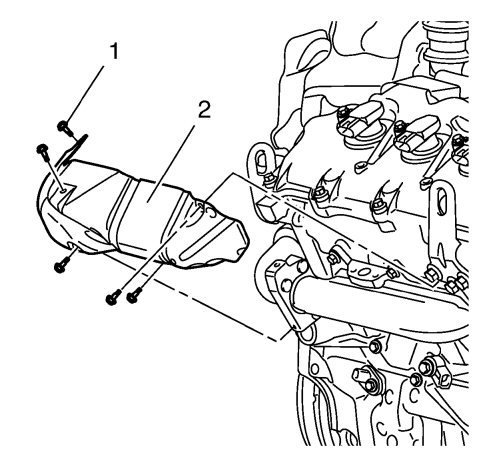

4. Install the exhaust heat shield bank 1 (2).





5. Install the exhaust heat shield's five bolts (1) and tighten to 10 Nm (89 lb in).
