Exhaust Turbocharger Inlet Pipe Installation - Left Side

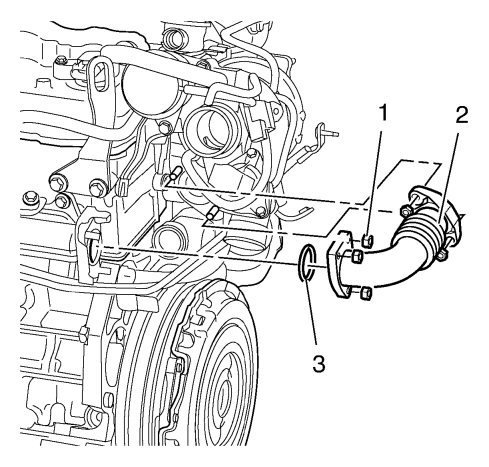

Exhaust Turbocharger Inlet Pipe Installation - Left Side1. Install the NEW turbocharger exhaust pipe gasket (3).
2. Install the exhaust turbocharger inlet pipe bank 2 (2).
3. Refer to Fastener Caution.
Install the 5 turbocharger exhaust pipe nuts (1) and tighten to 30 Nm (22 lb ft).

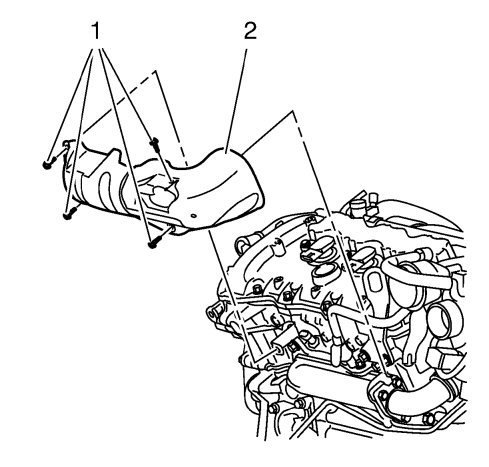

4. Install the exhaust heat shield bank 2-4-6 (2).
5. Refer to Fastener Caution.
Install the exhaust heat shield's four bolts (1) and tighten to 10 Nm (89 lb in).
