Turbocharger Bracket Removal
Turbocharger Bracket Removal
Turbocharger
Bracket Removal

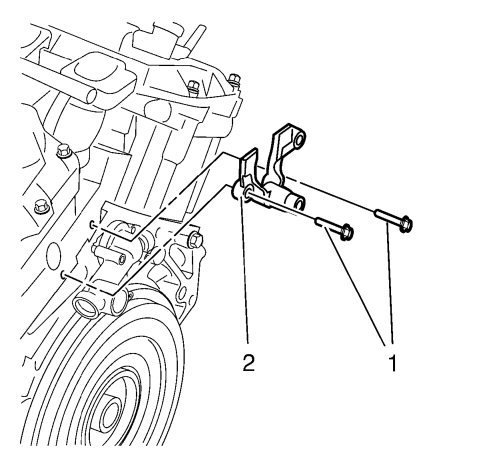

1.
Remove the 2
turbocharger
bracket bolts (1).
2.
Remove the
turbocharger
bracket (2).
