Secondary Air Injection Pipe With Check Valve Removal

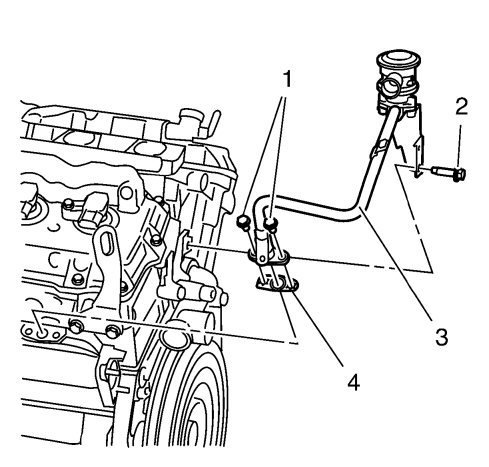

Secondary Air Injection Pipe with Check Valve Removal1. Remove the 2 secondary air injection pipe bolts (1).
2. Remove the secondary air injection check valve bracket bolt (2).
3. Remove the secondary air injection pipe (3).
4. Remove the secondary air injection pipe flange gasket (4).
