Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Moding Schematics

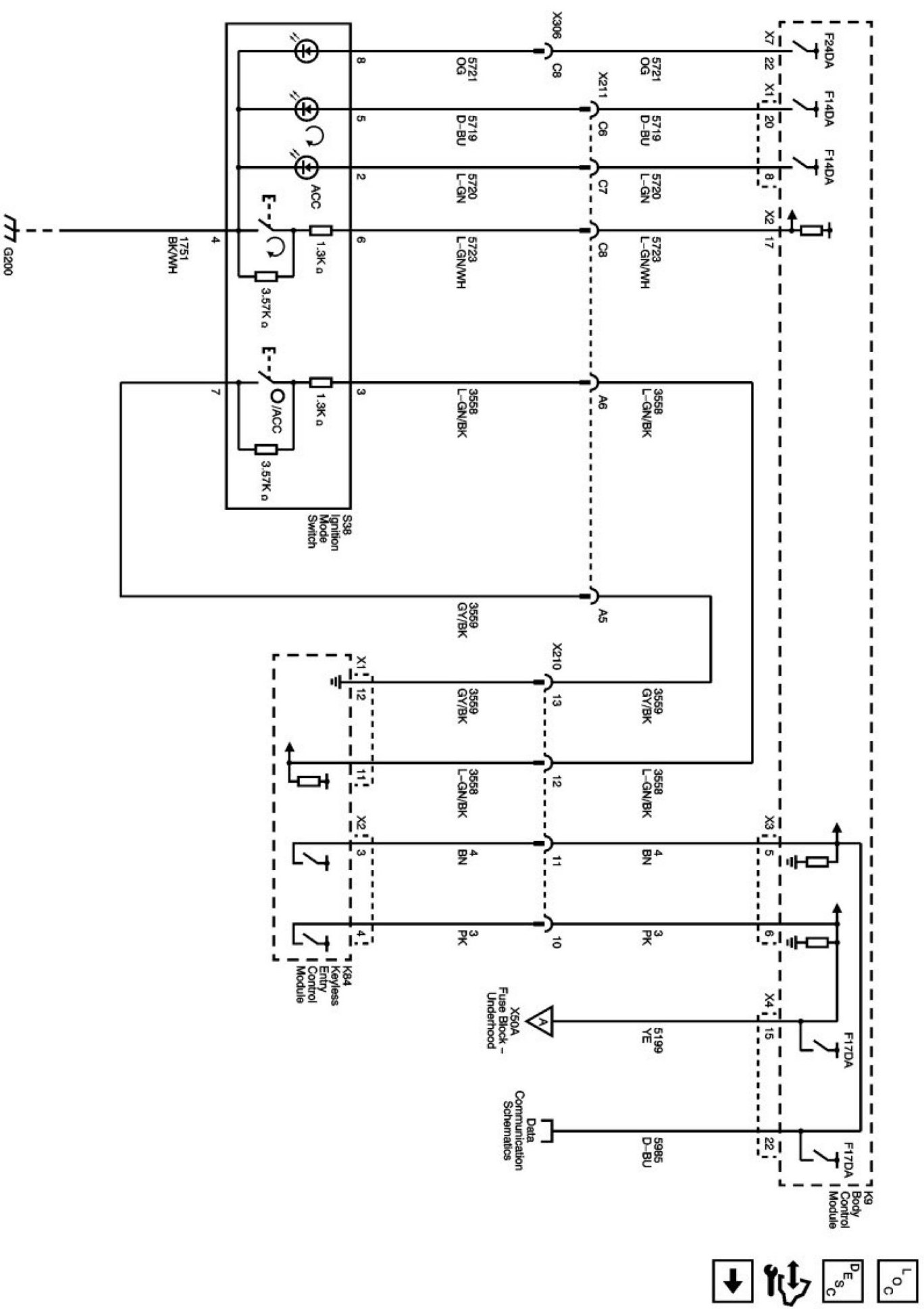

Power Moding Schematics
Power Moding Schematics
Ignition Controls

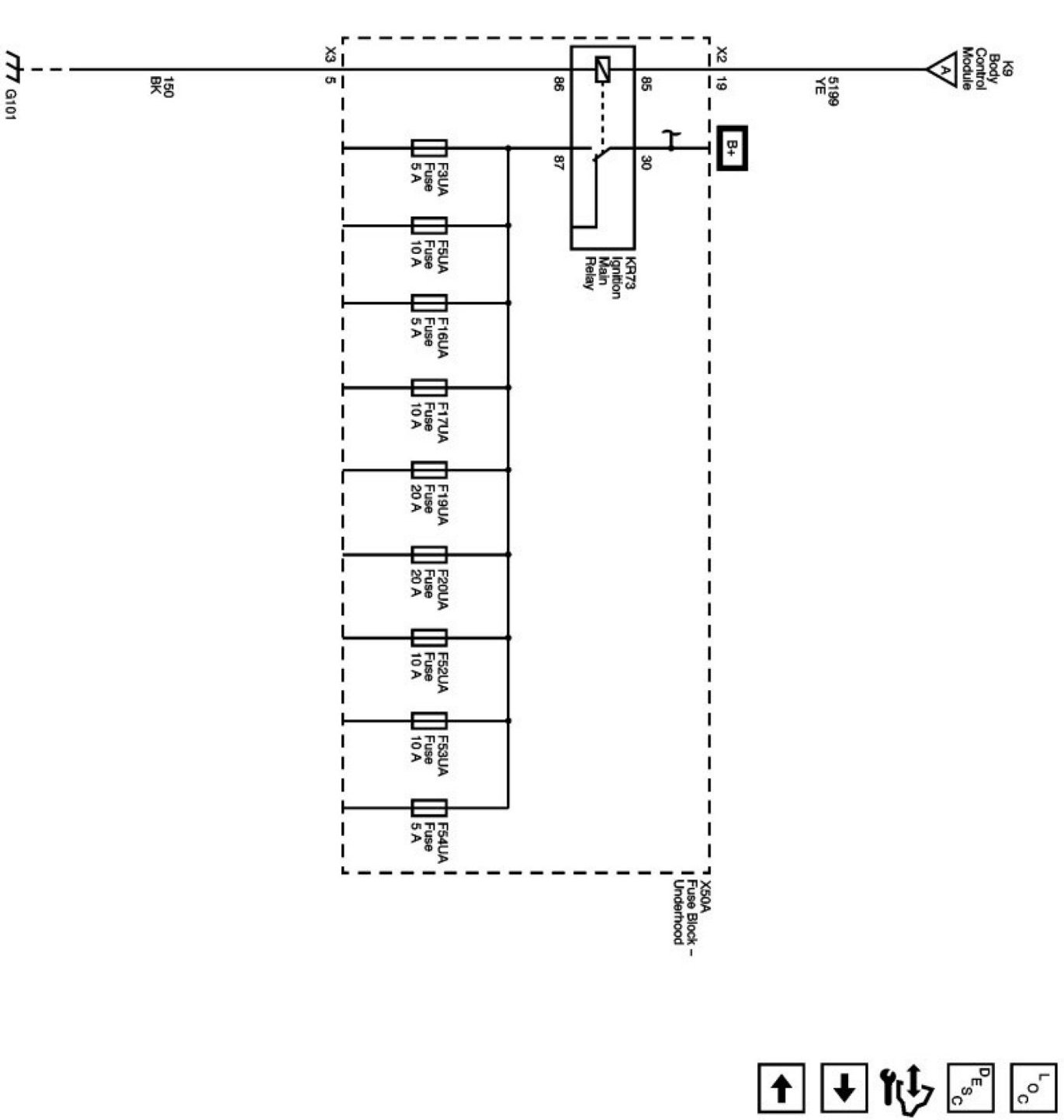

Ignition Main Relay

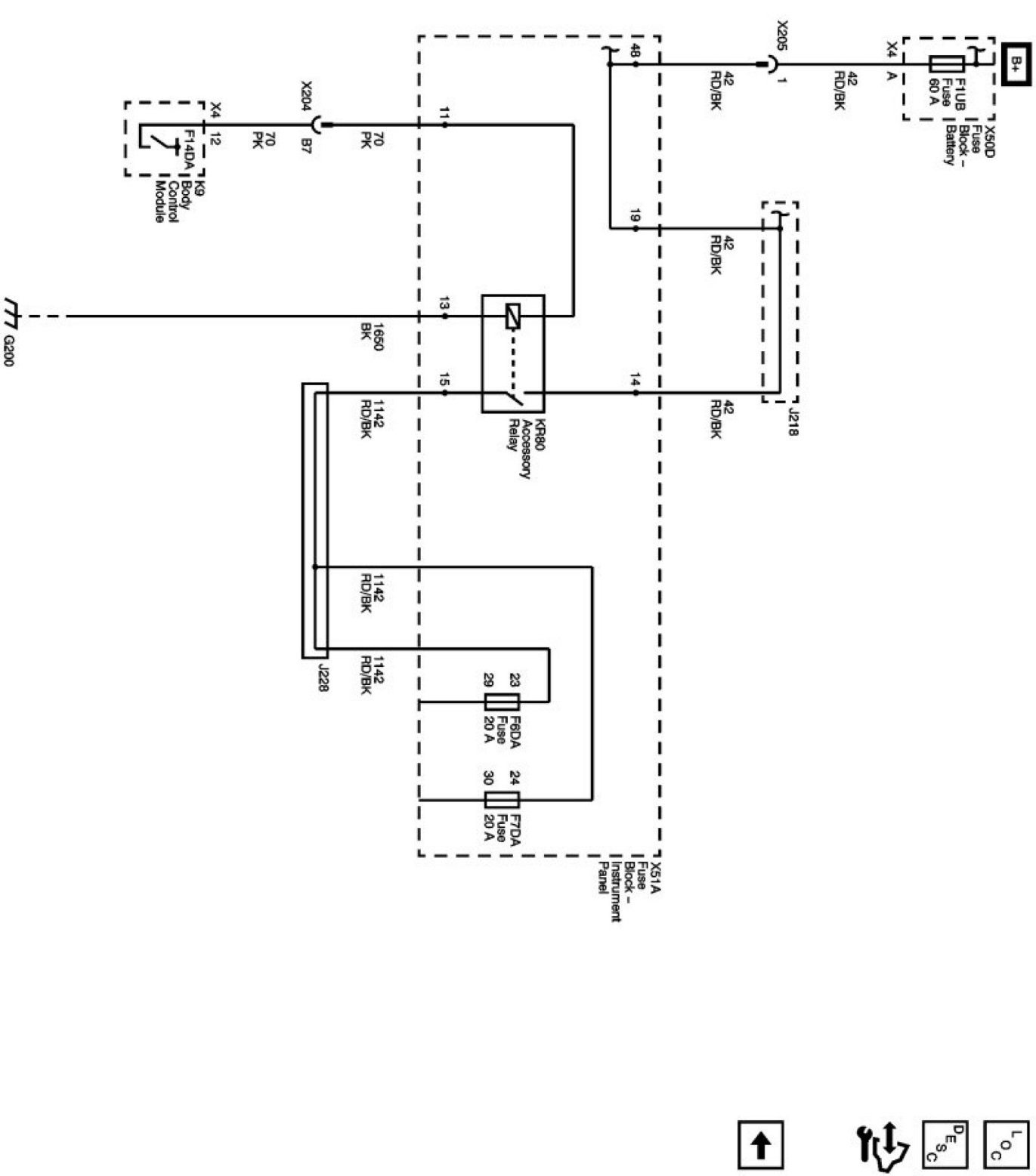

Accessory Relay
