Home >> Saab >> 2011 >> 9-4X XWD V6-2.8L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Heat Shield >> Service and Repair >> Exhaust Manifold Lower Heat Shield Replacement

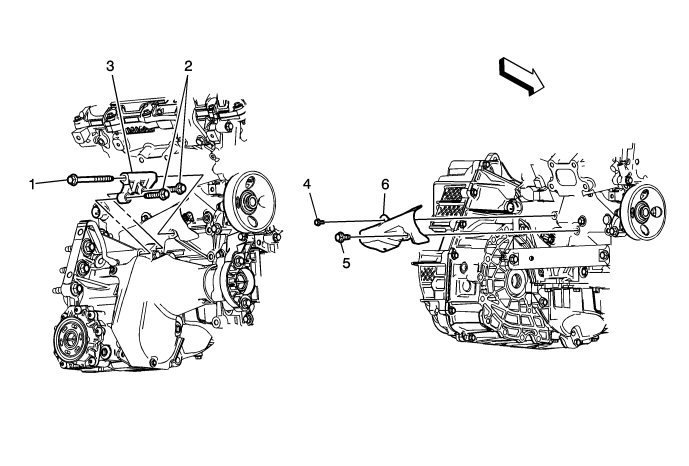

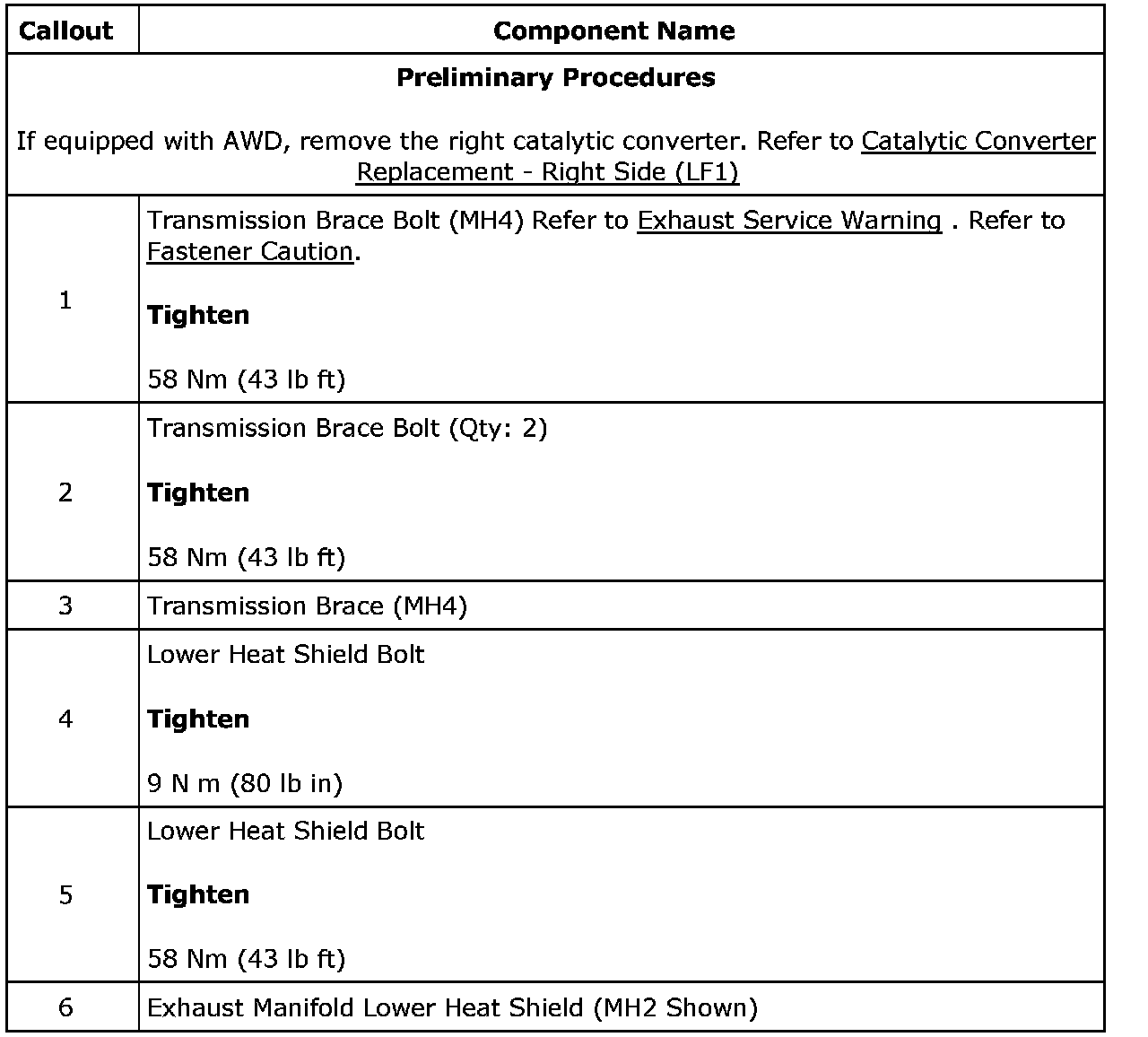

Exhaust Manifold Lower Heat Shield Replacement

Exhaust Manifold Lower Heat Shield Replacement (MH2, MH4, MXE)
