Timing Chain Idler Sprocket Removal - Right Side

Timing Chain Idler Sprocket Removal - Right Side

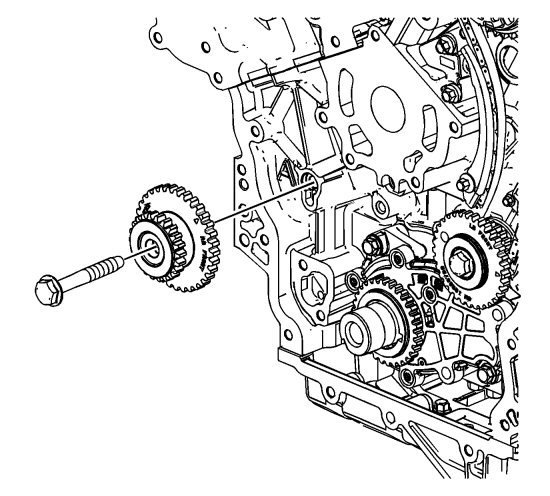

1. Remove the right camshaft intermediate drive chain idler bolt.





2. Remove the right camshaft intermediate drive chain idler.
