Primary Timing Chain Guide Installation - Lower

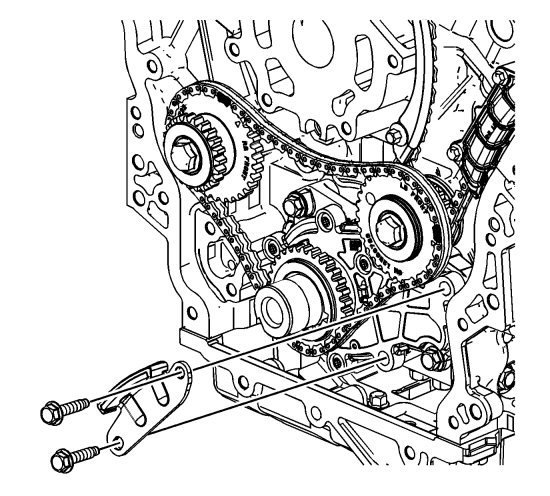

Primary Timing Chain Guide Installation - Lower1. Position the primary camshaft drive chain lower guide to the oil pump.
2. Refer to Fastener Caution.
Install the primary camshaft drive chain lower guide bolts and tighten to 25 Nm (18 lb ft).
