Drive Belt Tensioner Installation - Left Side

Drive Belt Tensioner Installation - Left Side

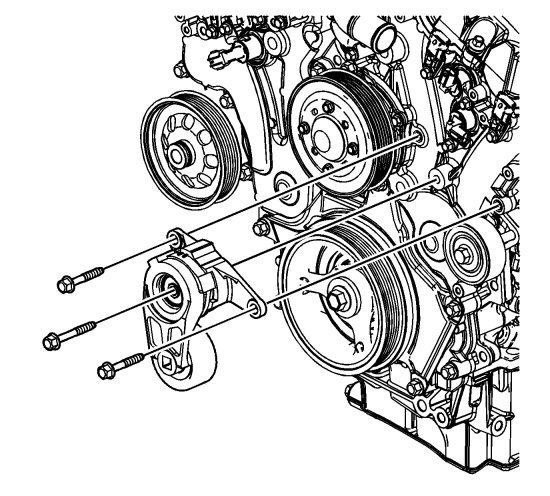

1. Place the left drive belt tensioner assembly in position to the engine front cover.





2. Refer to Fastener Caution.

Install the left drive belt tensioner bracket bolts and tighten to 23 Nm (17 lb ft).
