Camshaft Cover Removal - Left Side

Camshaft Cover Removal - Left Side (LAU or LBW)

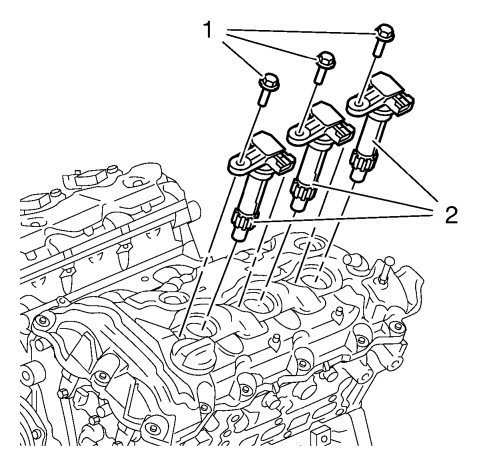

1. Remove the 3 ignition coil bolts (1).





2. Remove the 3 ignition coils (2).

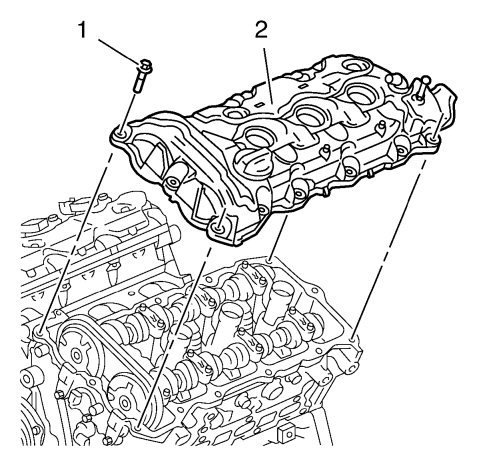

3. Remove the 13 camshaft cover bolts (1).





4. Remove and discard the camshaft cover grommets and camshaft cover bolts if they are serviced with the grommet.
5. Remove the camshaft cover (2) bank 2 from the cylinder head bank 2.
