Trunk / Liftgate
Trunk / Liftgate

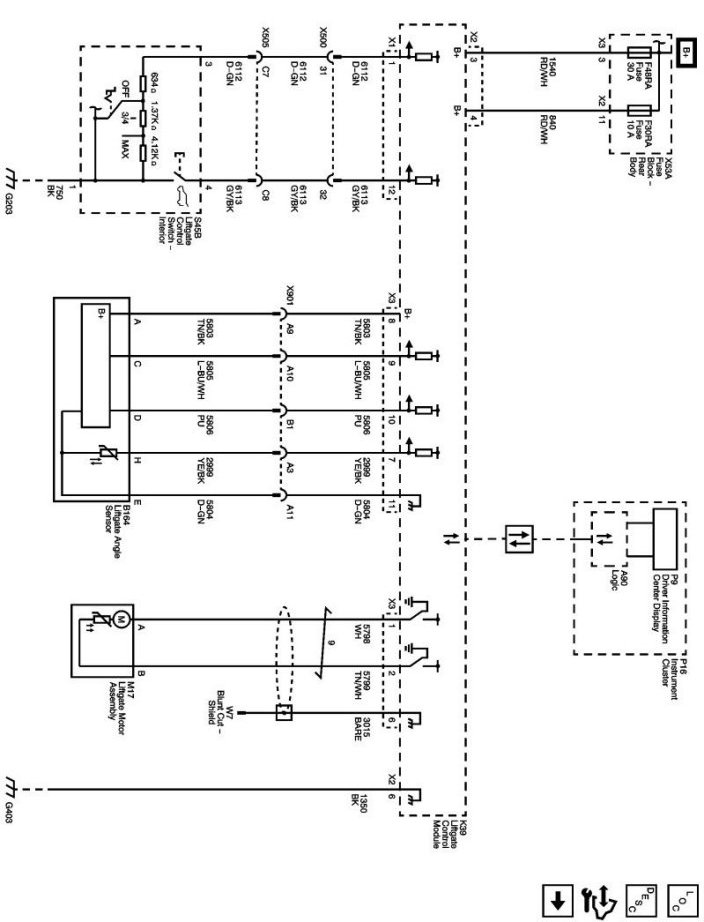

Liftgate Schematics
Module Power, Ground, Serial Data, and Front Switch (TB5)
Motor and Controls (TB5)
