Disc Brake Dust / Mud Shield: Service and Repair

Front Brake Shield Replacement

Removal Procedure

Refer to Brake Dust Warning.

1. Remove the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement.

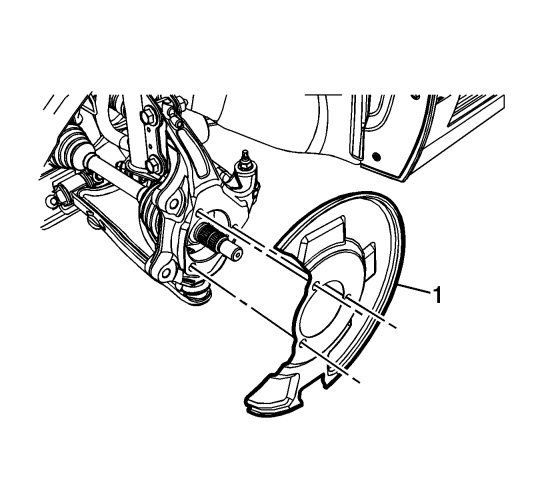

2. Remove the front brake shield (1).
3. Clean the front brake shield and steering knuckle mating surfaces of any corrosion.

Installation Procedure

1. Install the front brake shield (1).





2. Install the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement.
