Control Assembly, HVAC
Control Assembly, HVAC
Automatic Climate Control (216)
Location: in the centre of the dashboard

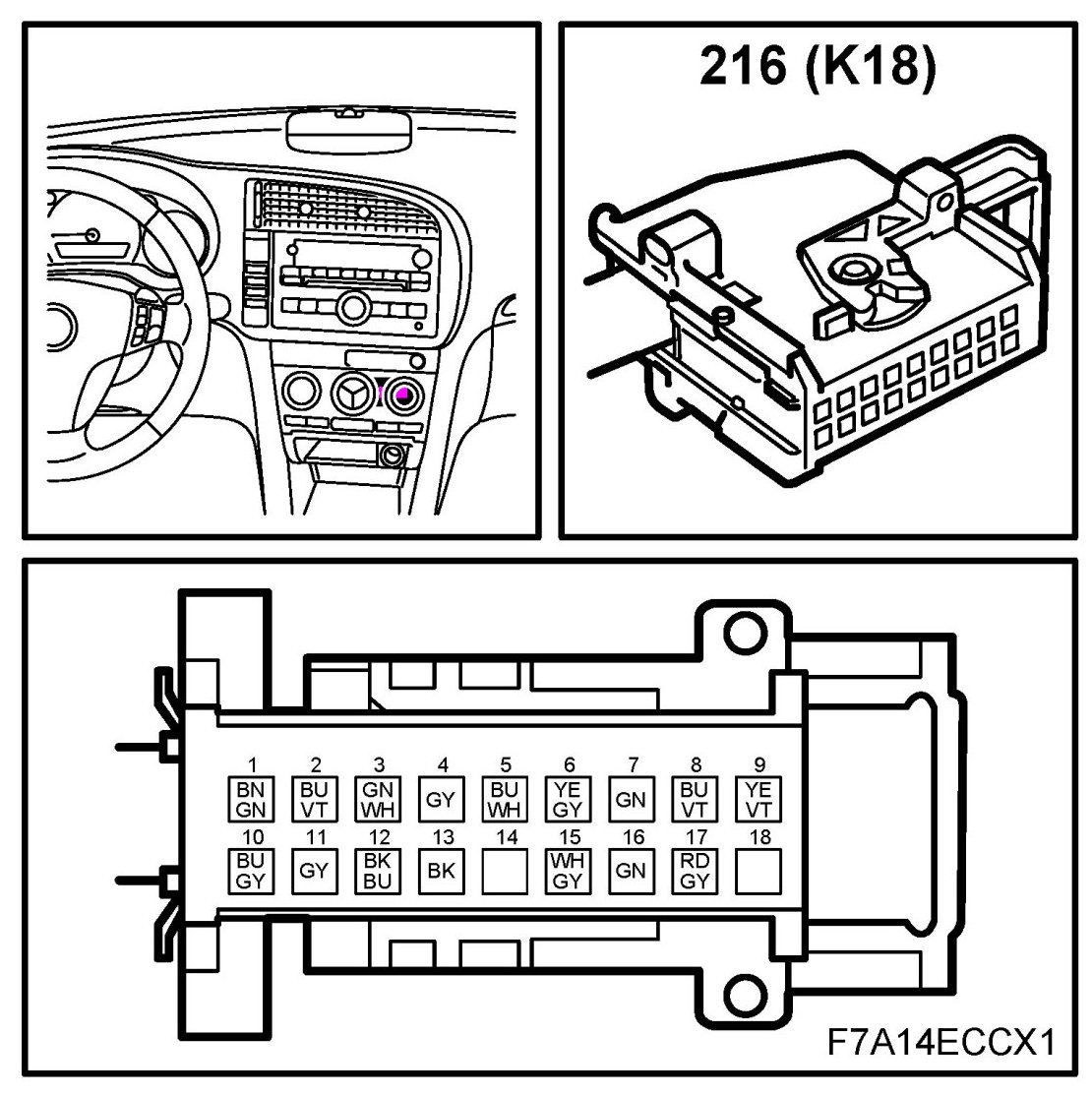

K18

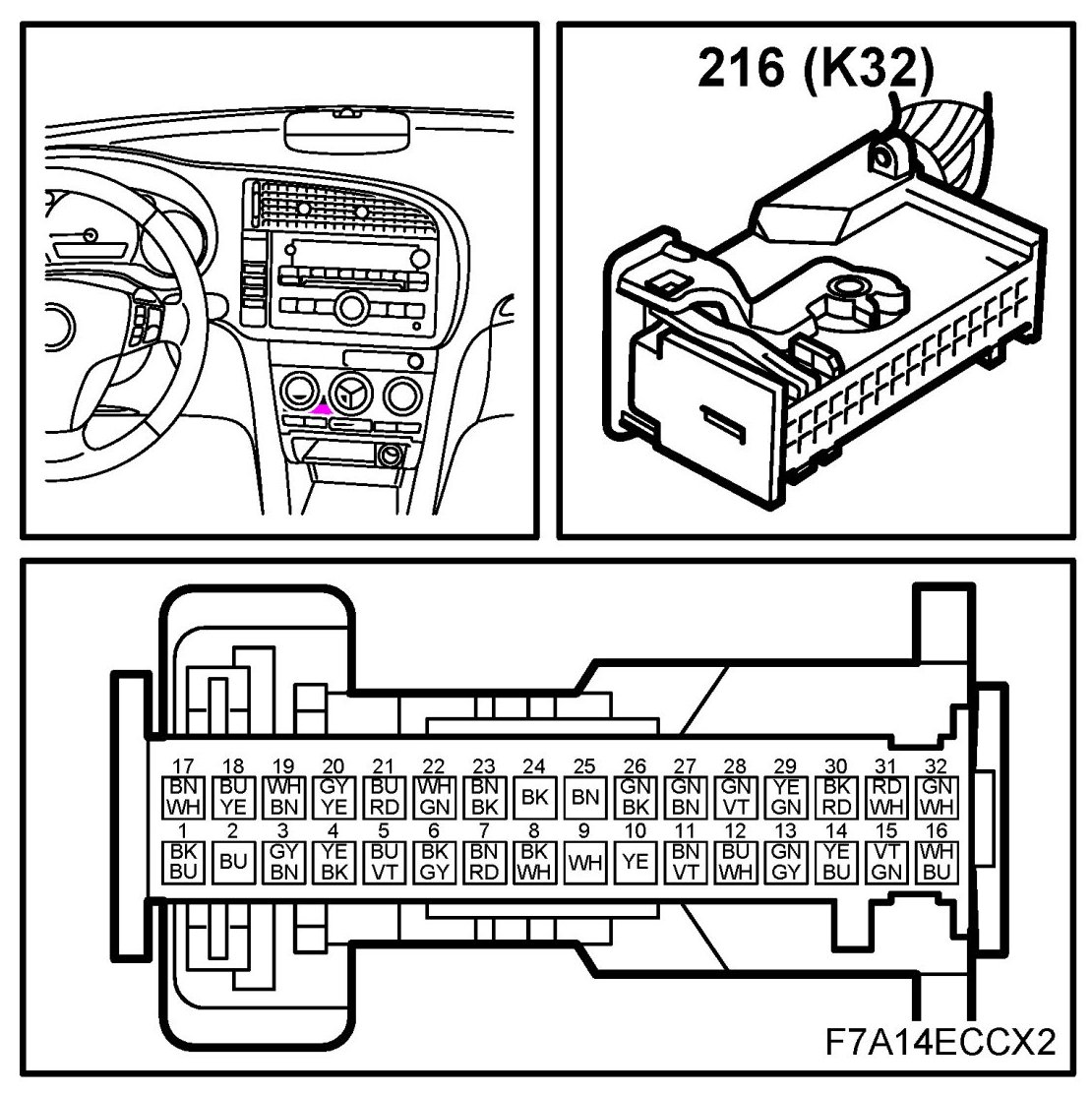

K32
