Washer Nozzles, Windscreen

Washer Nozzles, Windscreen

To remove
1. Remove Insulation, bonnet.
2. Remove the hoses.

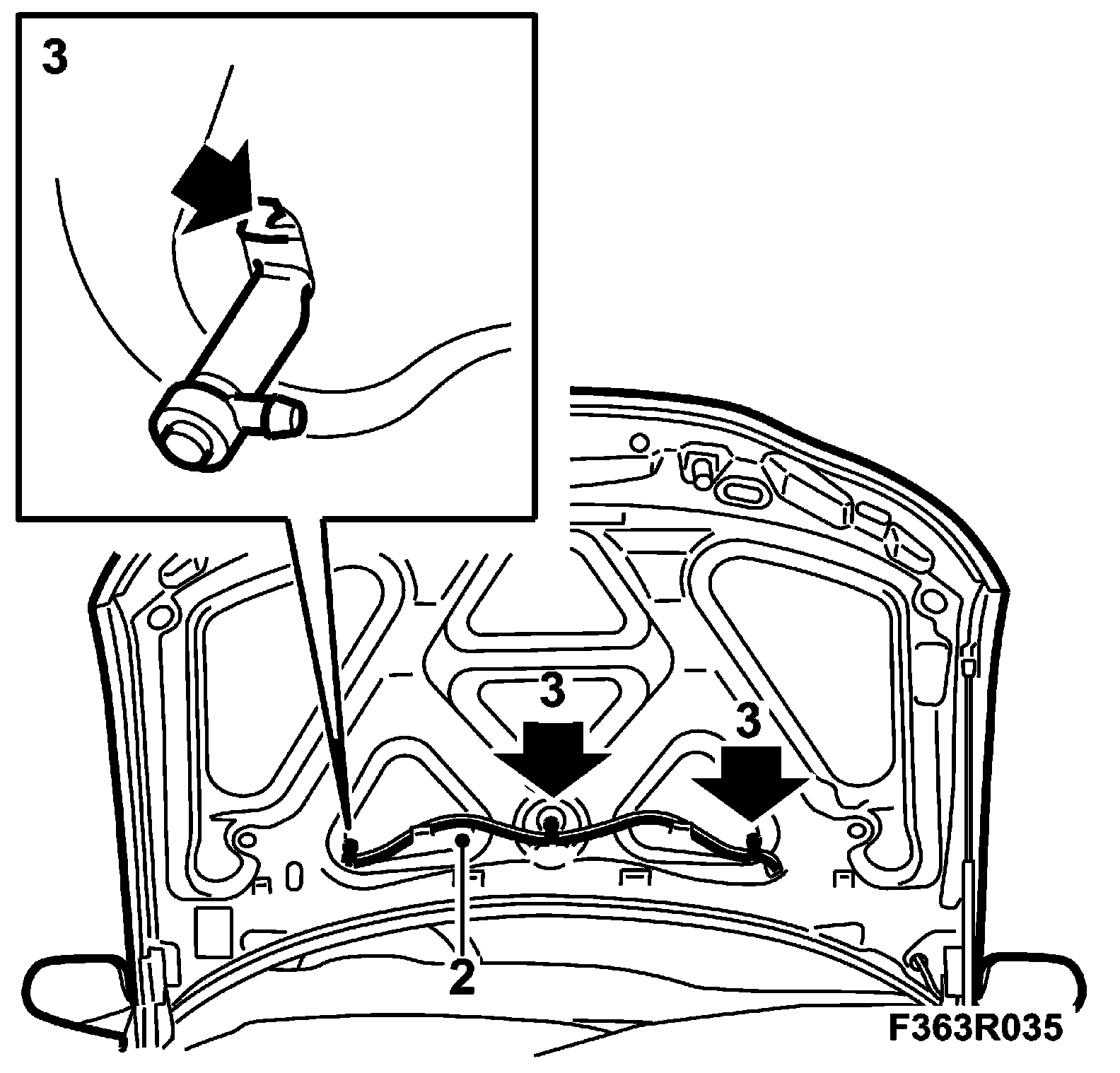

3. Push in the clip and pull out the washer nozzle.

To fit

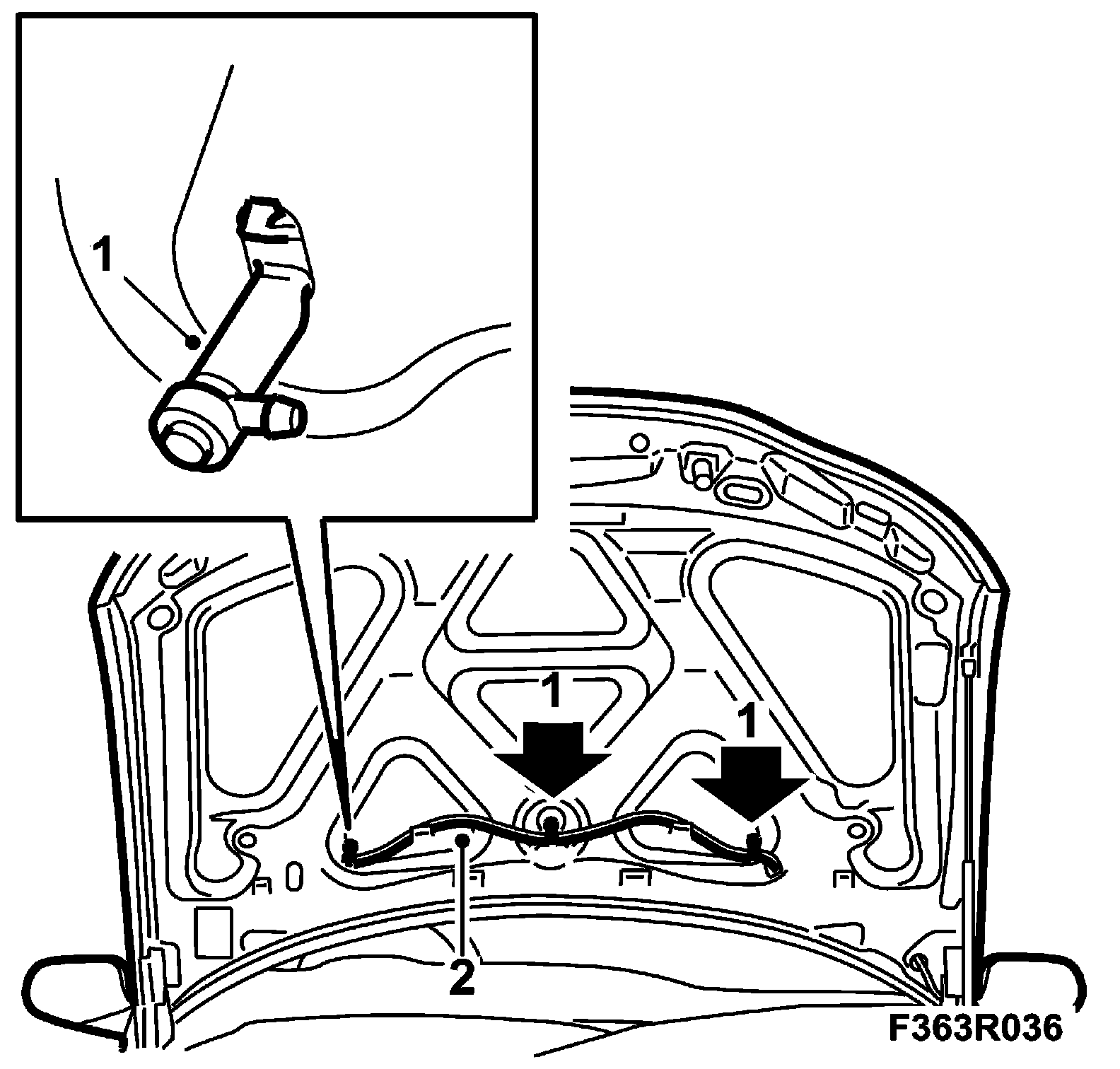

1. Fit the washer nozzle.





2. Fit the hoses.
3. Fit Insulation, bonnet.
