Driver Plate, B284

Driver plate, B284

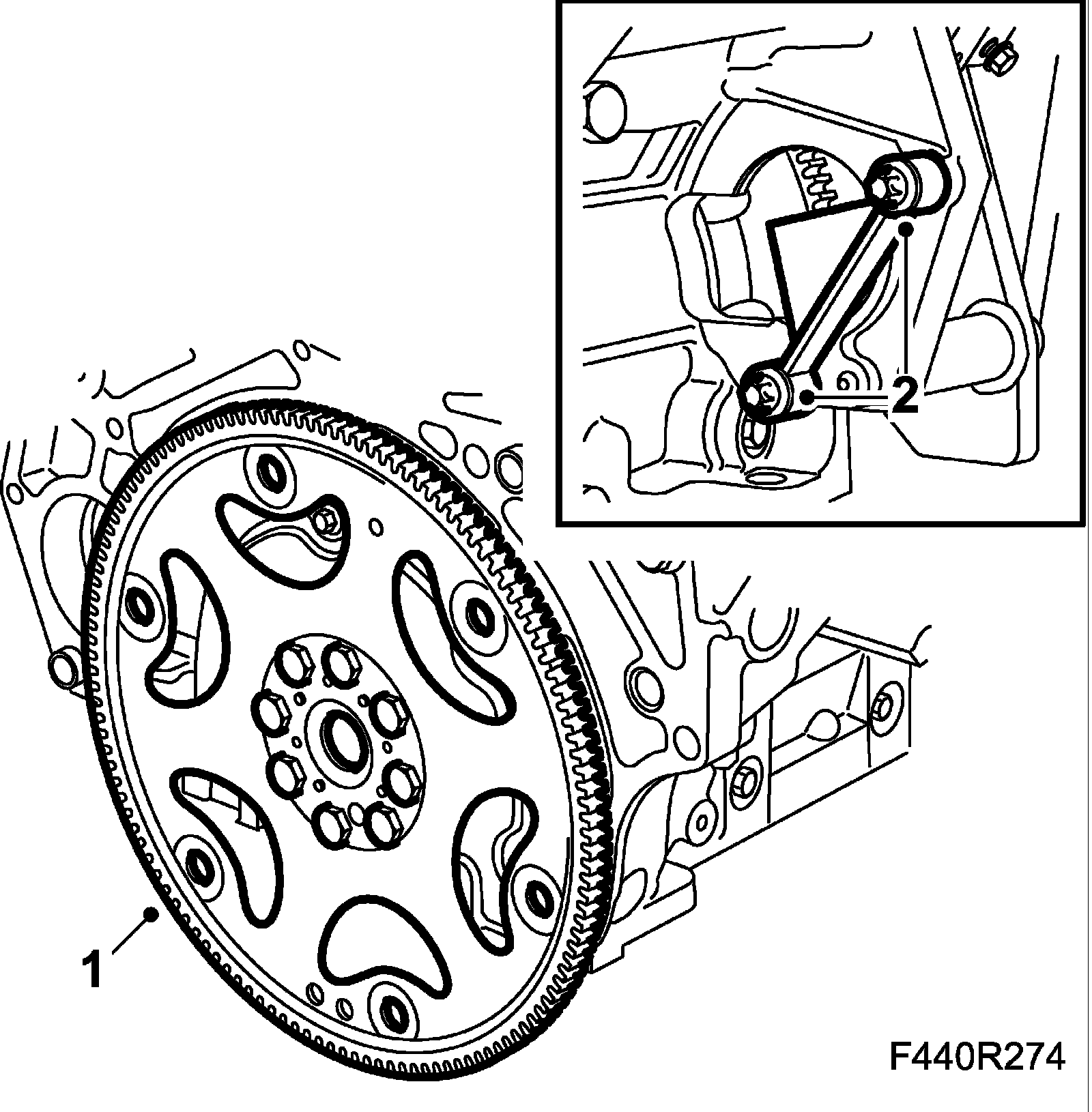

To remove
1. Remove Gearbox assembly B284
2. Fit a EN-46106 Flywheel locking attachment.
3. Remove the driver plate

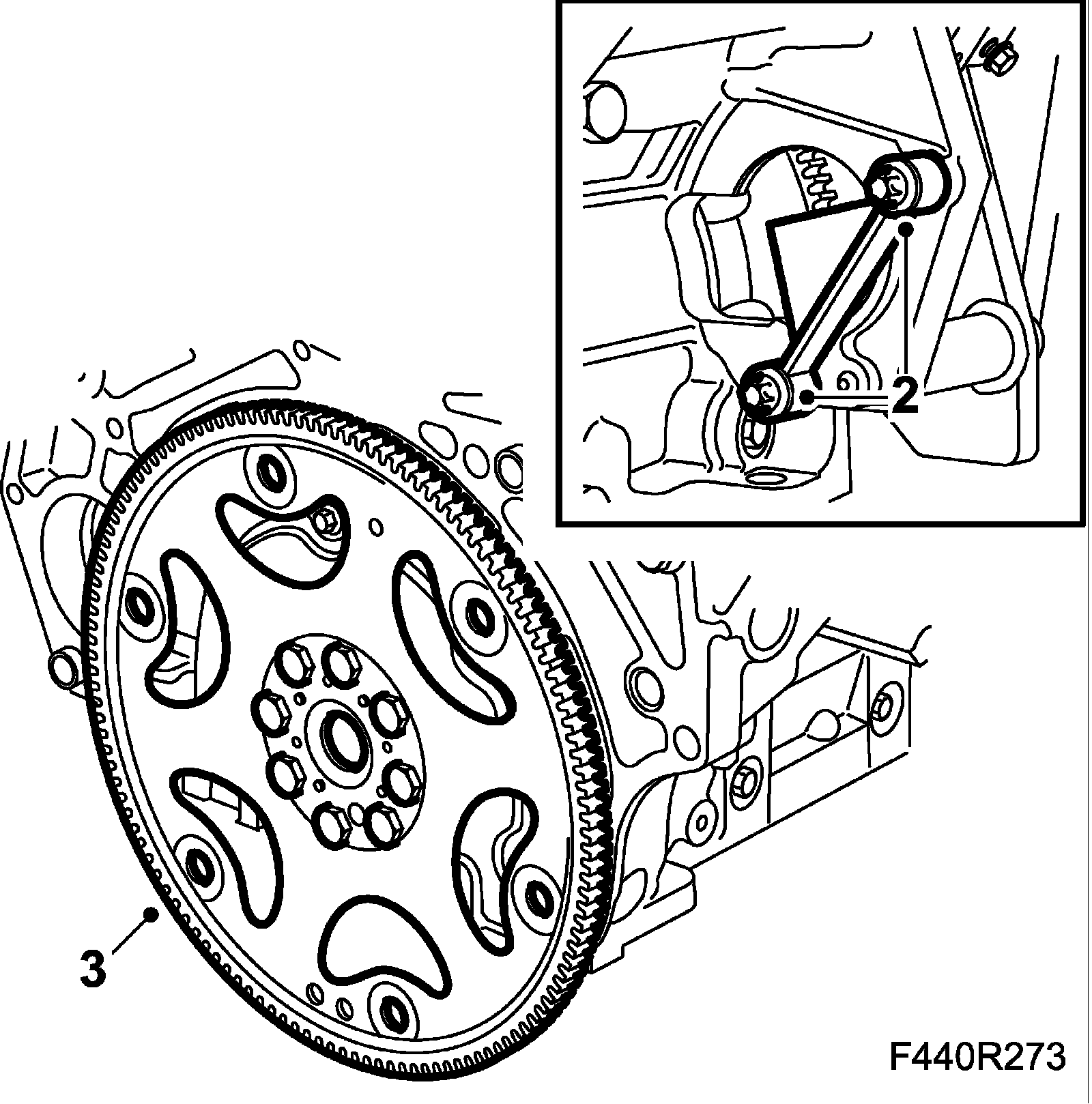

To fit
1. Fit the driver plate with new ready-glued bolts.

Tightening torque: 30 Nm +45° (22 ft. lbs. +45°)





2. Remove the flywheel locking attachment.
3. Fit Gearbox assembly B284.
