Anti-Roll Bar Link, 4WD
Anti-roll bar link, 4WDTo remove
1. Remove Anti-roll bar, 4WD.

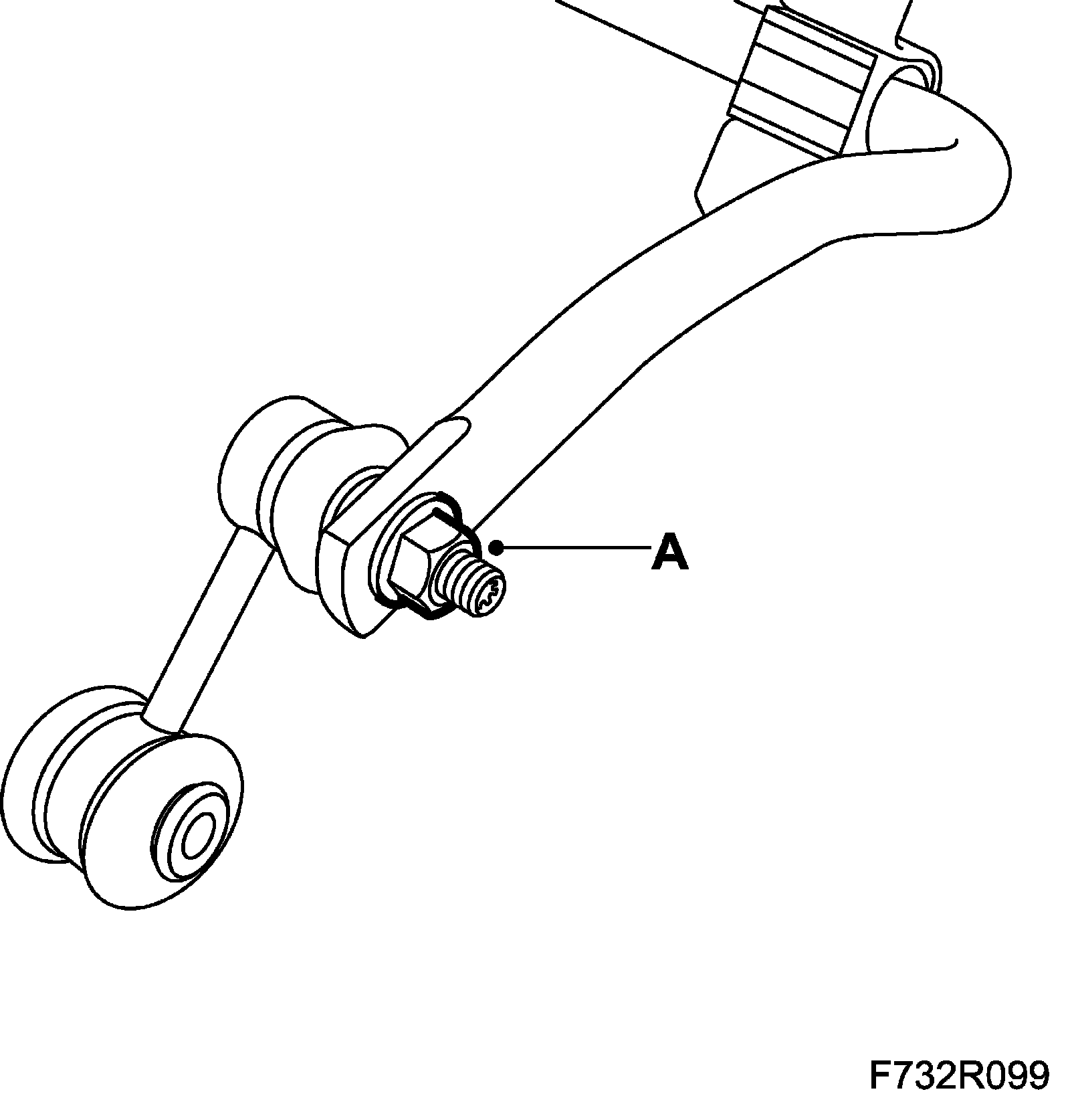

2. Remove the links (A).
To fit
1. Fit the links (A).
Tightening torque 30 Nm (22 ft. lbs.)
2. Fit Anti-roll bar, 4WD.
To remove
1. Remove Anti-roll bar, 4WD.
2. Remove the links (A).
To fit
1. Fit the links (A).
Tightening torque 30 Nm (22 ft. lbs.)
2. Fit Anti-roll bar, 4WD.
