Main Fuse Box 727 For B284, In Engine Bay

Main Fuse Box 727 For B284, In Engine Bay

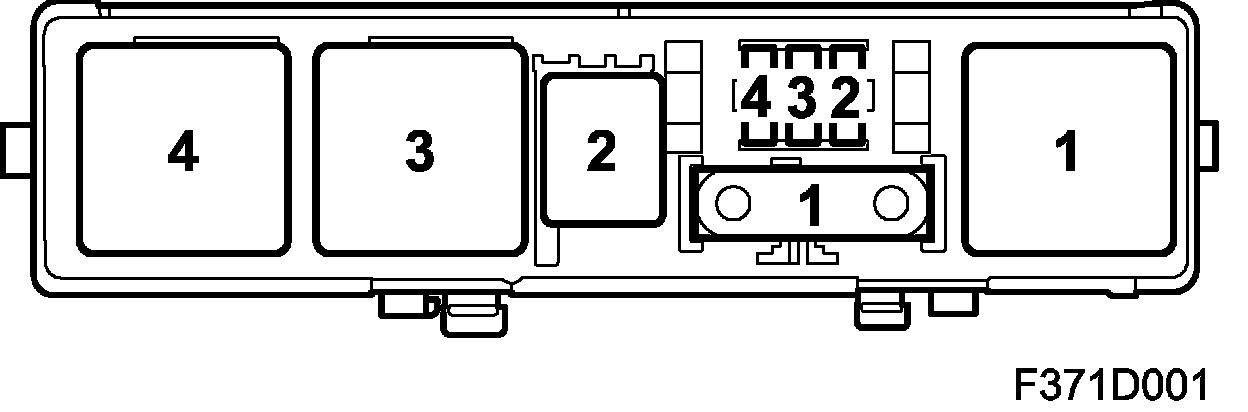

Location
The main fuse box is located in front of the battery

Main task
Main fuse box for the ME9 engine management system except for fuel pump relay 102, which is located in the cabin under the righthand A-pillar.

Type
Main fuse box with relays, maxi and micro fuses.

Connection
The main fuse box is integrated in the engine harness.

Power supply, main fuse box 727

Fuses

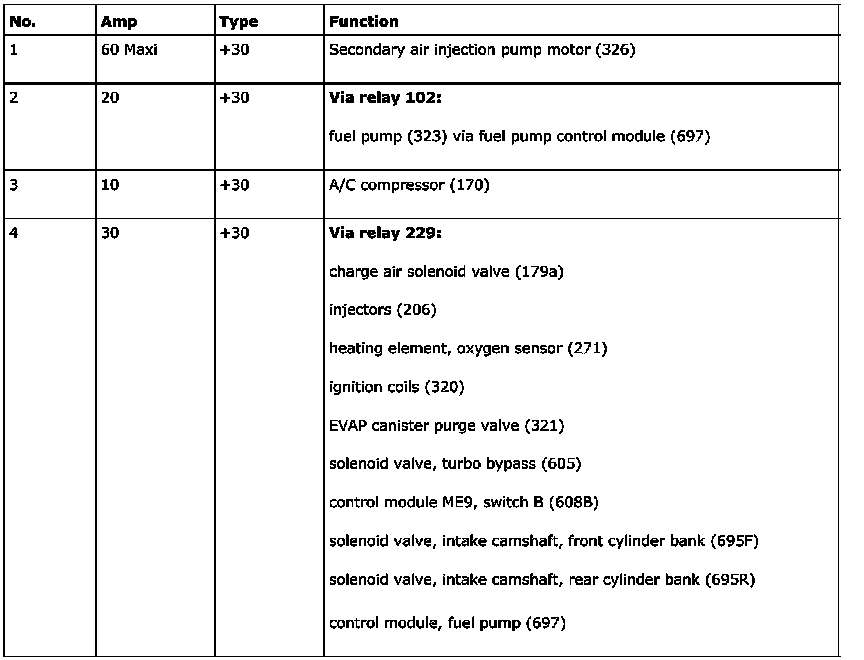

Fuses:

relays

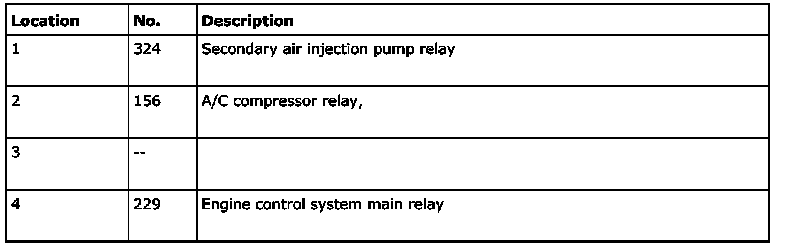

Relays:
