Fuse Holder, Radiator Fans, B284 (748)

Fuse Holder, Radiator Fans, B284 (748)

Location
At the front of the battery cover side

Main task
Fuses for V6 engine radiator fans

Type
Fuse holder for two maxi fuses, blade type.

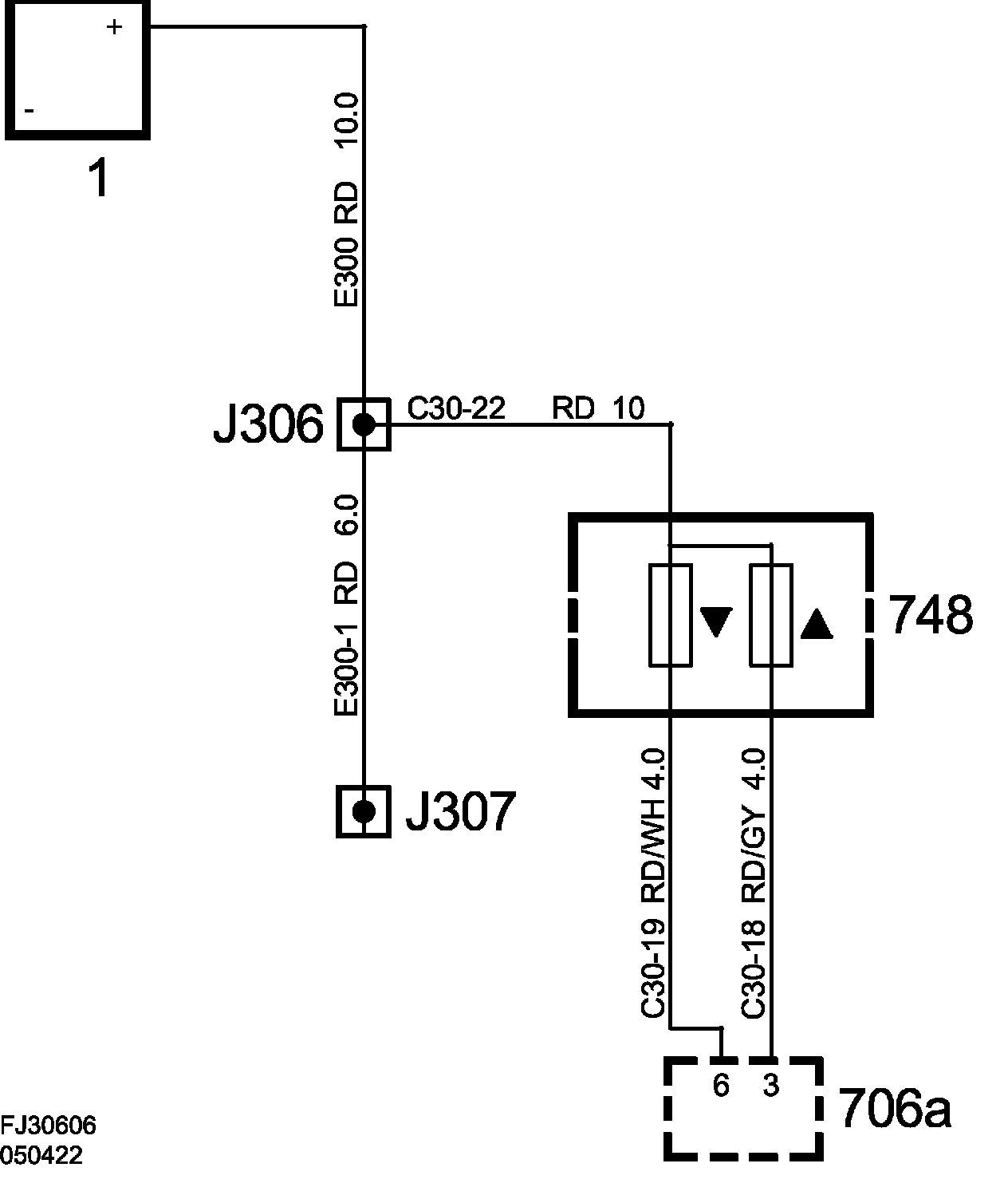

Connection
The fuse holder is integrated in the adapter harness to the engine's wiring harness. The highspeed fan is connected across the upper fuse and the low-speed fan across the lower.

Location Value
Top 40 A
Underside 50A
