Crimp Connection J293, Engine Harness




Location: Approx. 110 mm from branching of engine control module toward front cylinder bank

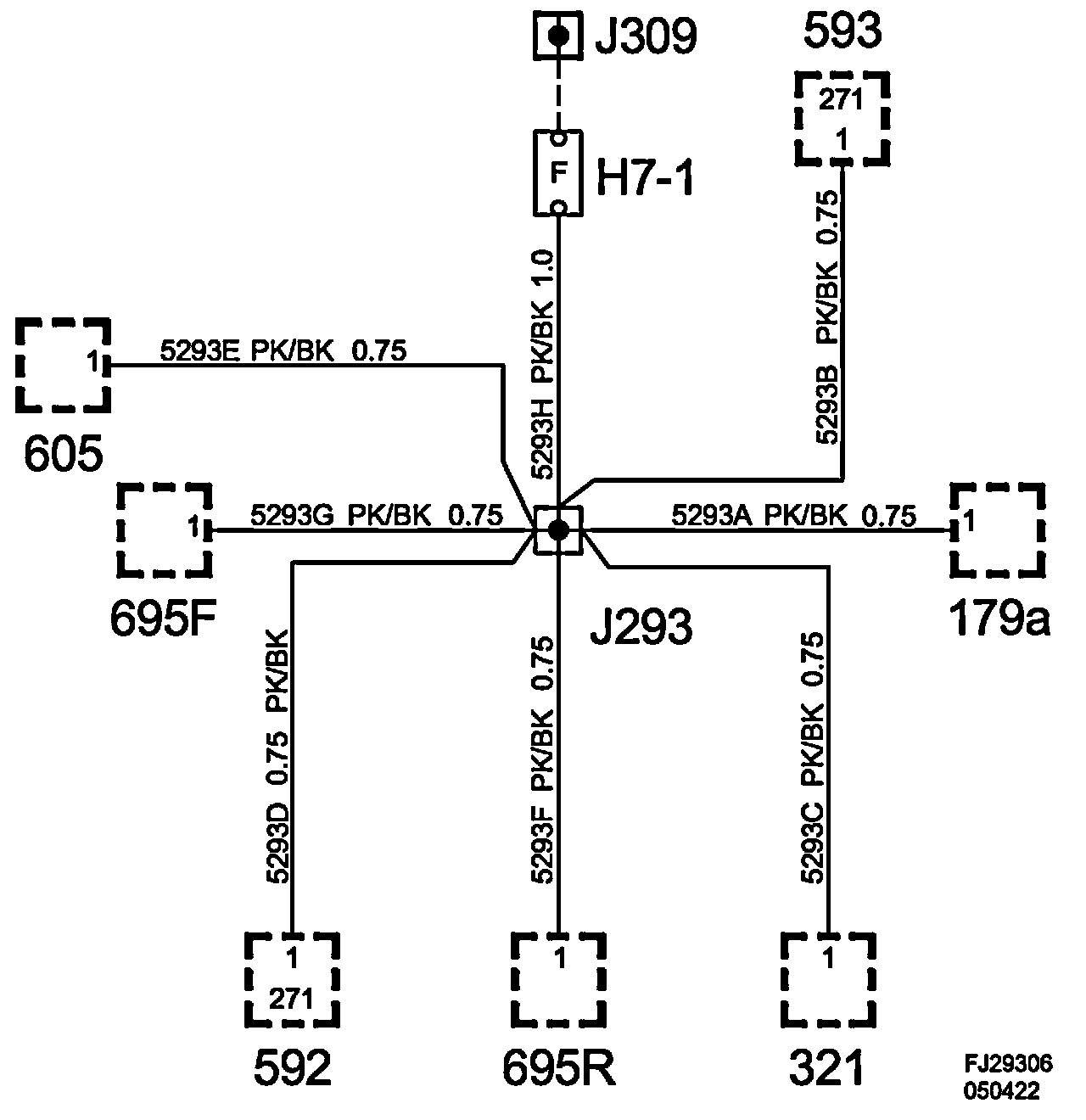

Crimp Connection J293, Engine Harness:

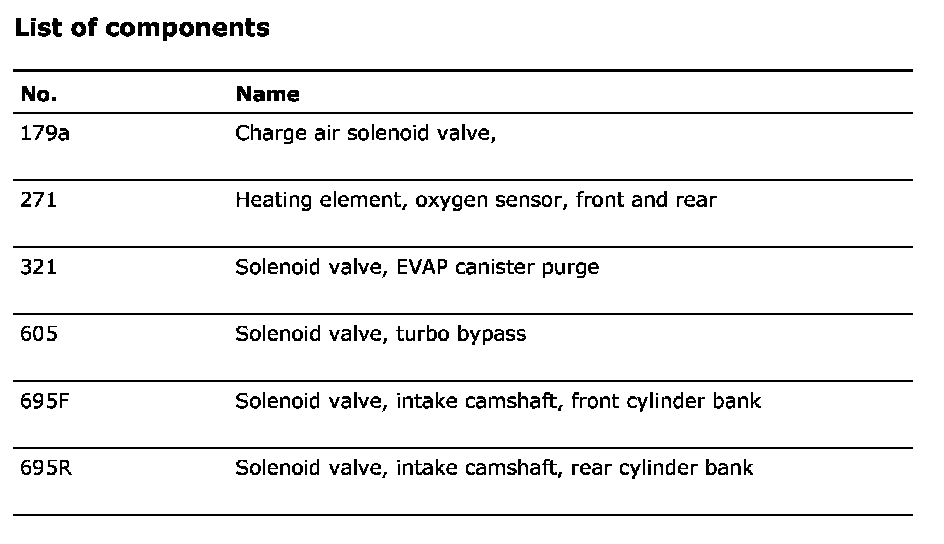

List Of Components:
