Crimp J310, Adapter Harness

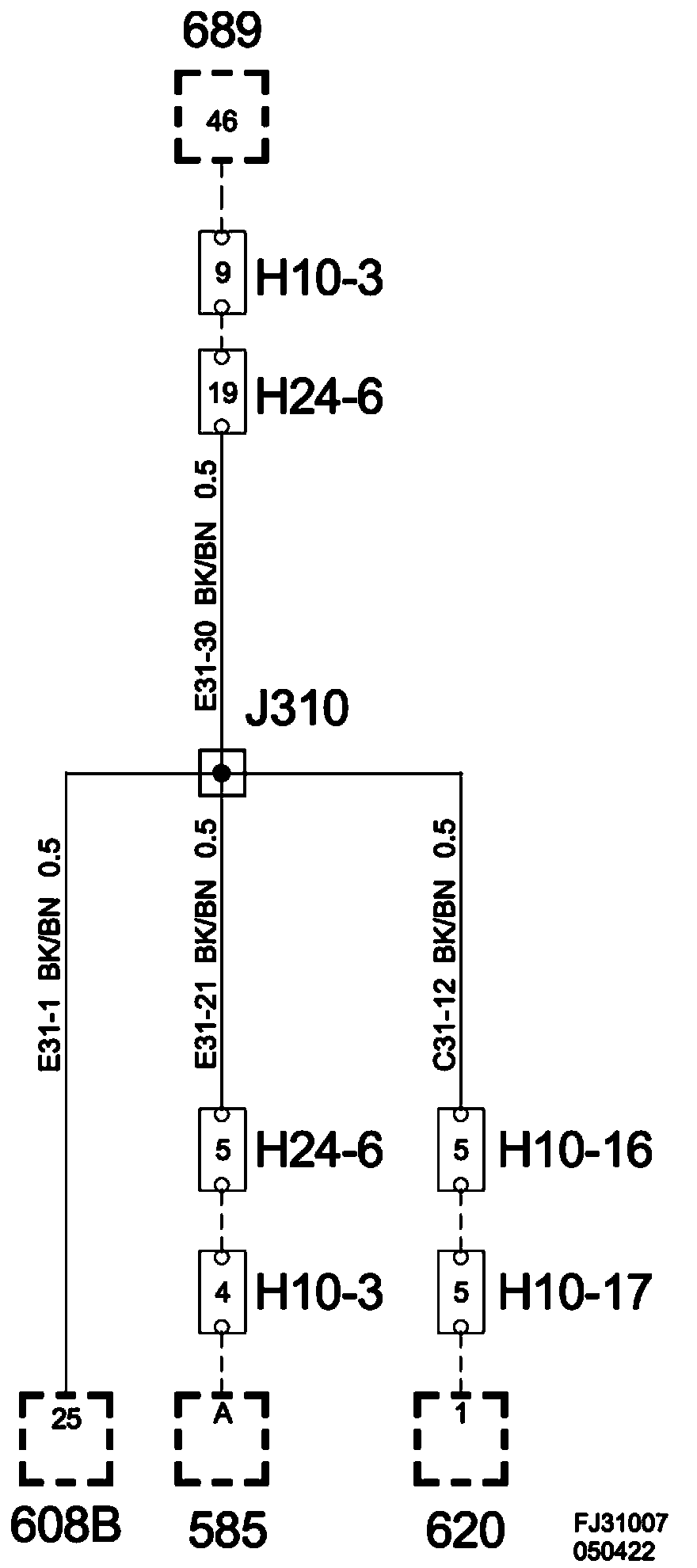

Crimp J310, Adapter Harness ME9:

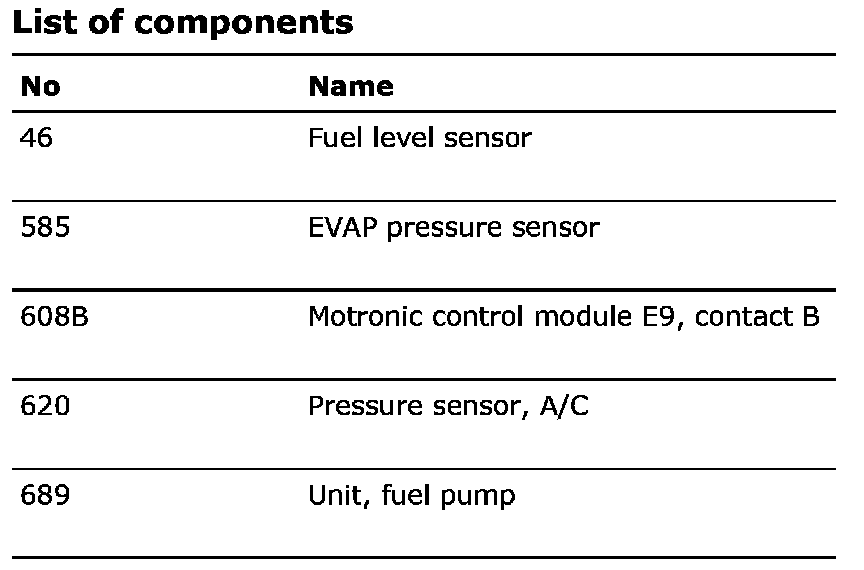

List Of Components:






Location: Approx. 320 mm from branching of battery toward engine control module
