Fuel Level Sensor

Fuel Level Sensor (46), ME9





Main task
Informs ECM on how much fuel is in the tank. ECM then sends this information on the bus.

Type

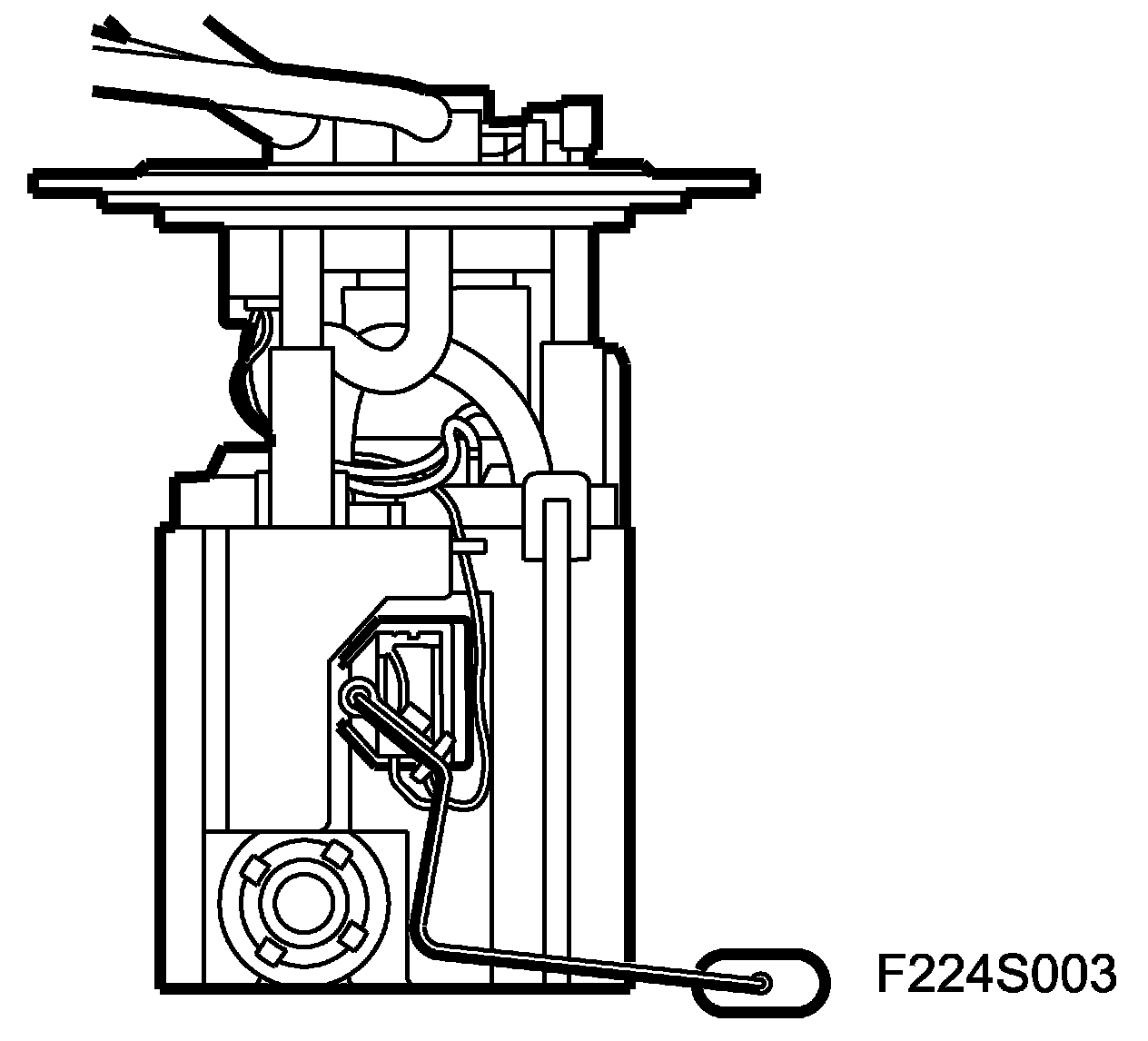

Level sensor with variable resistance, whose value corresponds to the level at which the sensor float lies in the tank. Feed via pull-up in ECM.

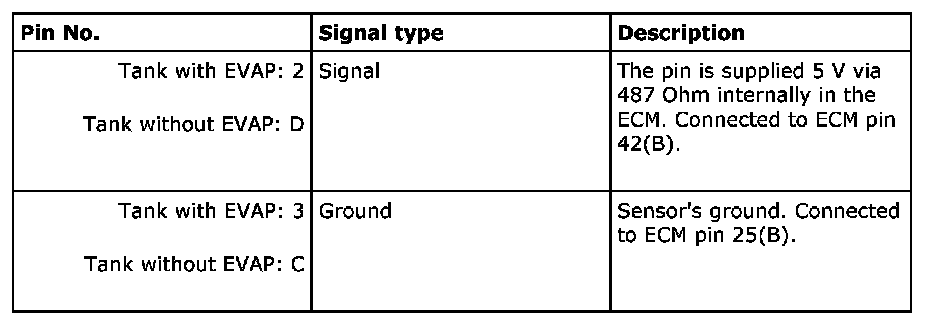

Connection

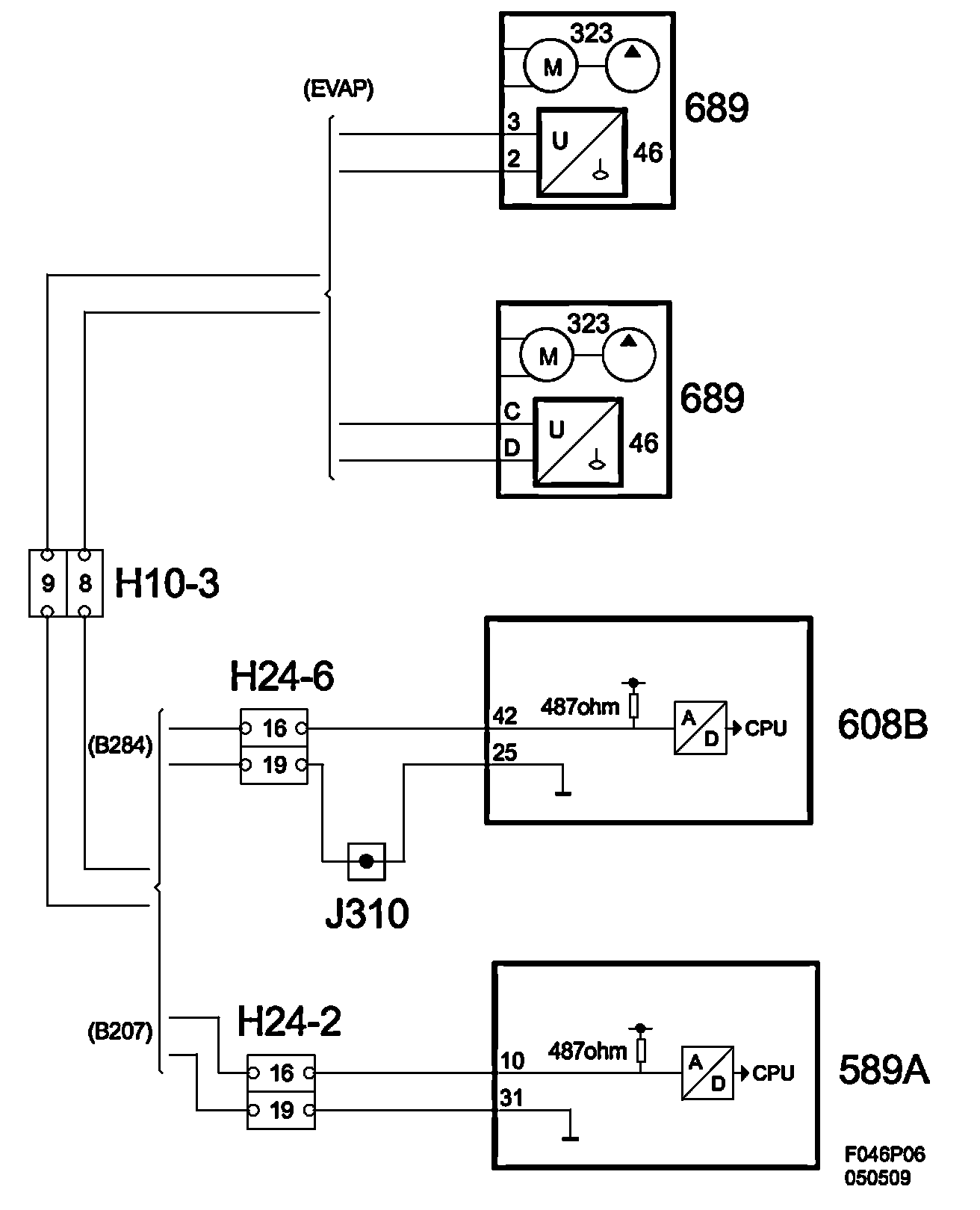

Diagram
