Leak Detection Solenoid: Description and Operation

EVAP Shut-Off Solenoid Valve (588)

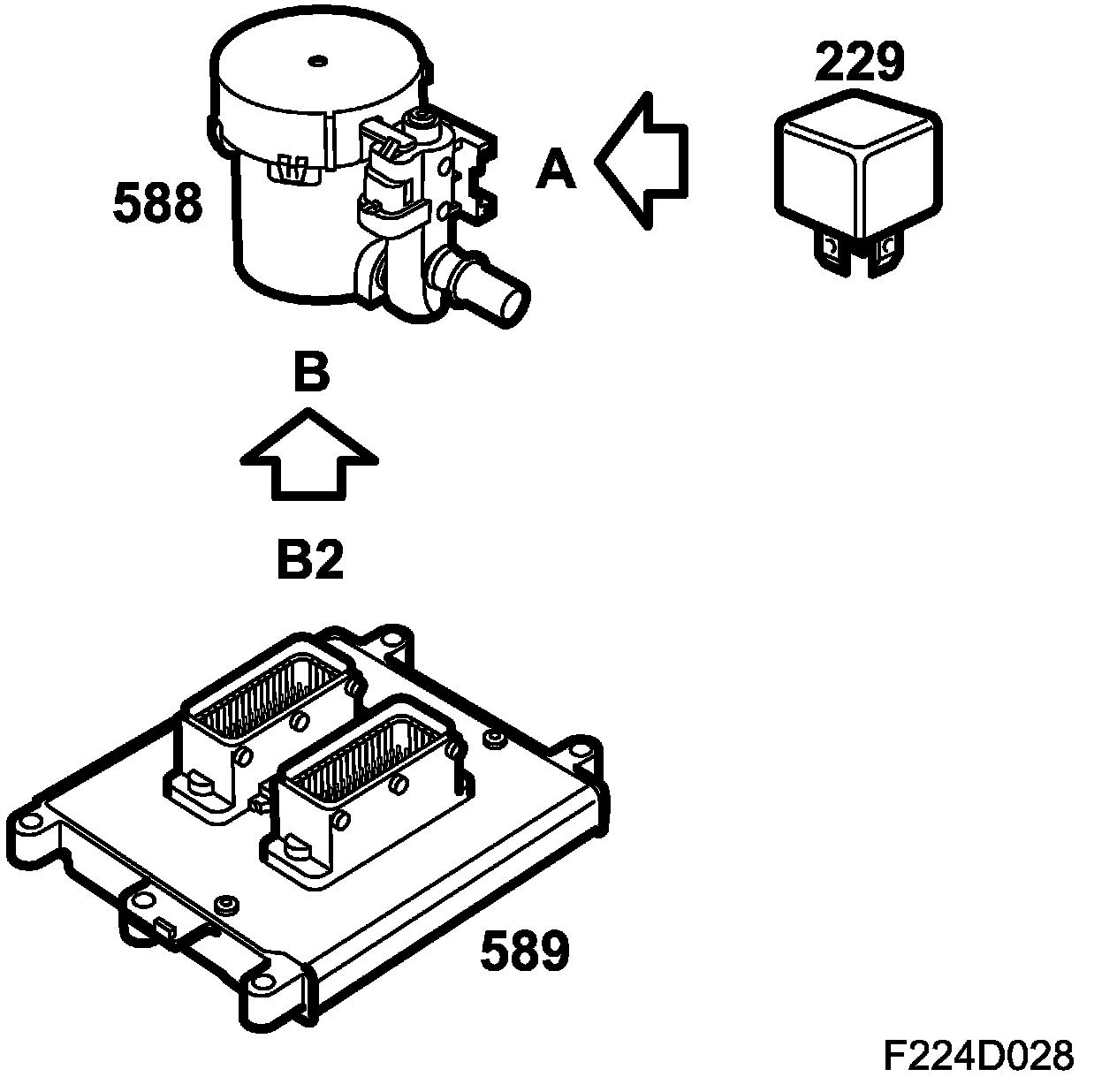

Location
EVAP shut-off solenoid valve (588)

Main task
The shut-off valve is used for onboard diagnostics to detect leakage in the purge system.

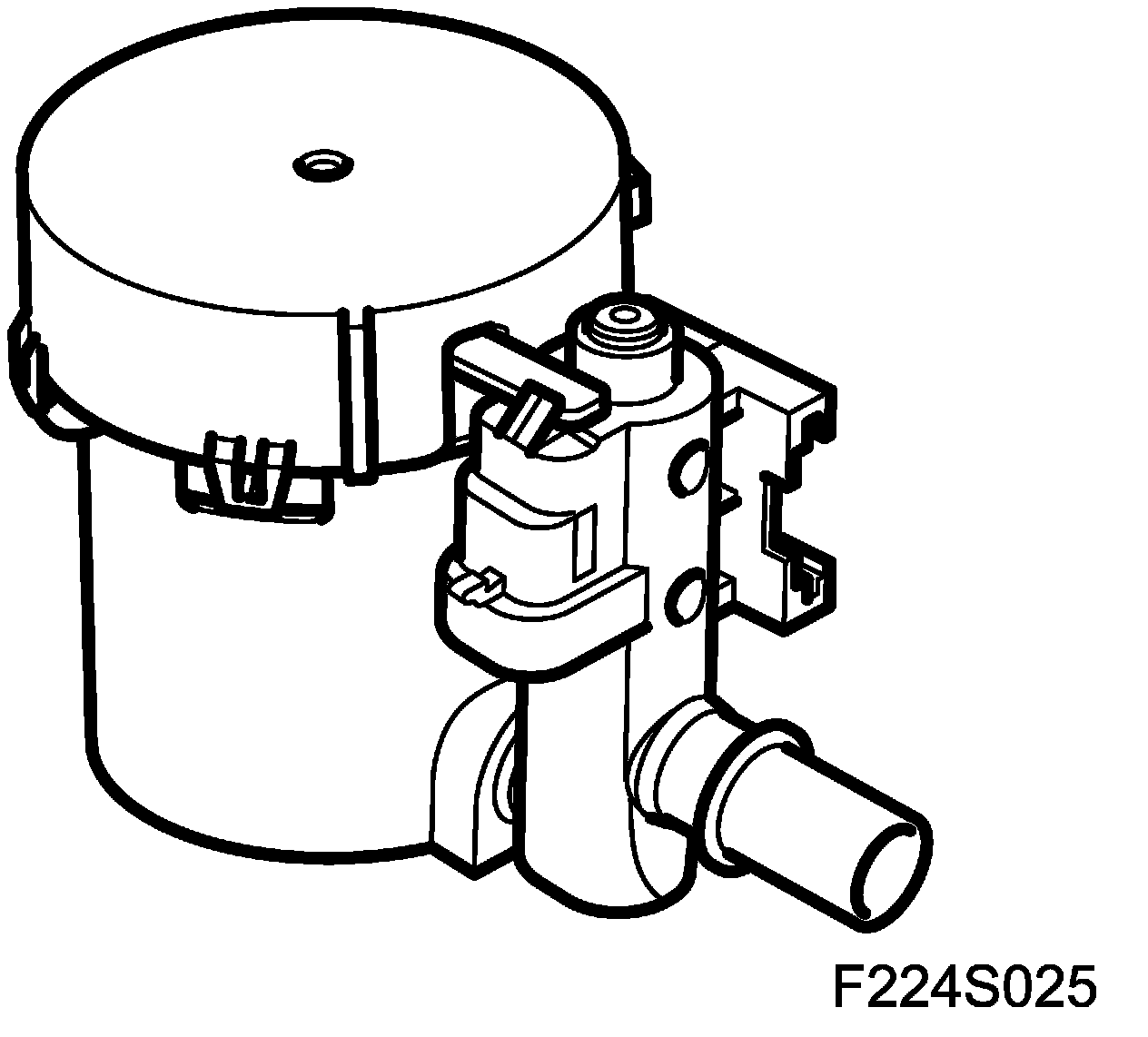

Type

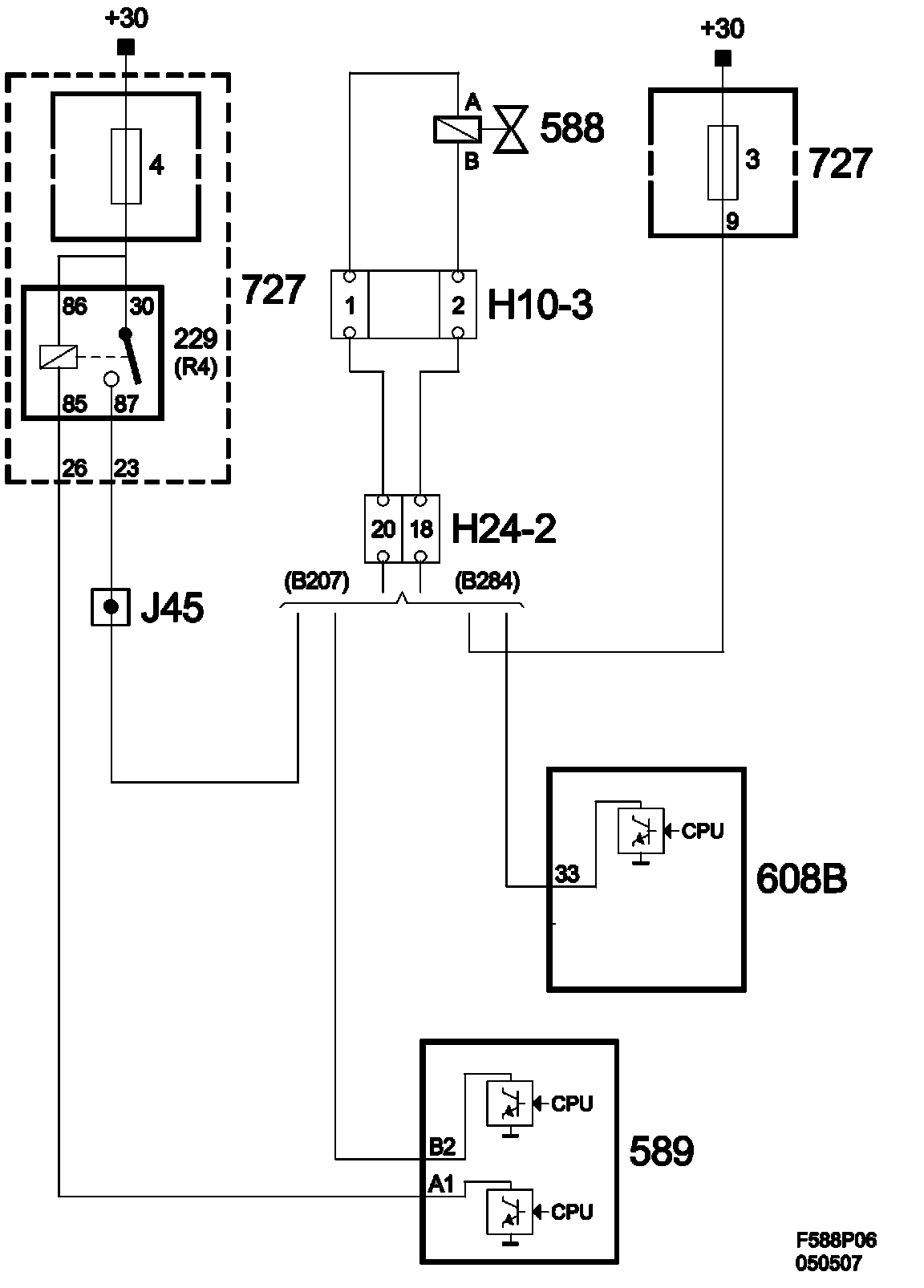

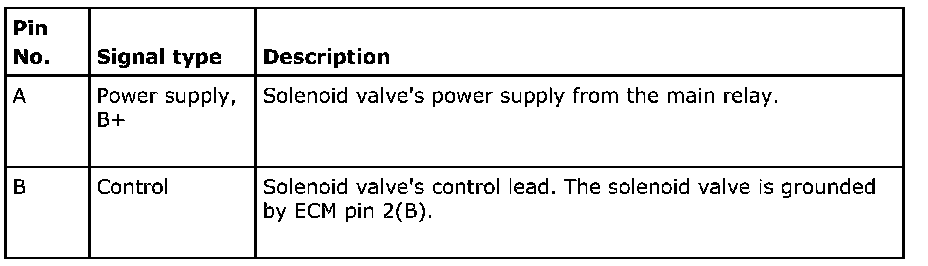

Connection















The shut-off valve is open when there is no power.
