A/C Compressor, Mounting

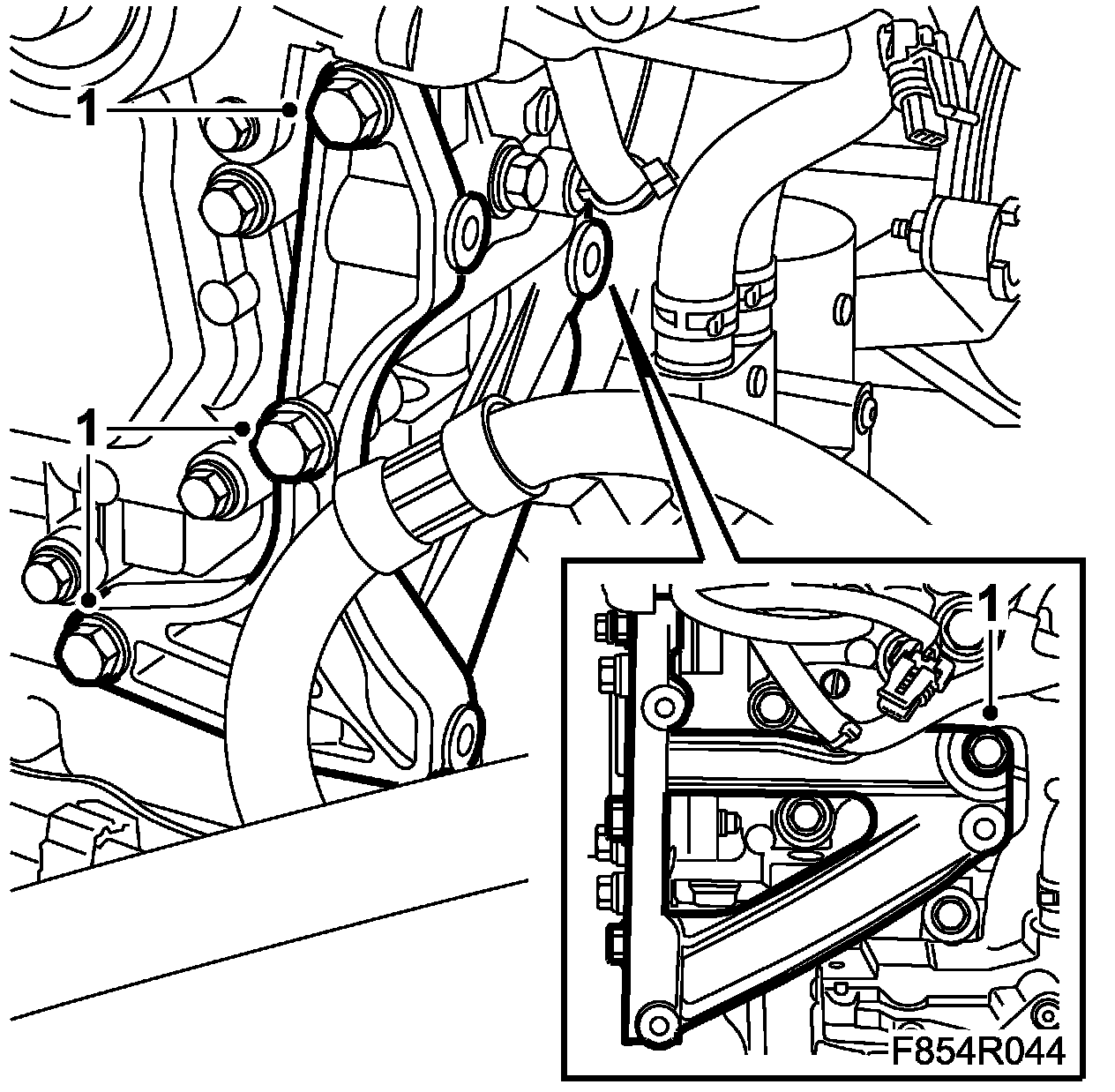

A/C Compressor, Mounting, B284

To remove
1. Remove A/C compressor, B284
2. Remove the mounting.





To fit
1. Fit the mounting.

Tightening torque 38 Nm (28 lbf ft)





2. Fit A/C compressor, B284.
