Right Panel Vent, Air Distribution Flap Stepping Motor

Right Panel Vent, Air Distribution Flap Stepping Motor

To remove
1. Dismantle the glove box.

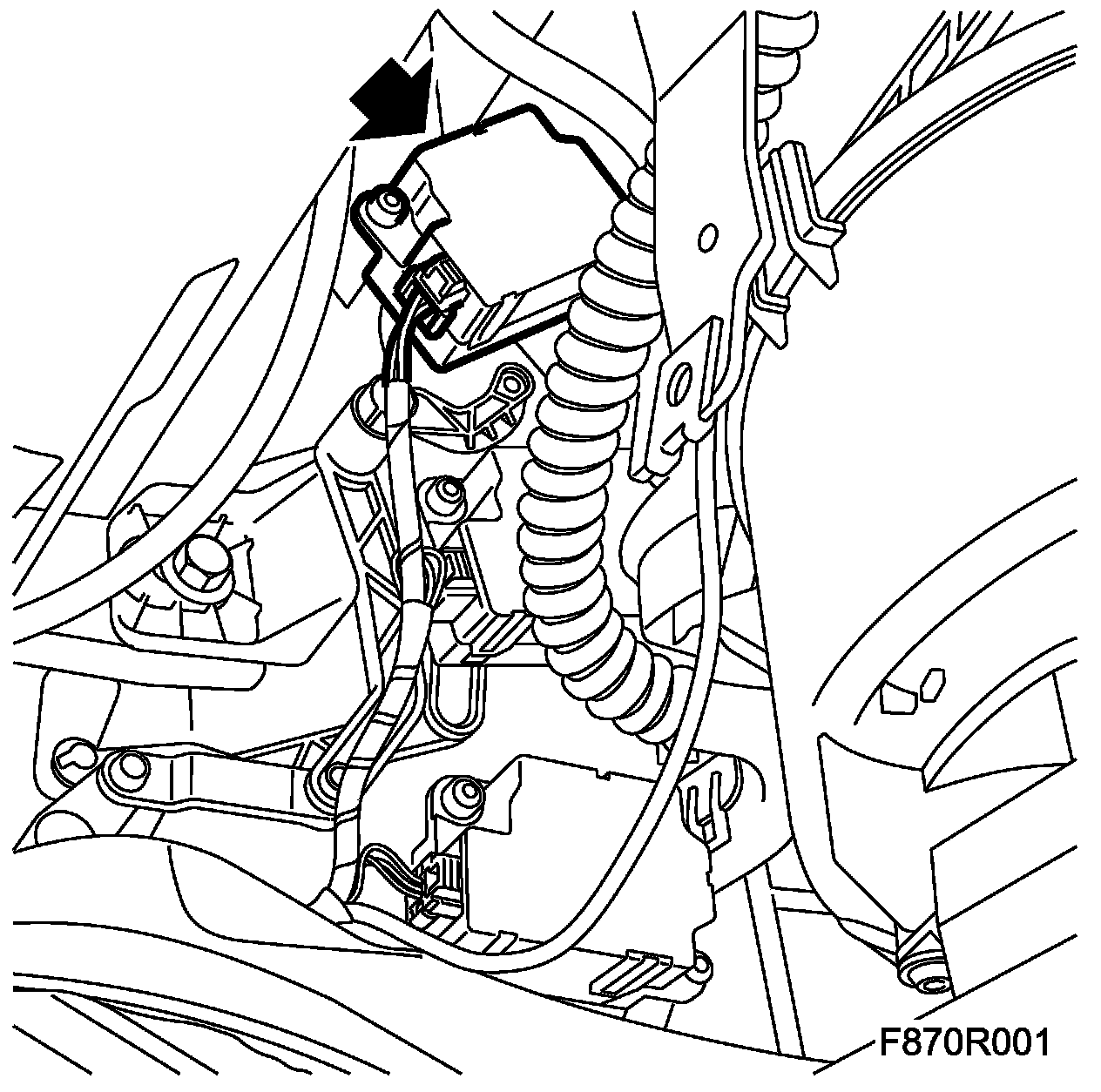

The right panel vent, air distribution flap stepping motor is the uppermost stepping motor.

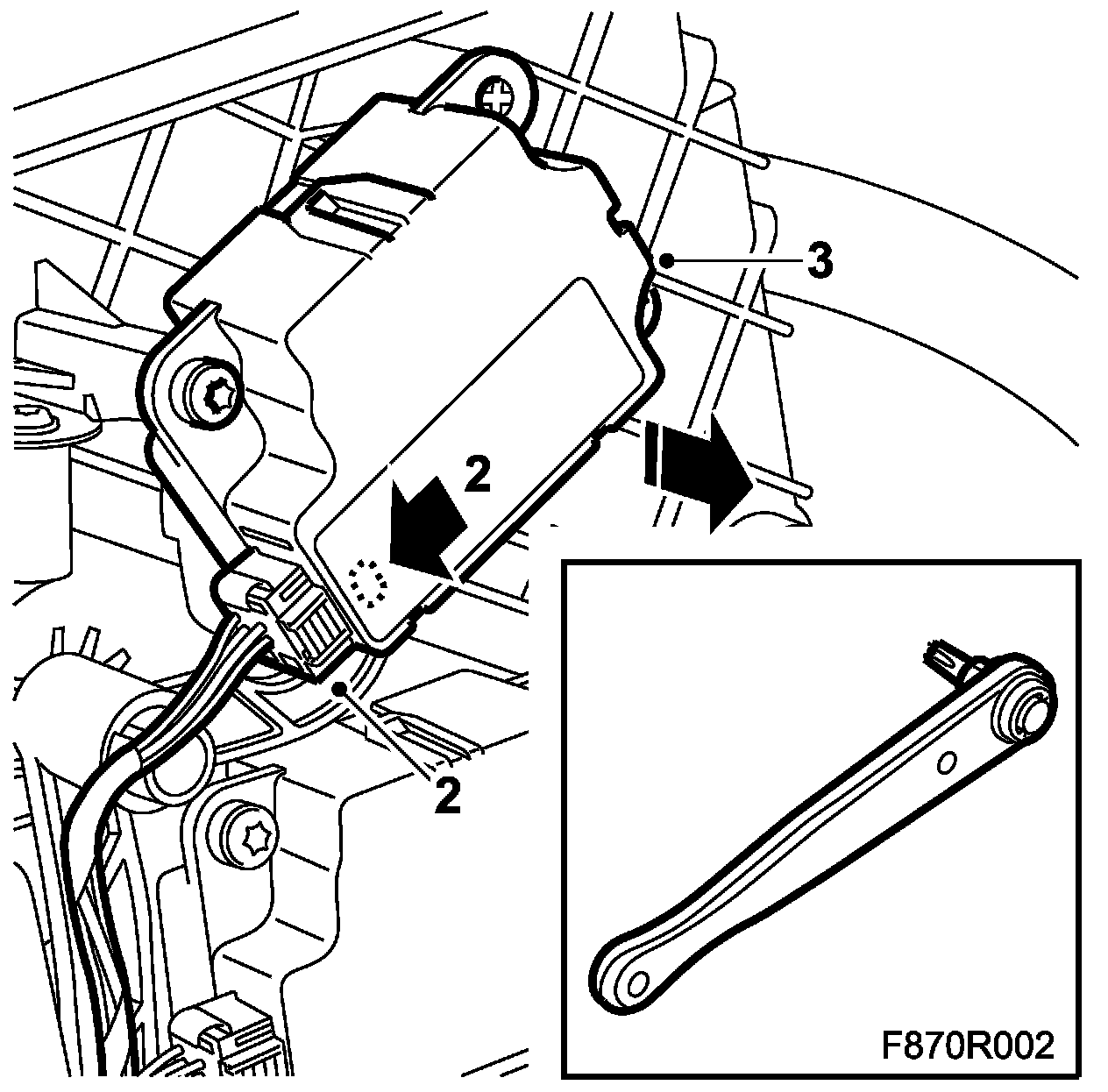

2. Dismantle the stepping motor's connector by pressing in the lock and pulling out the connector.





3. Dismantle the screws holding the stepping motor and dismantle the stepping motor.

To fit

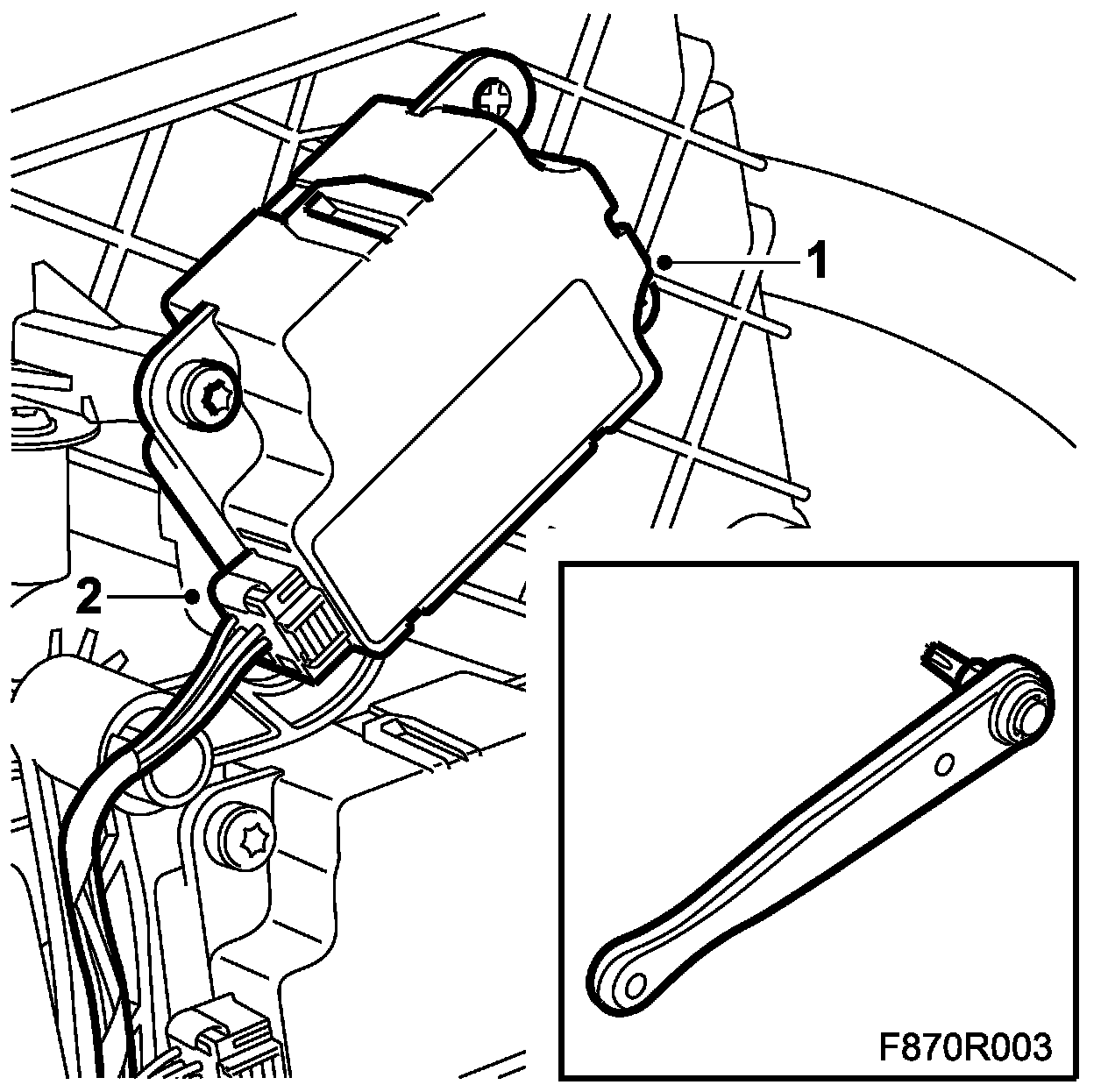

1. Fit the stepping motor.





2. Connect the stepping motor's connector. Make sure the connector locks correctly.
3. Fit the glove box.
