Crimp Connection J310, Adapter Harness



Location: Approx. 320 mm from branching of battery toward engine control module

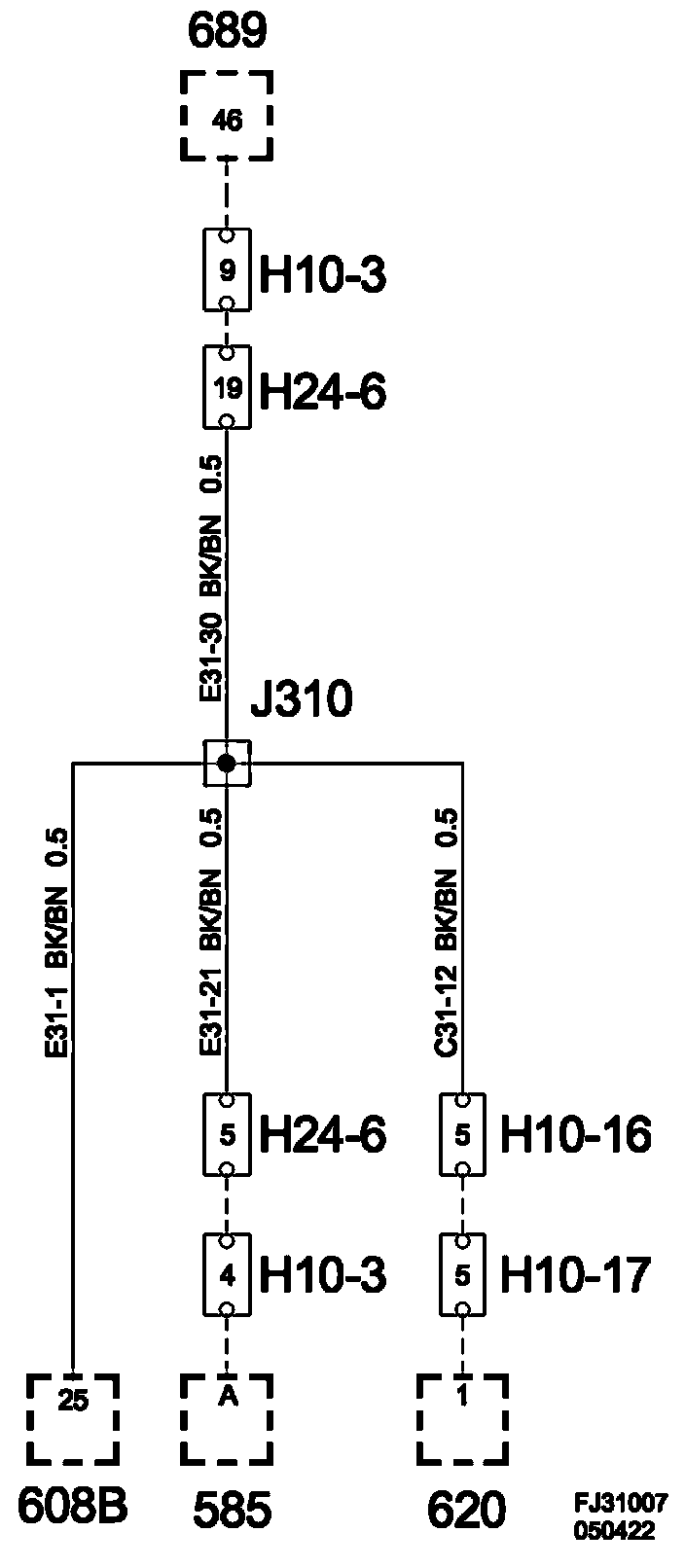

Crimp Connection J310, Adapter Harness:

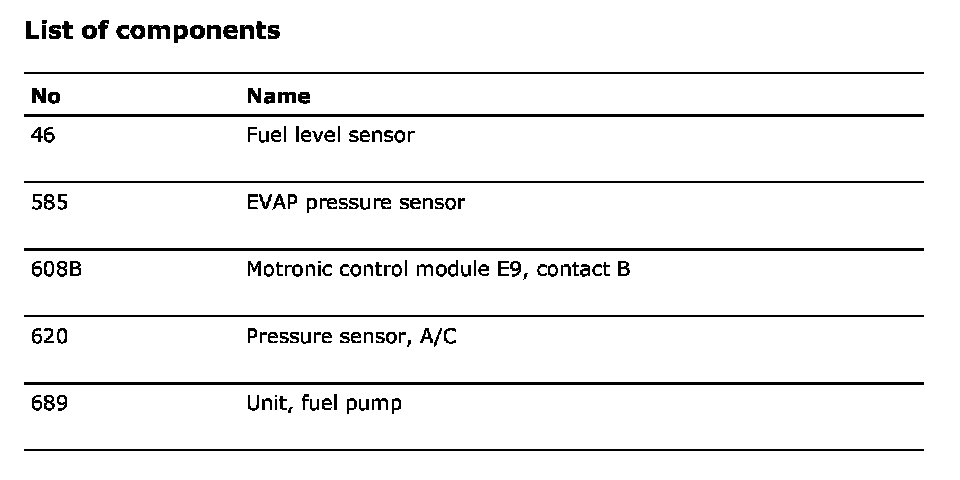

List Of Components:
