Crimp J309, Adapter Harness

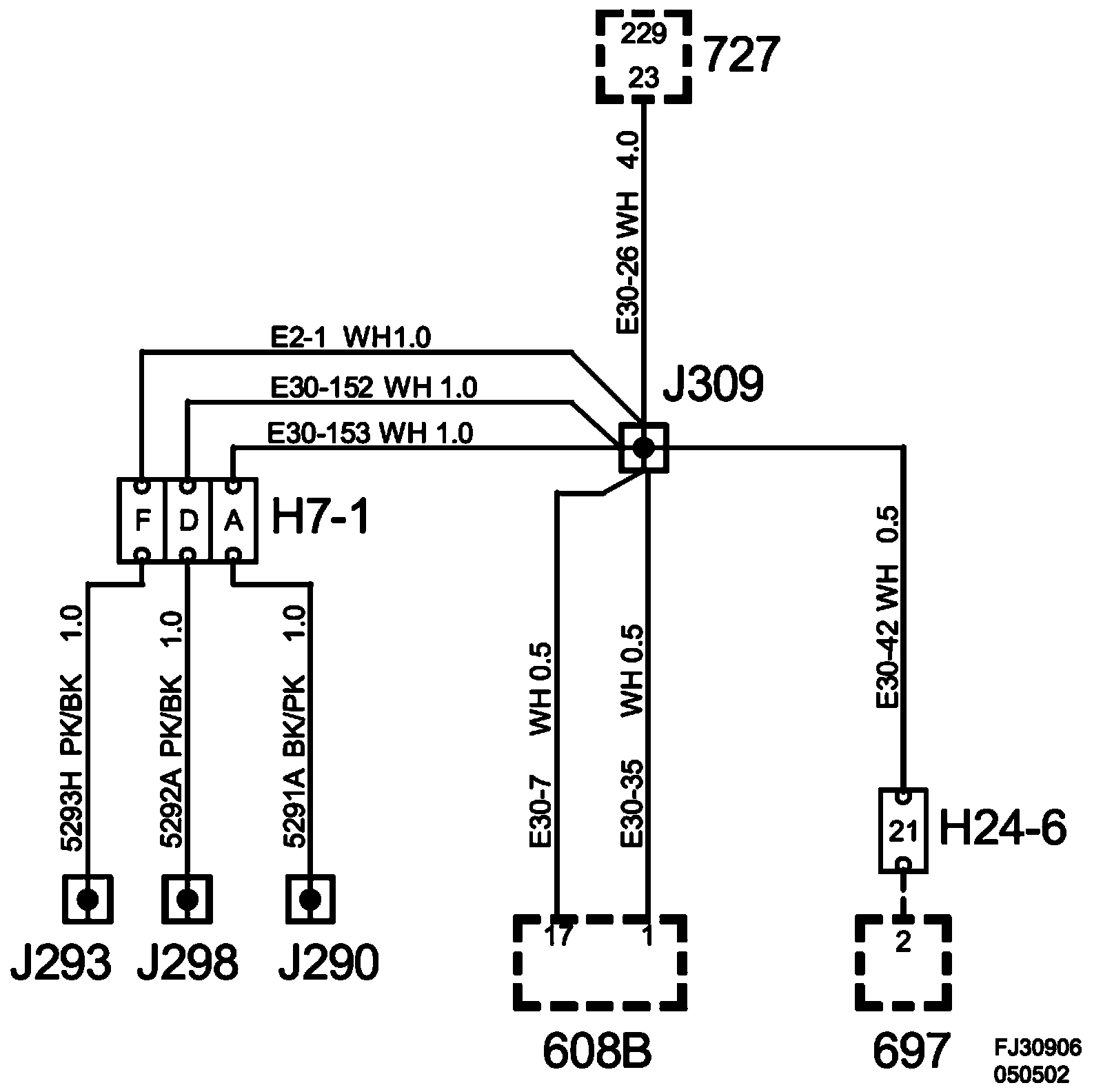

Crimp J309, Adapter Harness ME9:

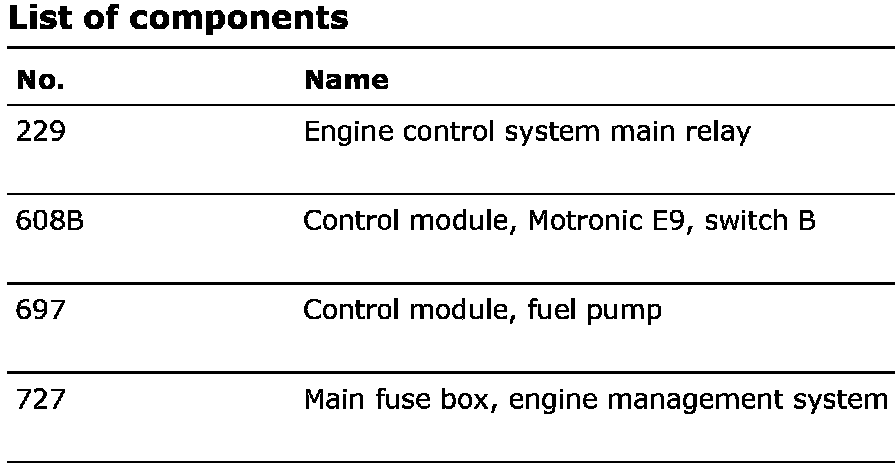

List Of Components:






Location: Approx. 270 mm from branching of battery toward engine control module


Crimp J290, engine harness ME9

Crimp J293, engine harness ME9

Crimp J298, engine harness ME9
