Crimp (Splices)
>>
Crimp J306, Adapter Harness
Crimp J306, Adapter Harness

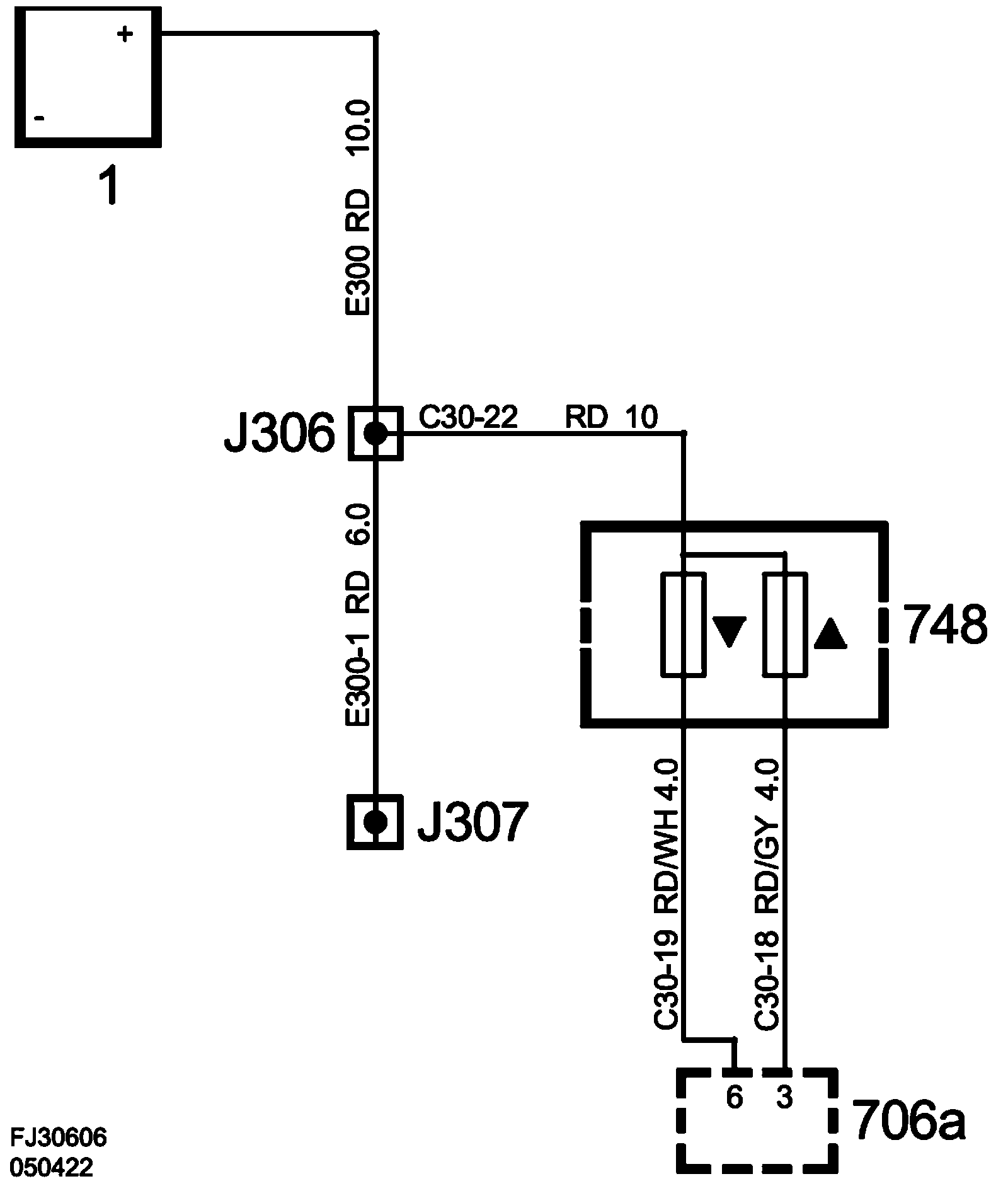

Crimp J306, Adapter Harness ME9:

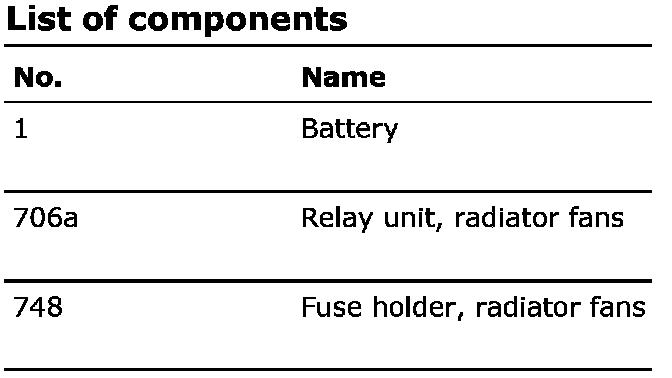

List Of Components:
Location:
Approx. 380 mm from battery disconnector
Crimp J307, adapter harness ME9
