Crimp J294, Engine Harness

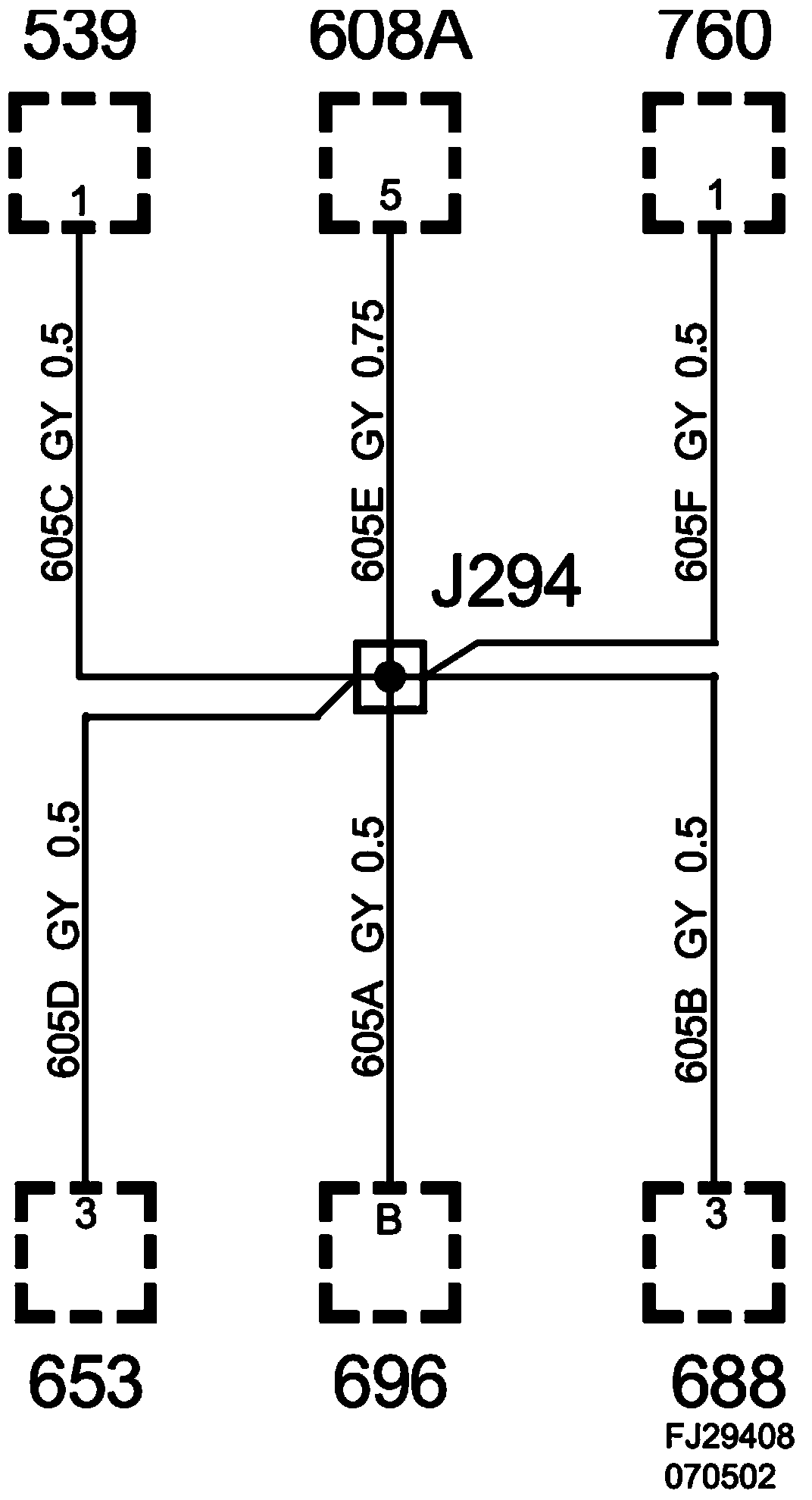

Crimp J294, Engine Harness ME9:

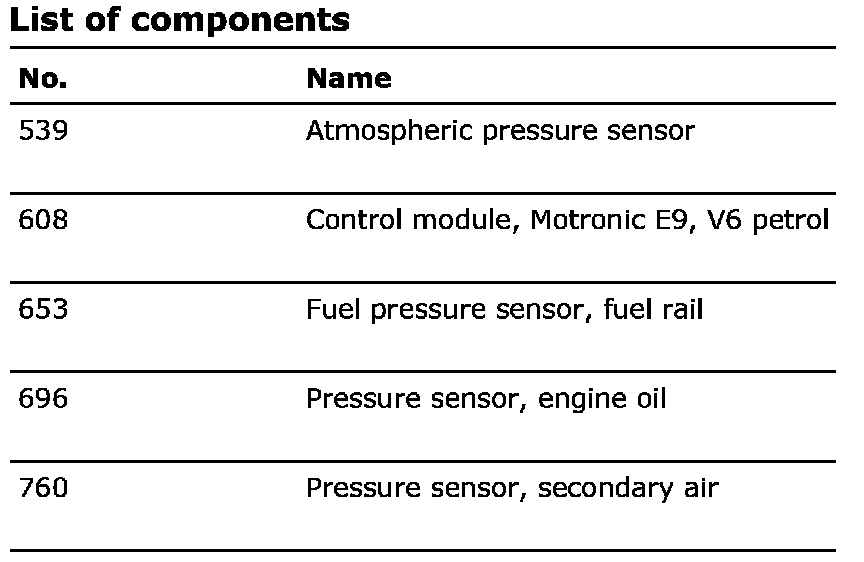

List Of Components:






Location: Approx. 70 mm from branching of engine control module toward engine control module
