Cellular Phone
>>
Cellular Phone Microphone
>>
CV
CV

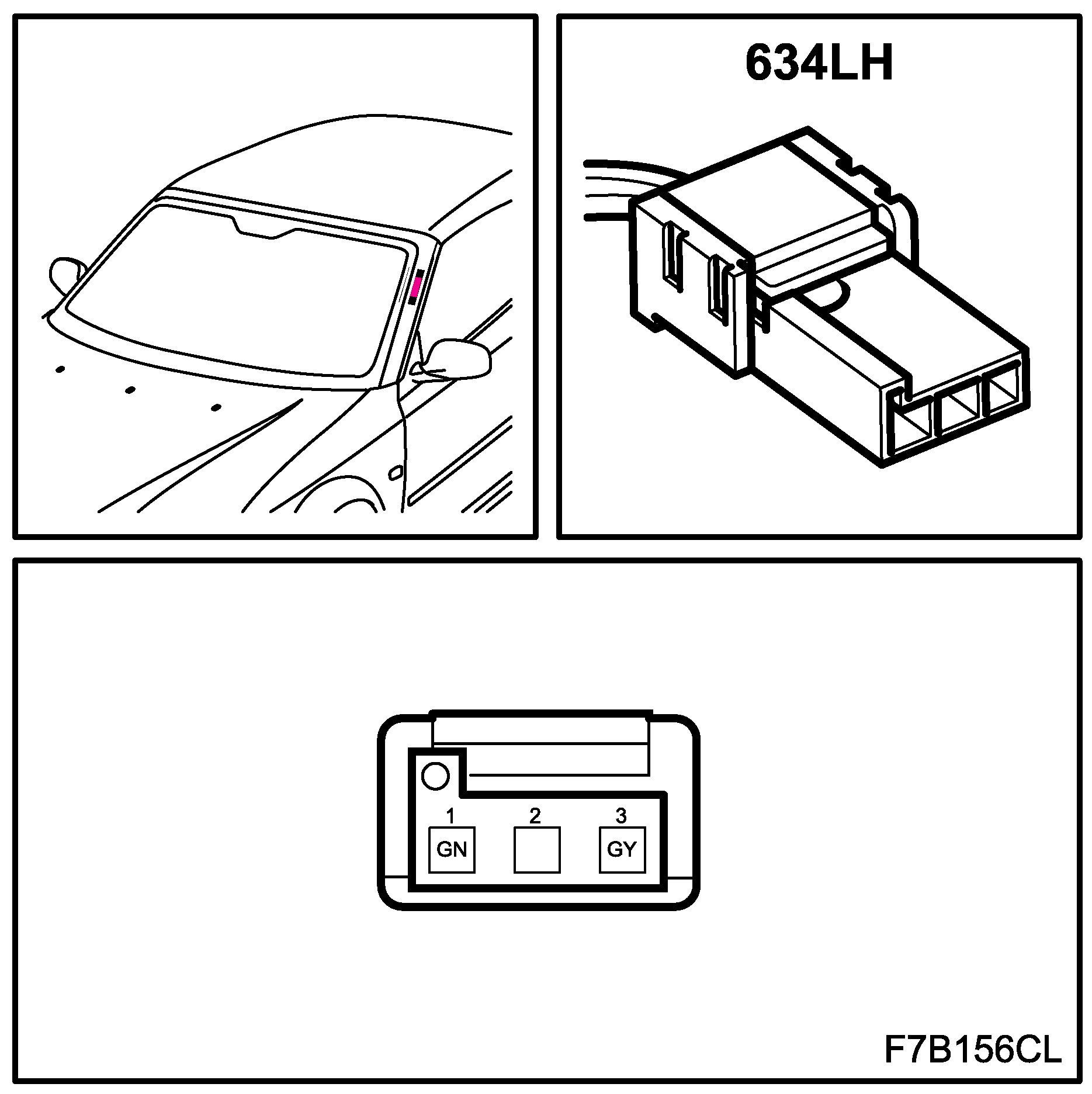

Microphone, Mobile Phone (634)
CV
Location LHD:
in the left-hand A-pillar
Microphone, Mobile Phone (634) CV:
