Steering Wheel Contact Unit (336)



Steering Wheel Contact Unit (336)

Location: integrated in steering column unit

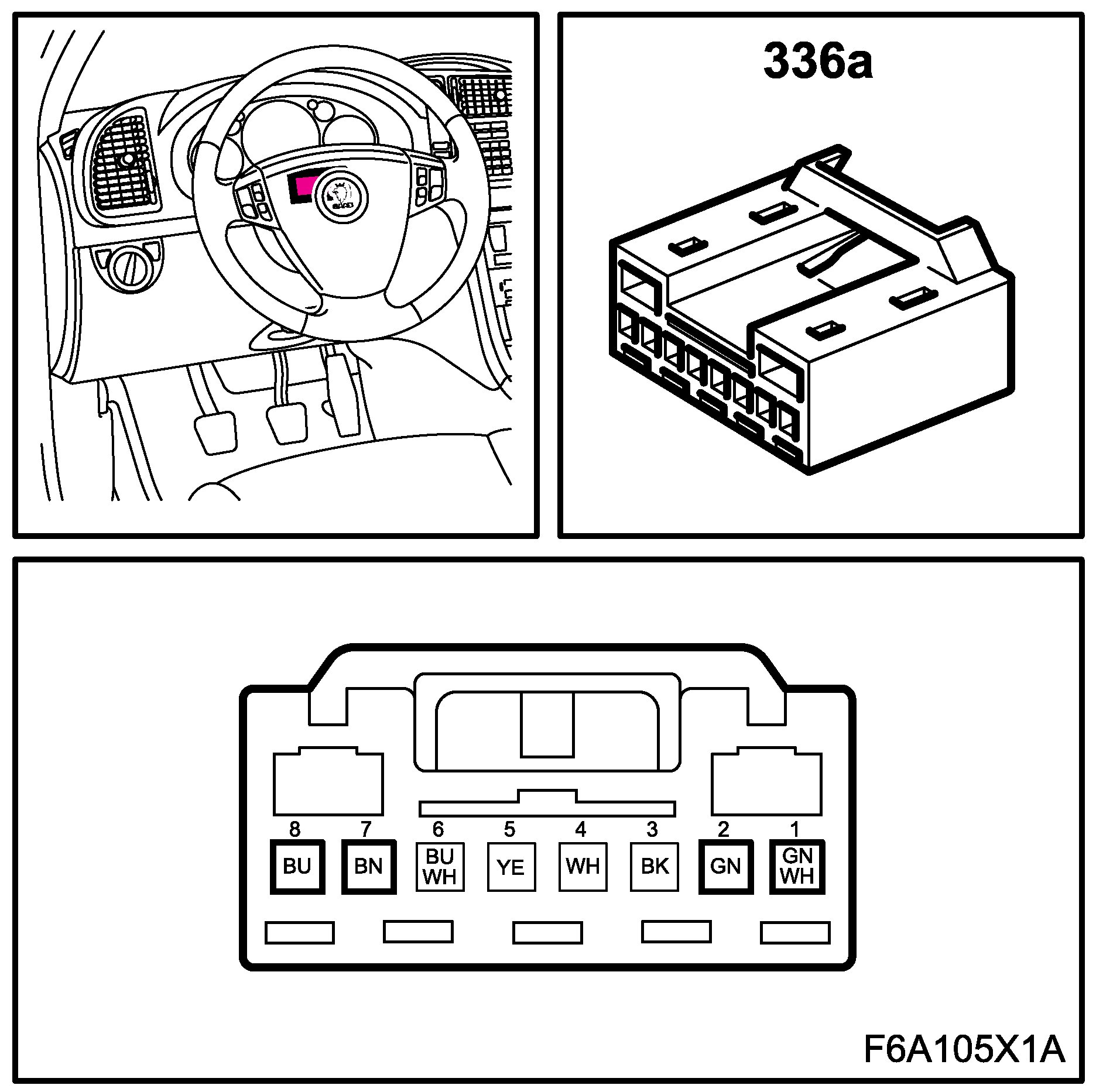

Connection from the steering wheel wiring harness


Steering Wheel Contact Unit (336):

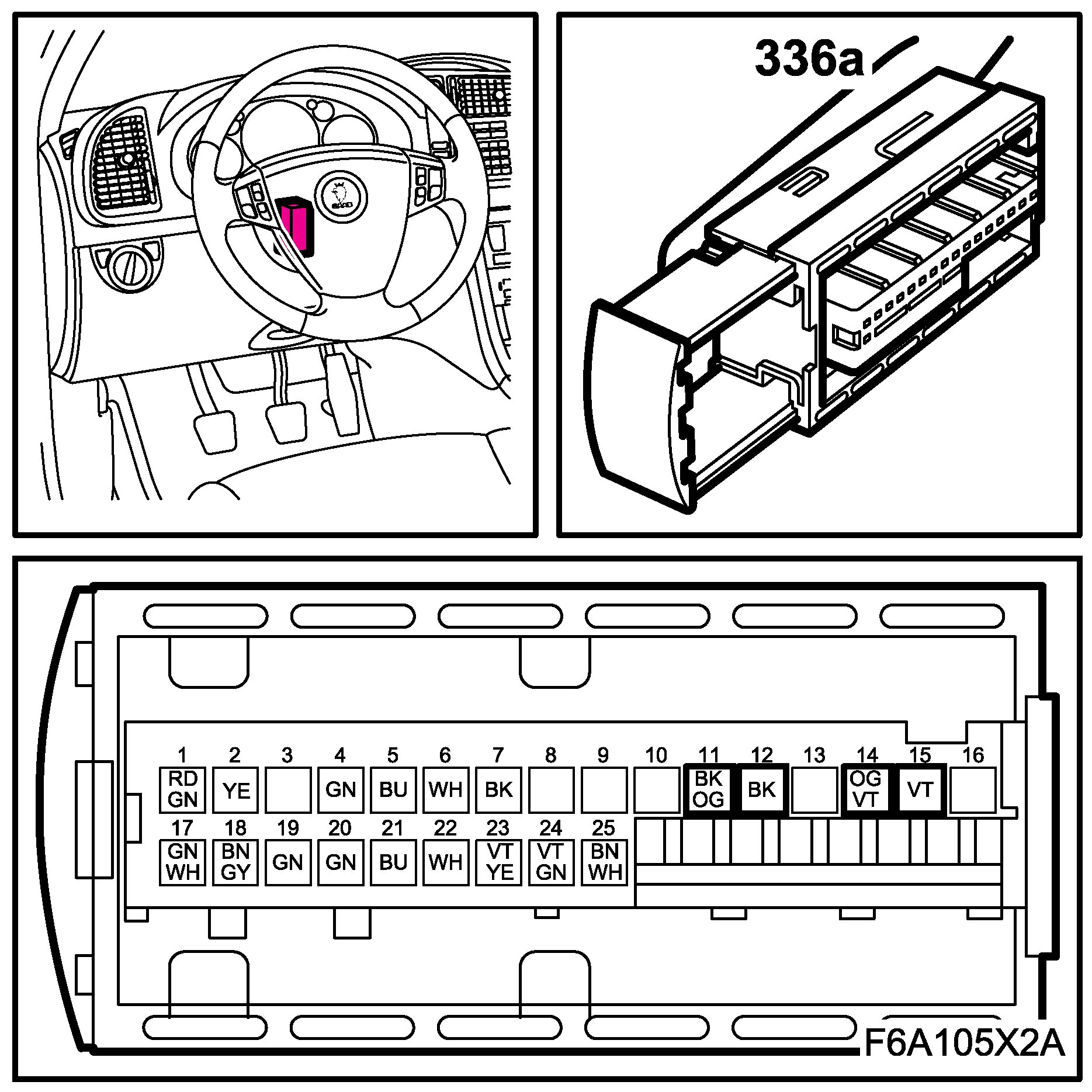

Connection from the instrument wiring harness


Steering Wheel Contact Unit (336):
