Amplifier, CV, Bracket, Prestige 300

Amplifier, CV, bracket, Prestige 300

To remove

WARNING: The amplifiers may be very hot so extreme caution must be exercised.

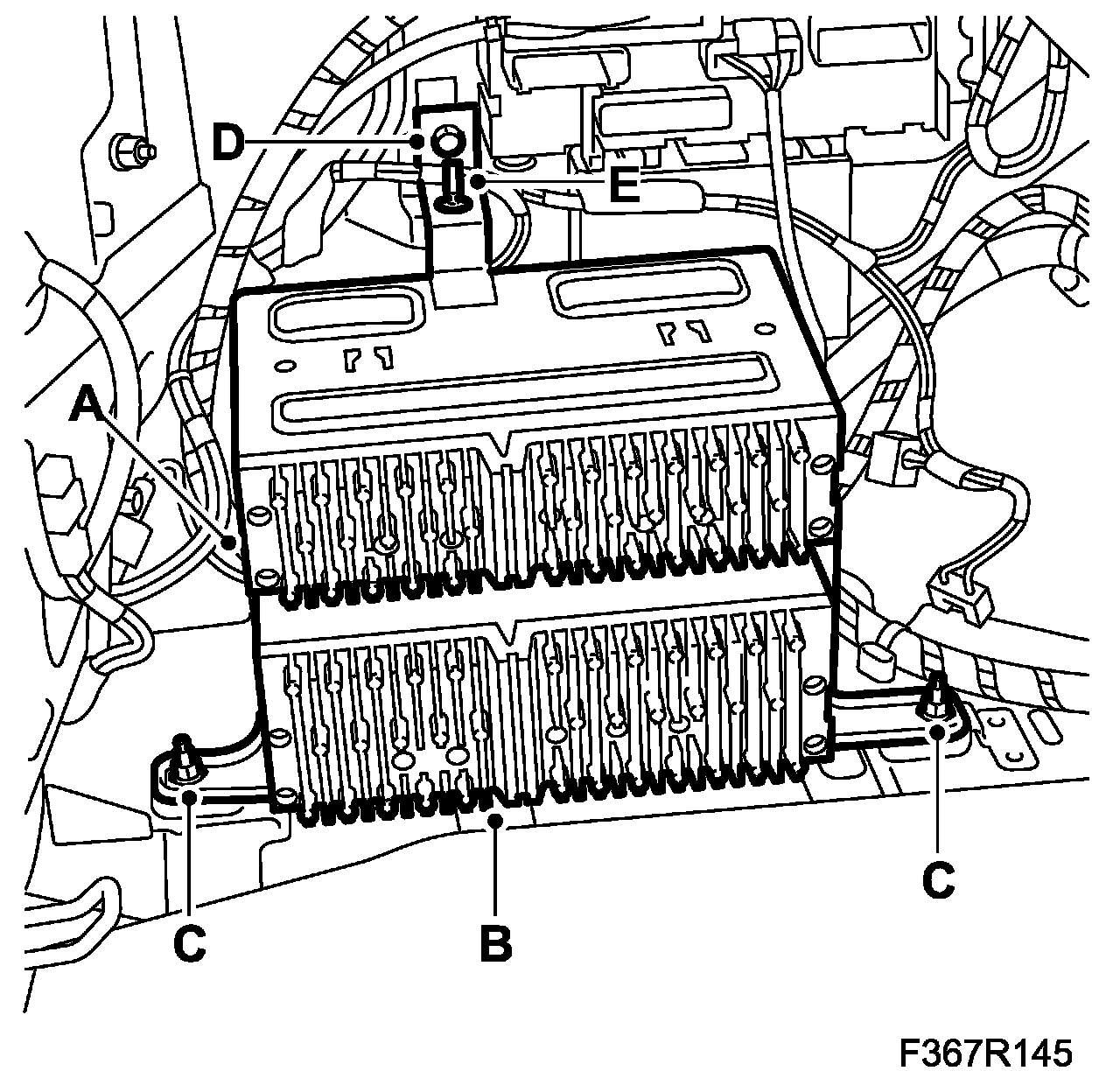

1. Remove Amplifier (354) (A) and Amplifier (354S) (B).





2. Remove the bracket nuts (C).
3. Remove the bracket bolt (D).
4. Remove the cable tie (E).
5. Lift out the bracket.

To fit

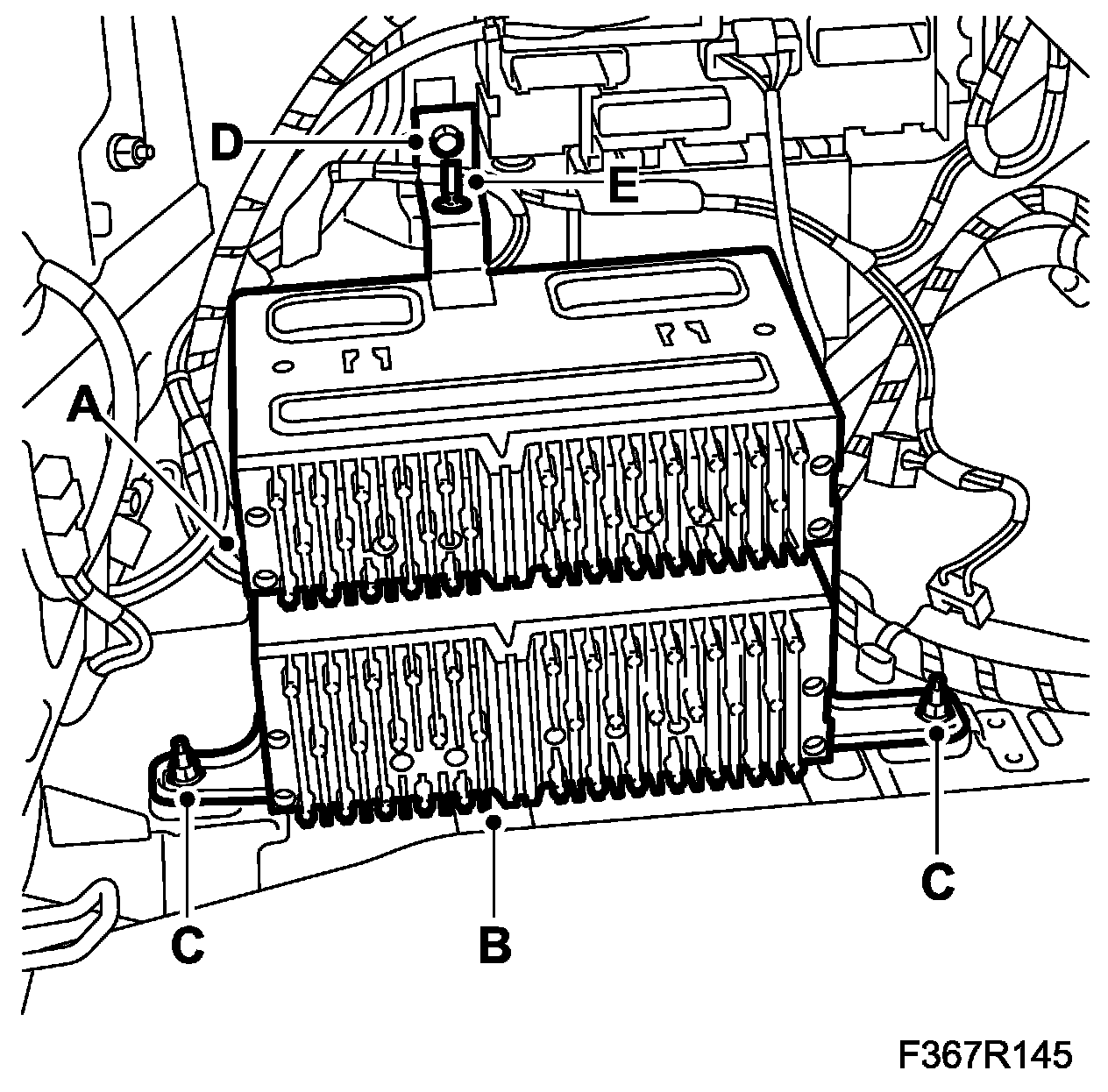

1. Position the bracket.
2. Fit the cable tie to the bracket (E).





3. Fit the bracket bolt (D).
4. Fit the bracket nuts (C).
5. Fit Amplifier (354) (A) and Amplifier (354S) (B).
