Global Positioning System Antenna: Description and Operation

Antenna, GPS/mobile Phone (467/627)

Location

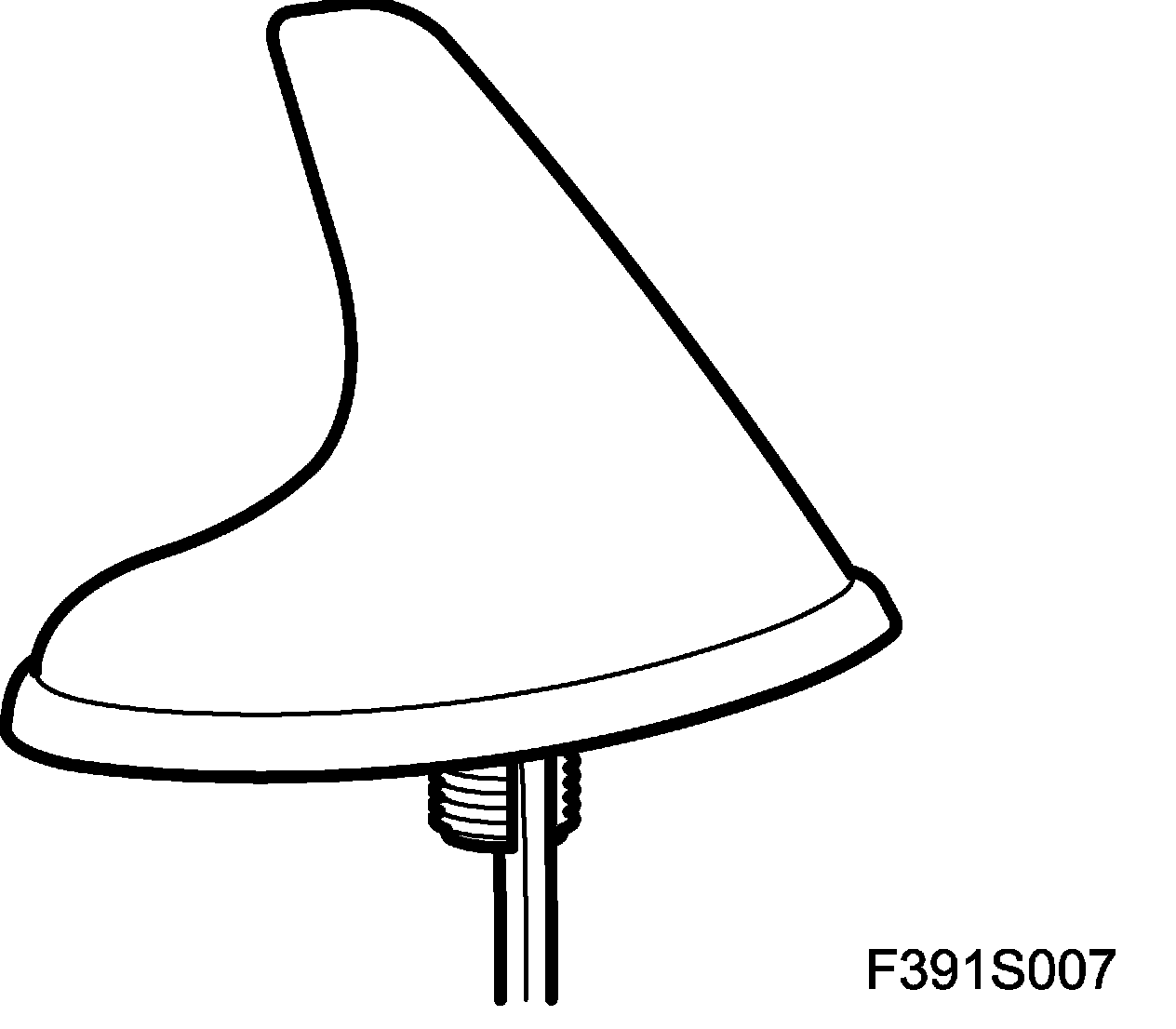

Antenna, mobile phone (627)

Main purpose
Used for in-car phone, communication services and navigation.

Type







Physically shortened quarter-wave antenna for:
- Frequency band, phone - US
- AMPS 824-894 MHz (analogue)
- PCS 1850-1900 MHz (CDMA)
- Frequency band, phone - JP
- PDC 810-826 MHz, 1429-1501 MHz
- Frequency band, phone - Others
- GSM 900, 1800 MHz
- Frequency band, GPS
- 1574-1576 MHz.

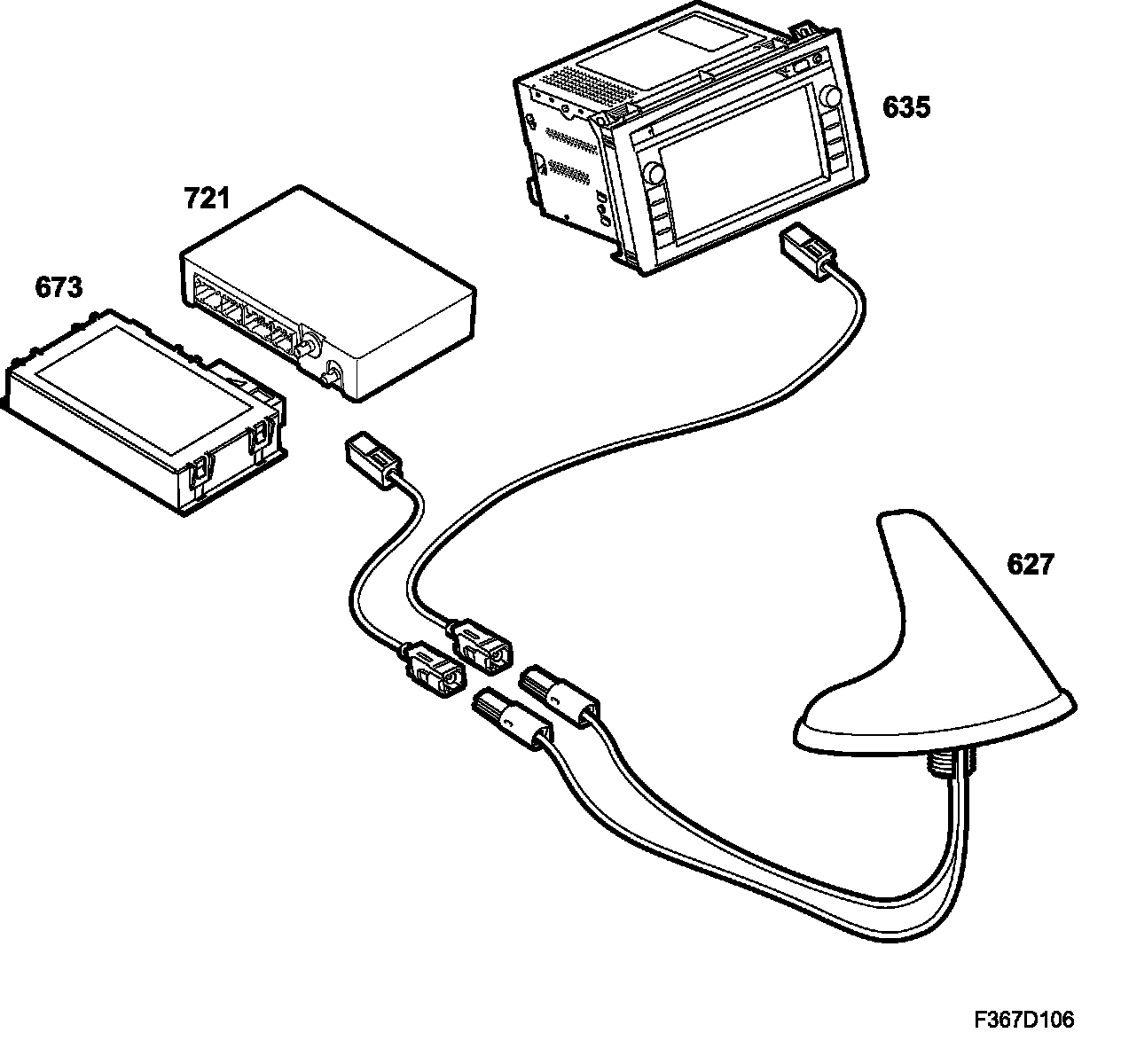

Connection
Connected to the EHU, OnStar and/or the UHP with a coaxial cable.
