Rear Anti-Roll Bar Bush, 4WD

Rear anti-roll bar bush, 4WD

To remove
1. Raise the car.
2. Mark the position of the bushes.

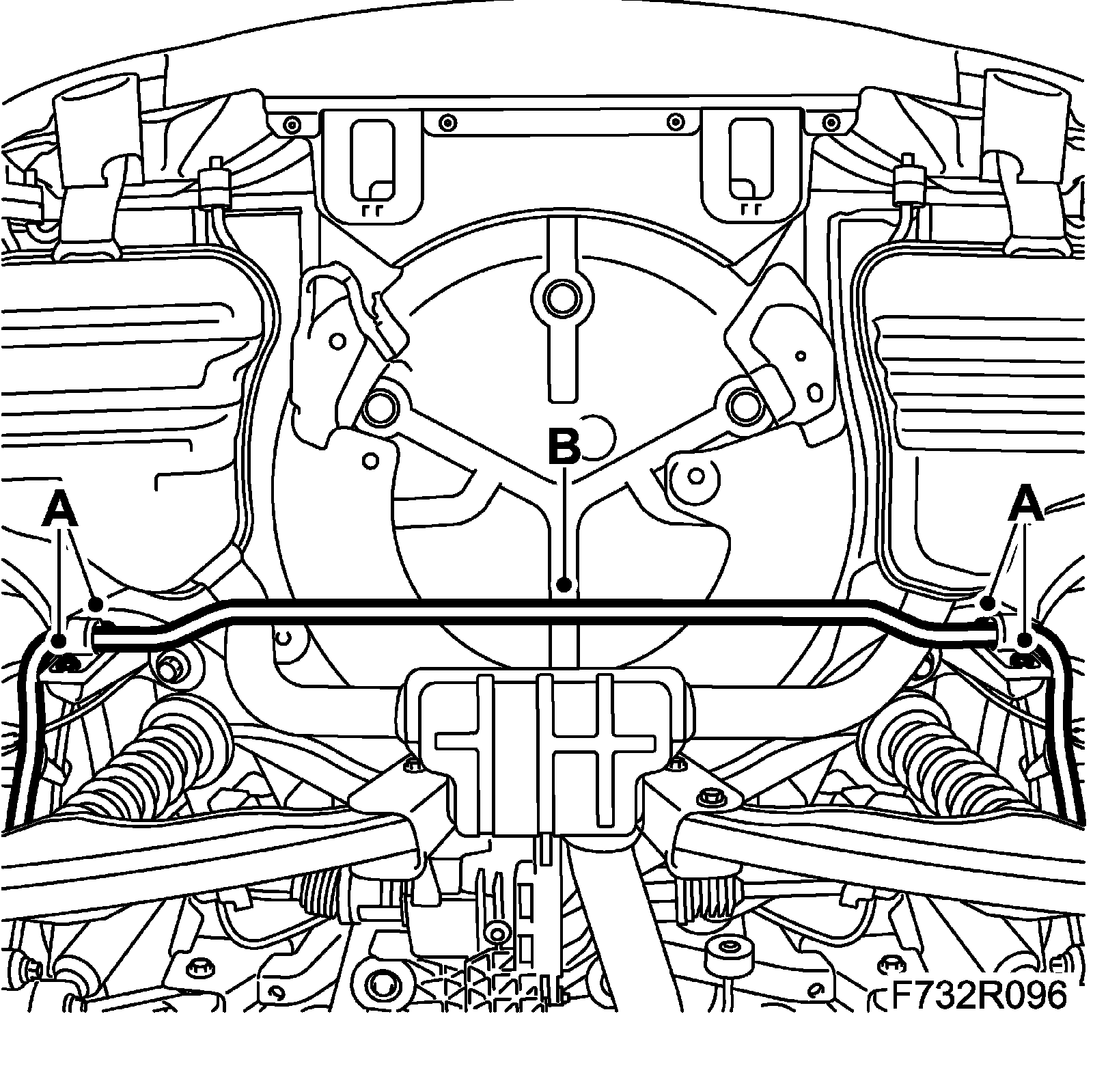

3. Remove the bush bolts (A) and move aside the anti-roll bar (B).





4. Remove the caps and bushes from the anti-roll bar.

To fit
1. Clean the anti-roll bar and lubricate the inside of the bushes with 91 63 334 Ball bearing grease.

Fit the caps and bushes on the anti-roll bar.

2. Apply a thin coat of soapy water on the outside of the bush.

Important
Soap and water solution must not enter between bushing and anti-roll bar!

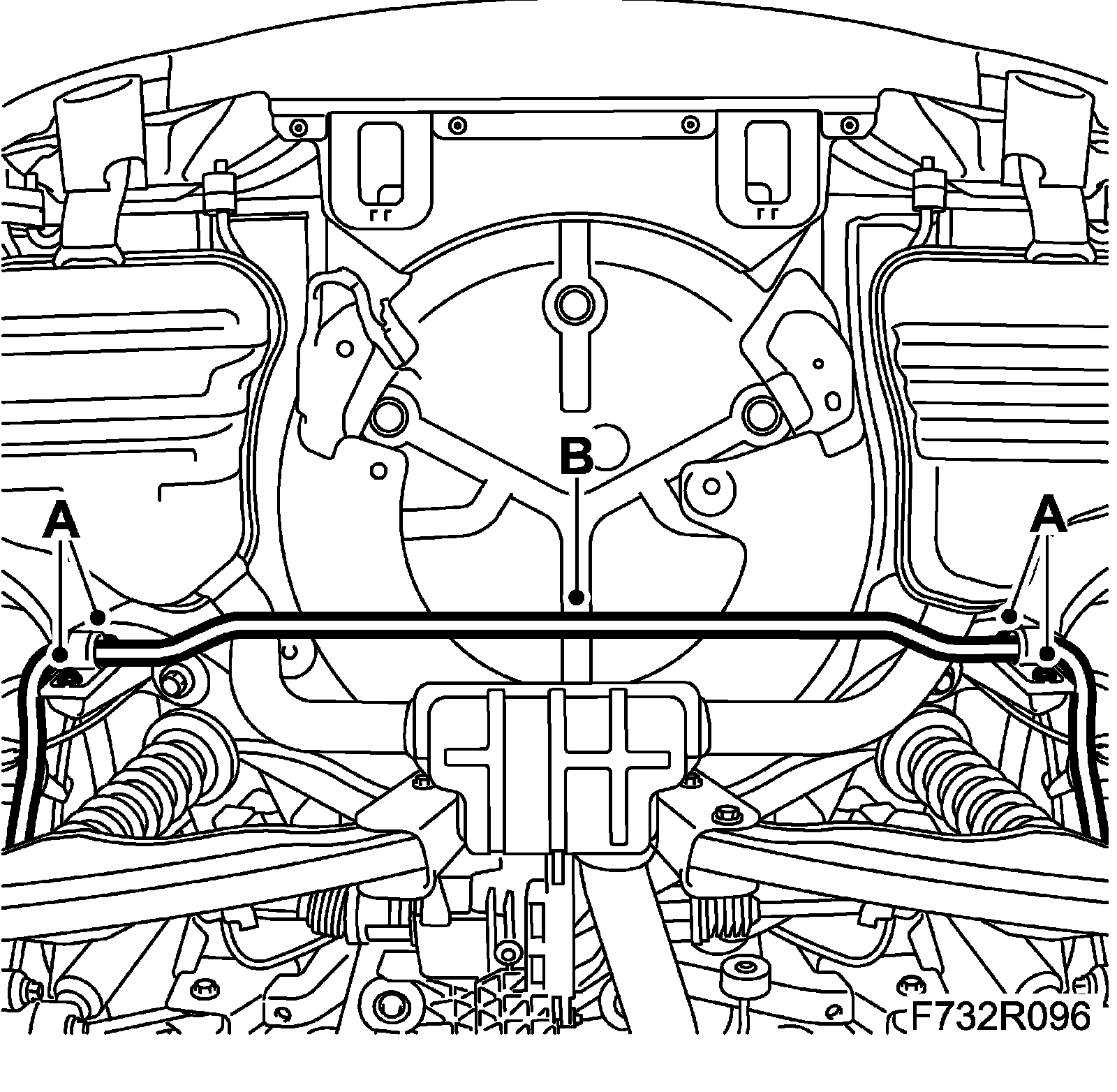

3. Bend up the anti-roll bar (B) and fit the bush bolts (A).

Tightening torque: 30 Nm (23 ft. lbs.)





4. Lower the car to the floor.
