Bush, Front Anti-Roll Bar, Replacement, 4WD

Bush, front anti-roll bar, replacement, 4WD

To remove
1. Remove the anti-roll bar, see Anti-roll bar, LHD, 4WD or Anti-roll bar, RHD, 4WD
2. Remove front wheels.

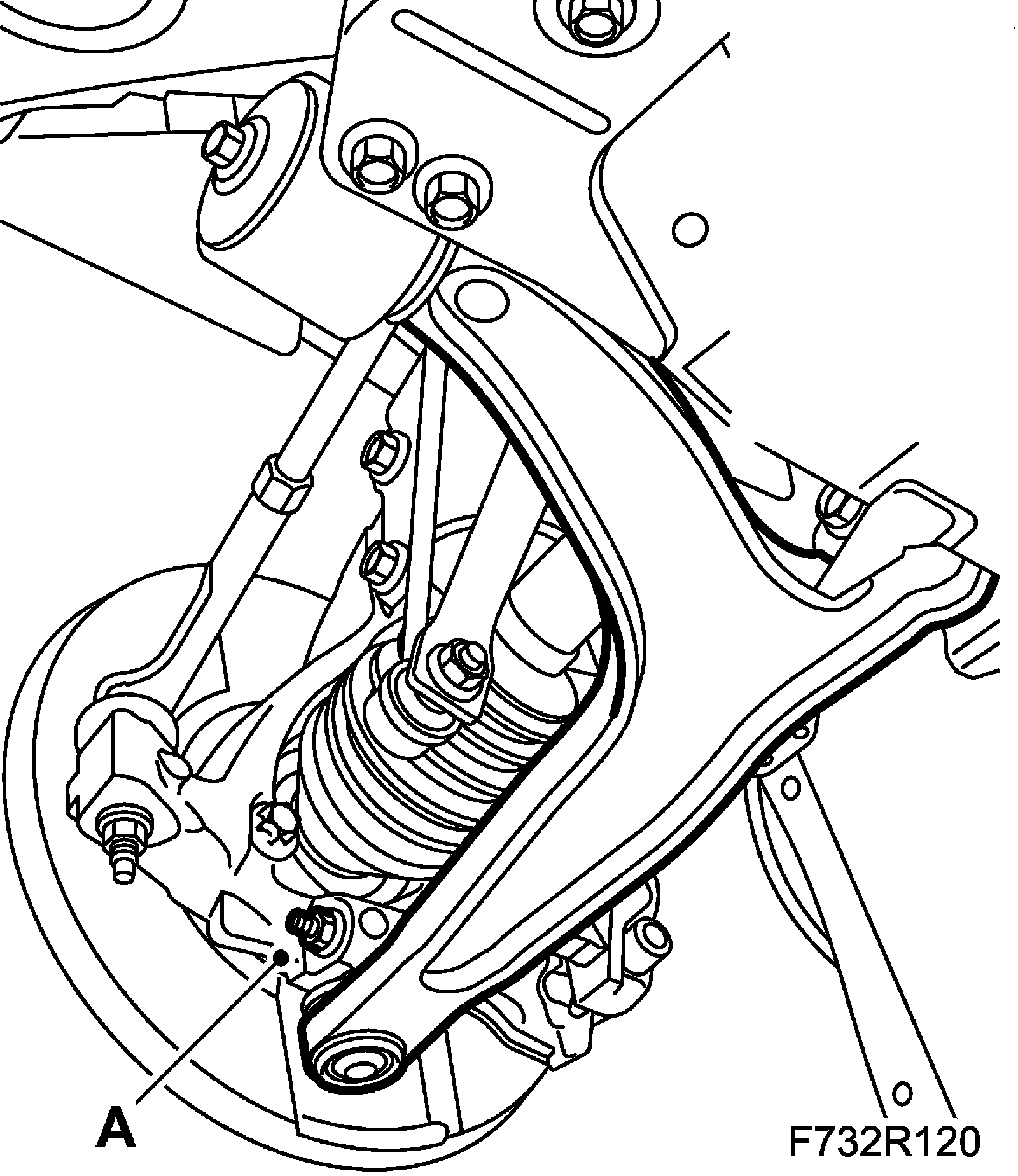

3. Remove the bolt and nut which attach the suspension arm to the steering swivel member on both sides (A).





4. Lower the subframe.

Important
Replace one side at a time.

Important
Do not lubricate the bushing or anti-roll bar when removing/installing.

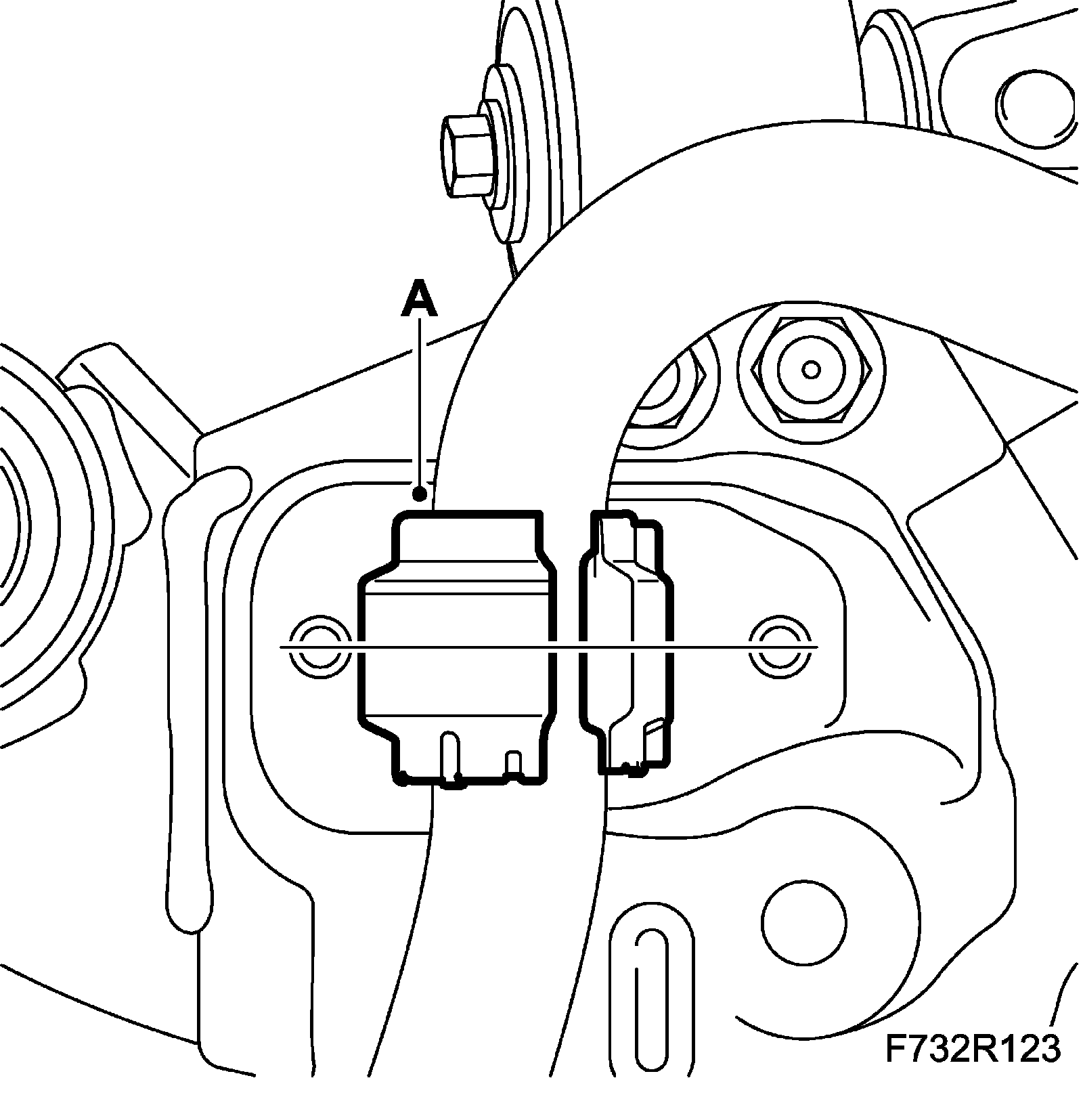

5. Position the anti-roll bar on the subframe and fit its right mounting (A).

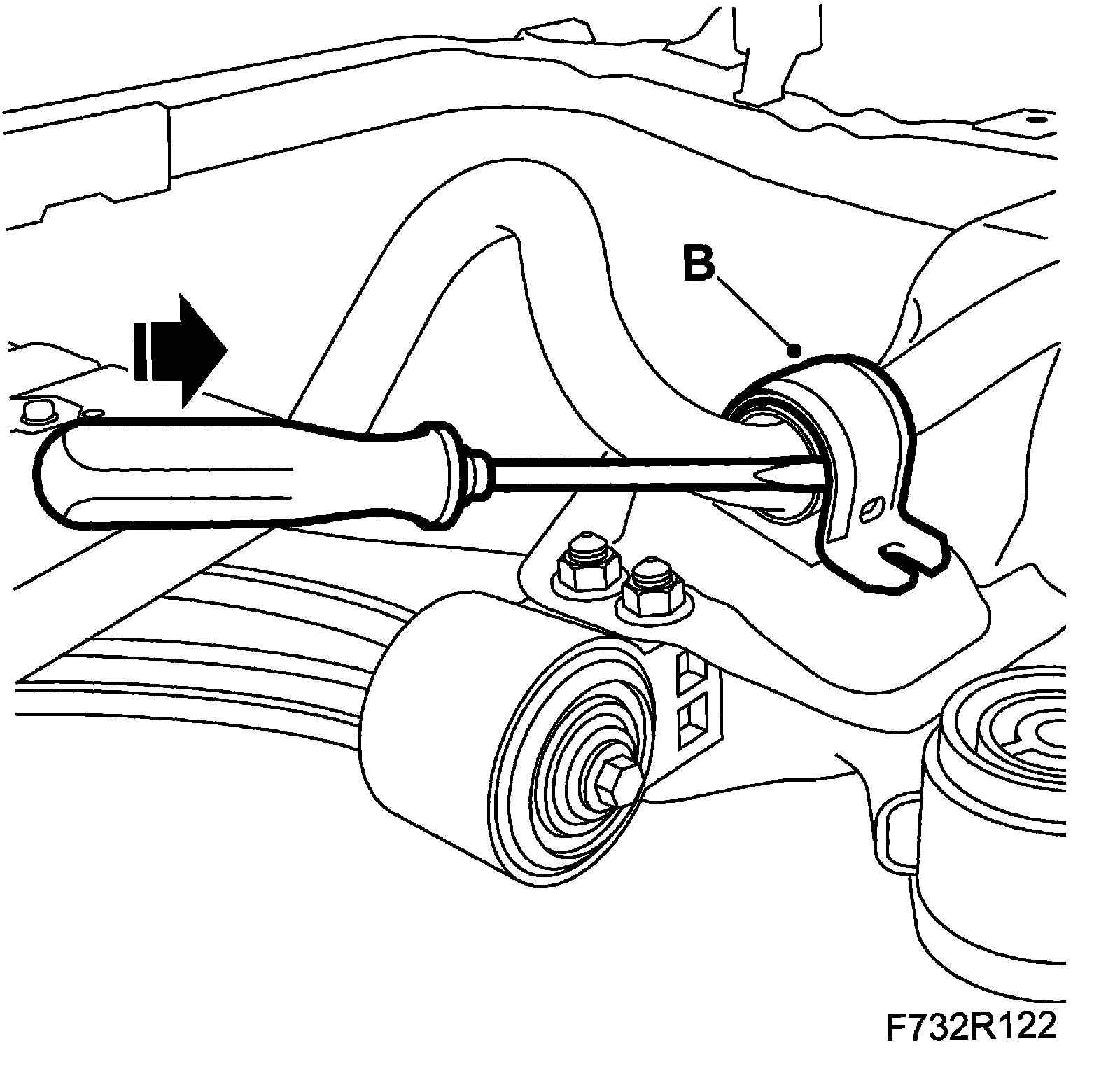

6. Remove the cap from the left-hand bush (B).





7. Remove the left-hand bush.

Note
The removed bush must not be reinstalled. It must be replaced.

To fit

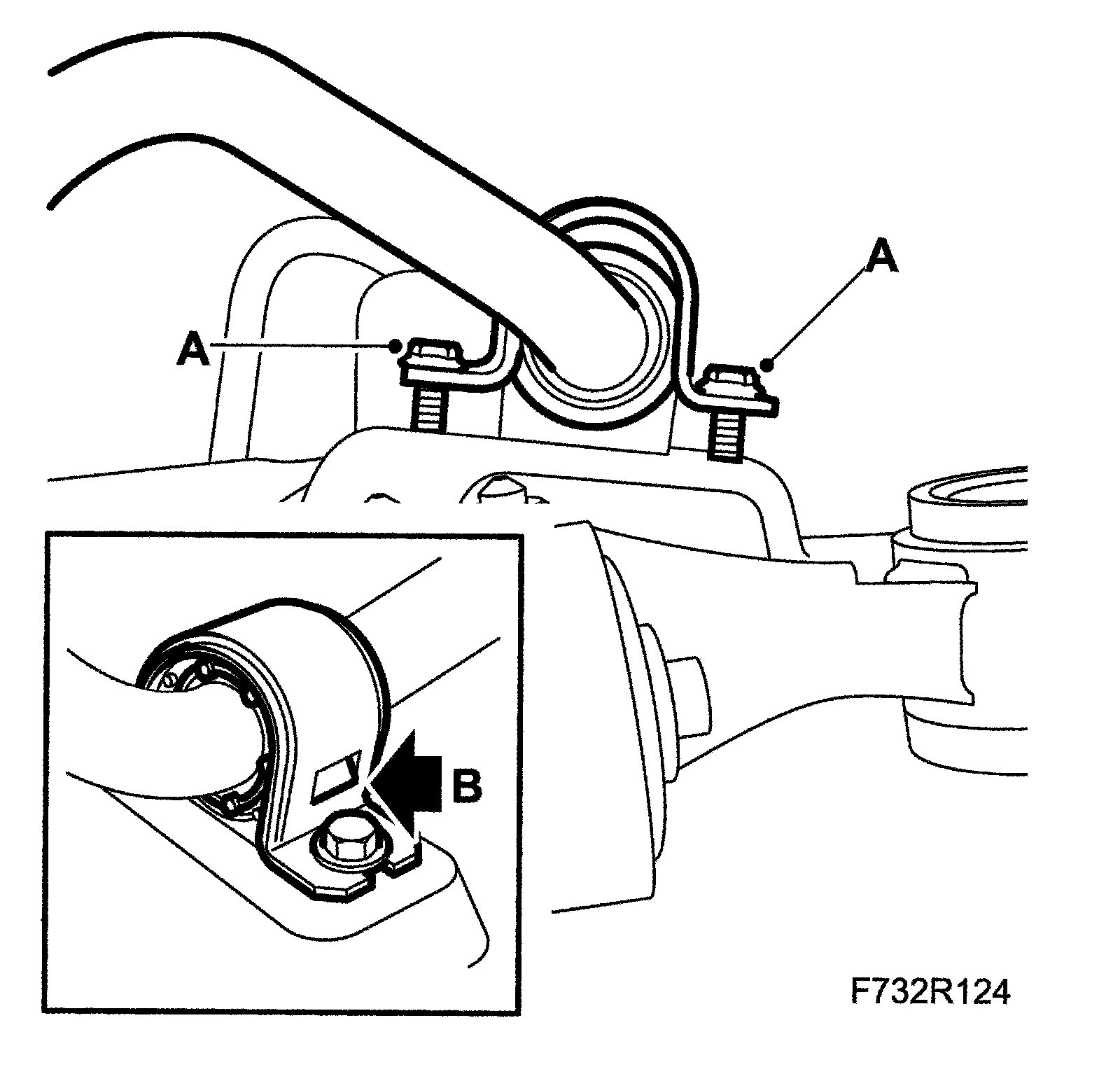

1. Position the bush (A) on the subframe, centerd between the bolt holes.





Important
Soap and water solution must not enter between bushing and anti-roll bar!

2. Apply a thin coat of soapy water on the outside of the bush.

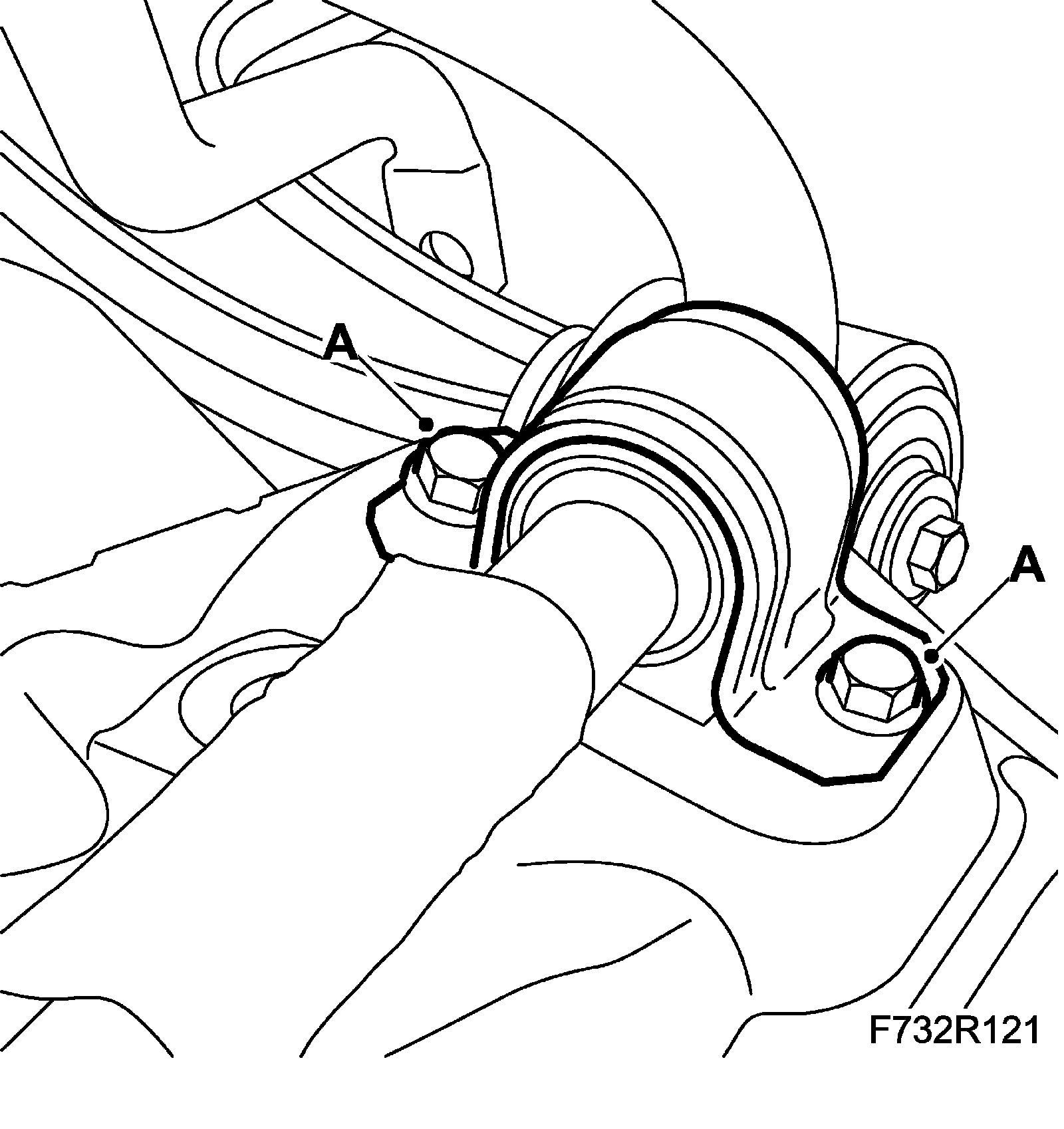

Fit the cap to the subframe. Tighten the bolts (A) alternately until the bush hooks (B) into the cap.

Note
Use M8x30 mm bolts.





3. Replace the temporary bolts M8x30 mm) with original bolts and tighten.

Tightening torque 18 Nm (13 ft. lbs.).

4. Replace the right anti-roll bar bush following the same method.
5. Remove the anti-roll bar from subframe.
6. Fit the anti-roll bar, see Anti-roll bar, LHD, 4WD or Anti-roll bar, RHD, 4WD.
7. Fit the bolt and nut (B) which attach the suspension arm to the steering swivel member on both sides.

Warning
Press up the pin carefully.

The groove in the pin must be visible in the screw hole in the spindle housing.

If the rubber gaiter is pressed down, it will not seal properly to the swivel pin.

8. Fit the Wheel.
9. Check the straight-ahead position of the steering wheel when driving on a level road. Adjust if necessary
