Home
>>
Saab
>>
2009
>>
9-3 XWD (9440) V6-2.8L Turbo (B284R)
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>
Grounding Point G2
Grounding Point G2
Grounding Point G2, B284
Grounding Point G2, B284:

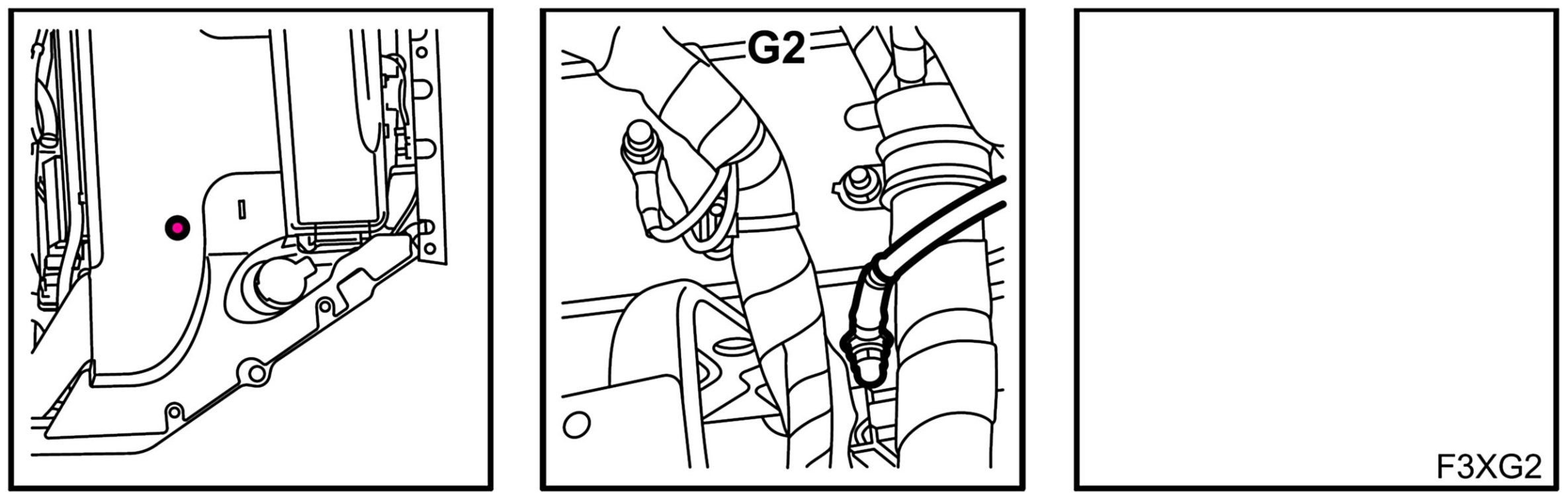

Location:
On the side of the LH structural member near the connector console
