Camshaft Rocker Arm, Rear Cylinder Head B284 (New Version)

Camshaft rocker arm, rear cylinder head B284 (new version)

To remove
1. Remove Camshafts in situ, rear cylinder head, B284 (new version).

Important
Store all removed valve parts in the valve stand 83 93 787.

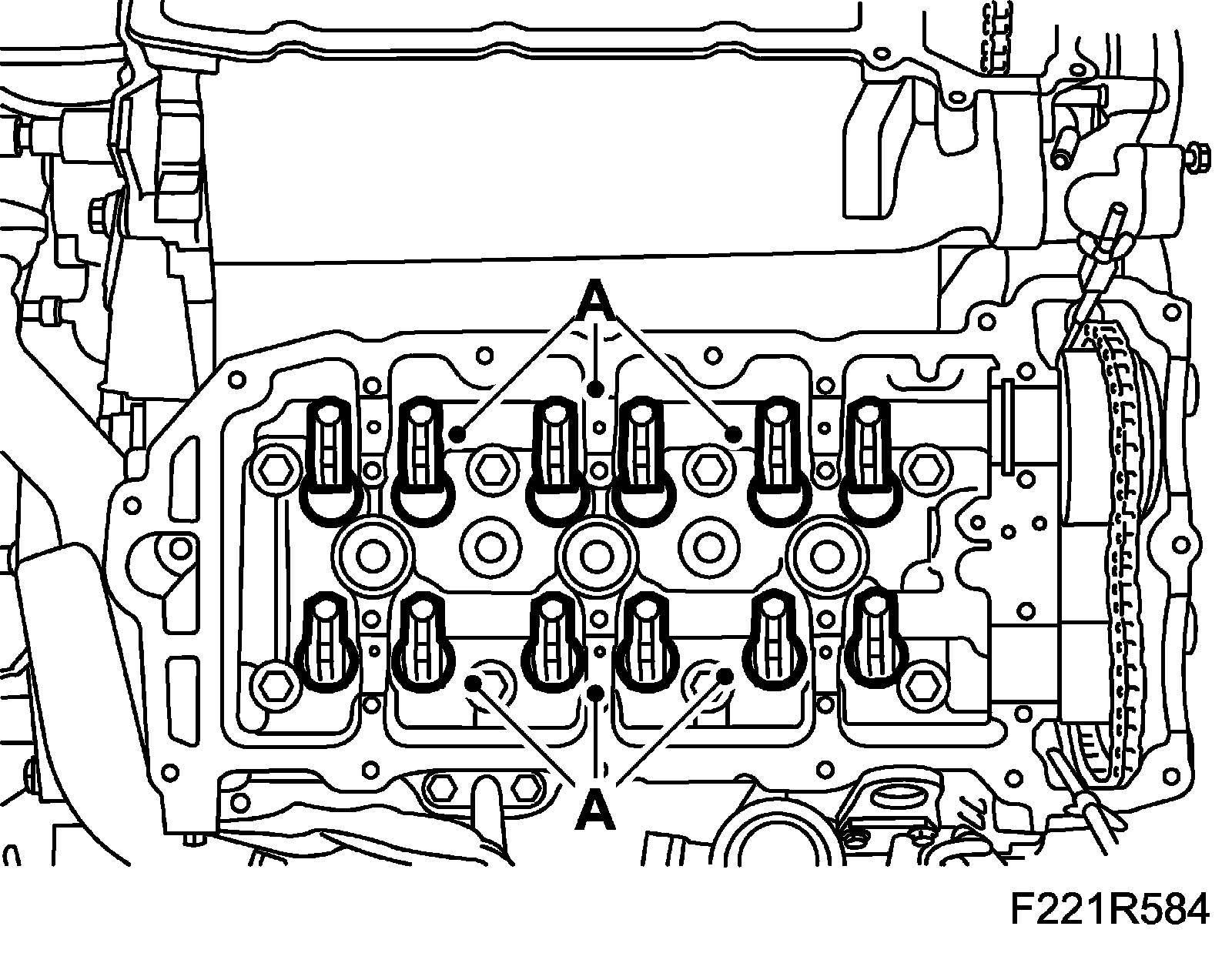

2. Remove the roller rockers (A).





Important
Cover all return oil ducts in the cylinder head so that impurities cannot fall into the engine.

To fit
1. Fit the roller rockers (A).
2. Fit Camshafts in situ, rear cylinder head, B284 (new version).
