Ground Locations

Grounding point G2, B284





Location: On the side of the LH structural member near the connector console

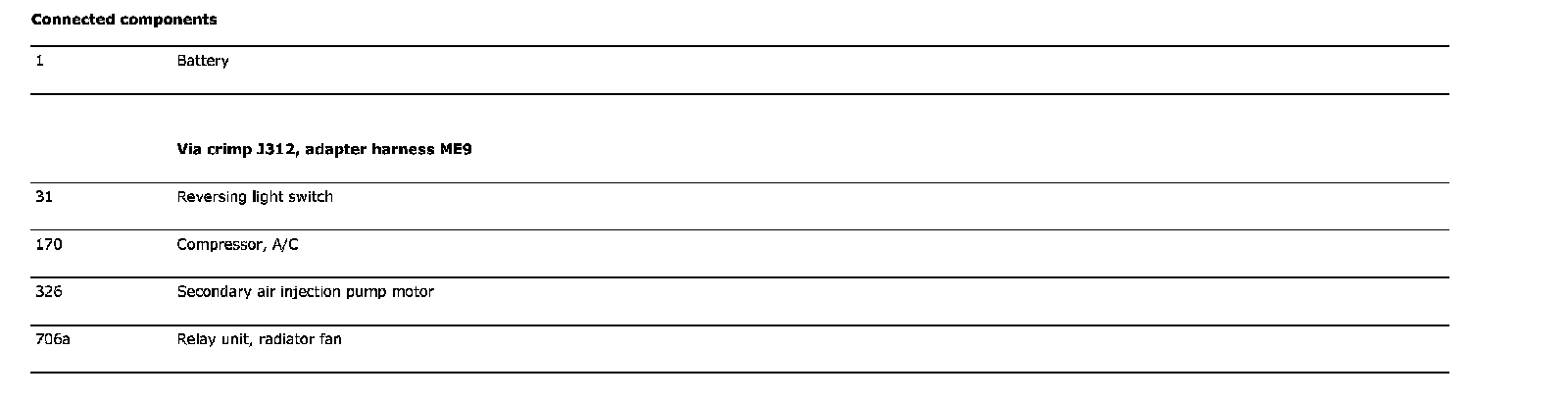

Connected components

Connected Components:
