Saab
>>
2009
>>
9-3 XWD (9440) V6-2.8L Turbo (B284R)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Locations
>>
Component Locations
>>

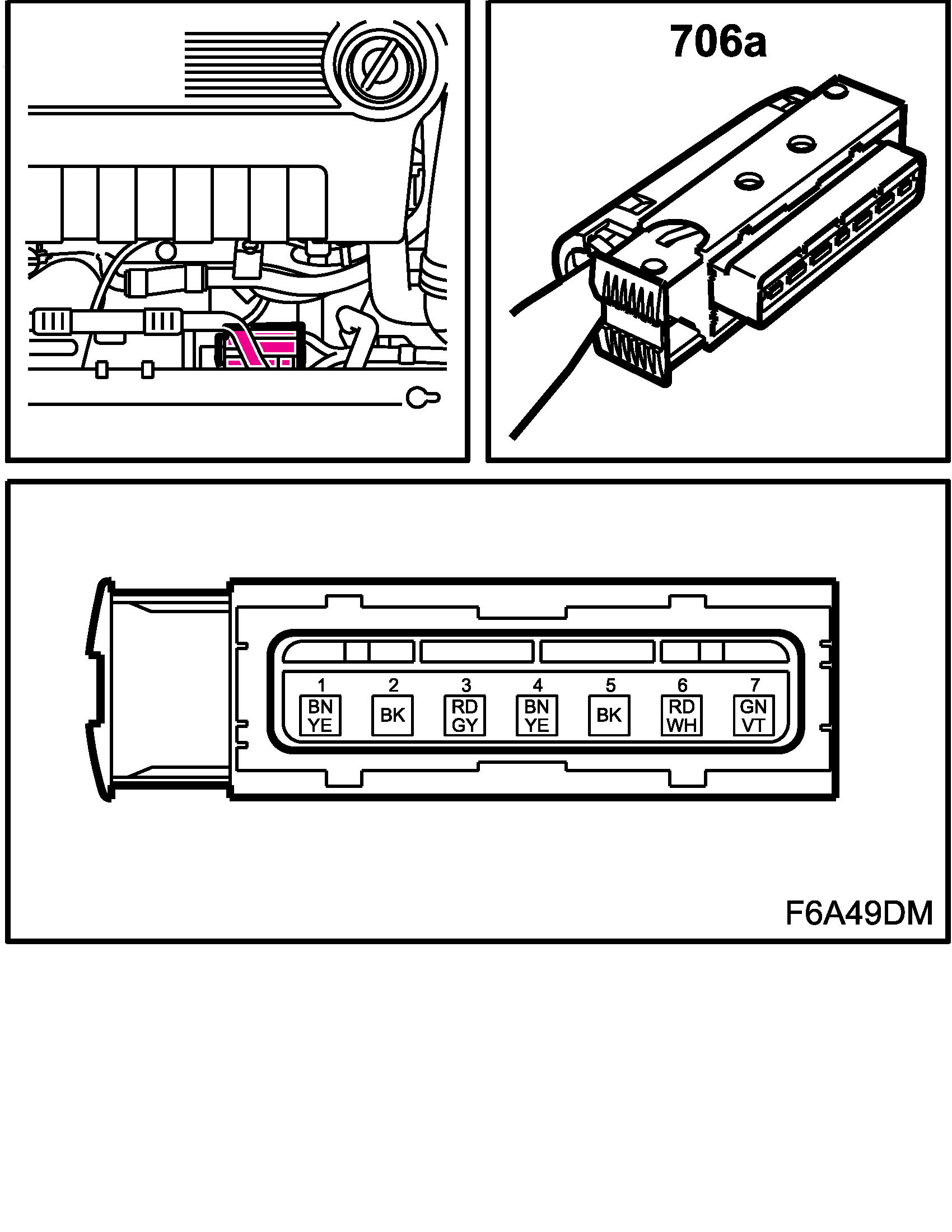

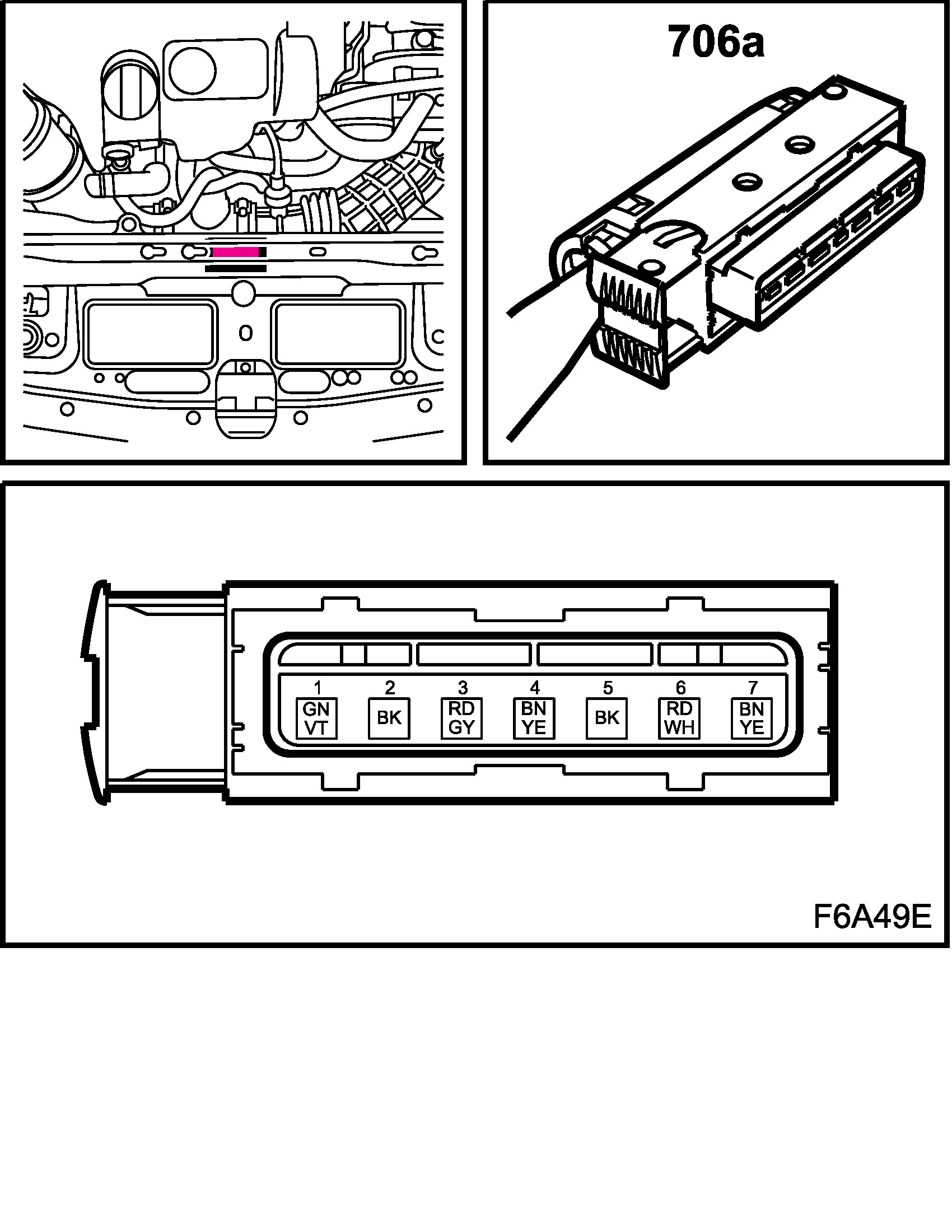

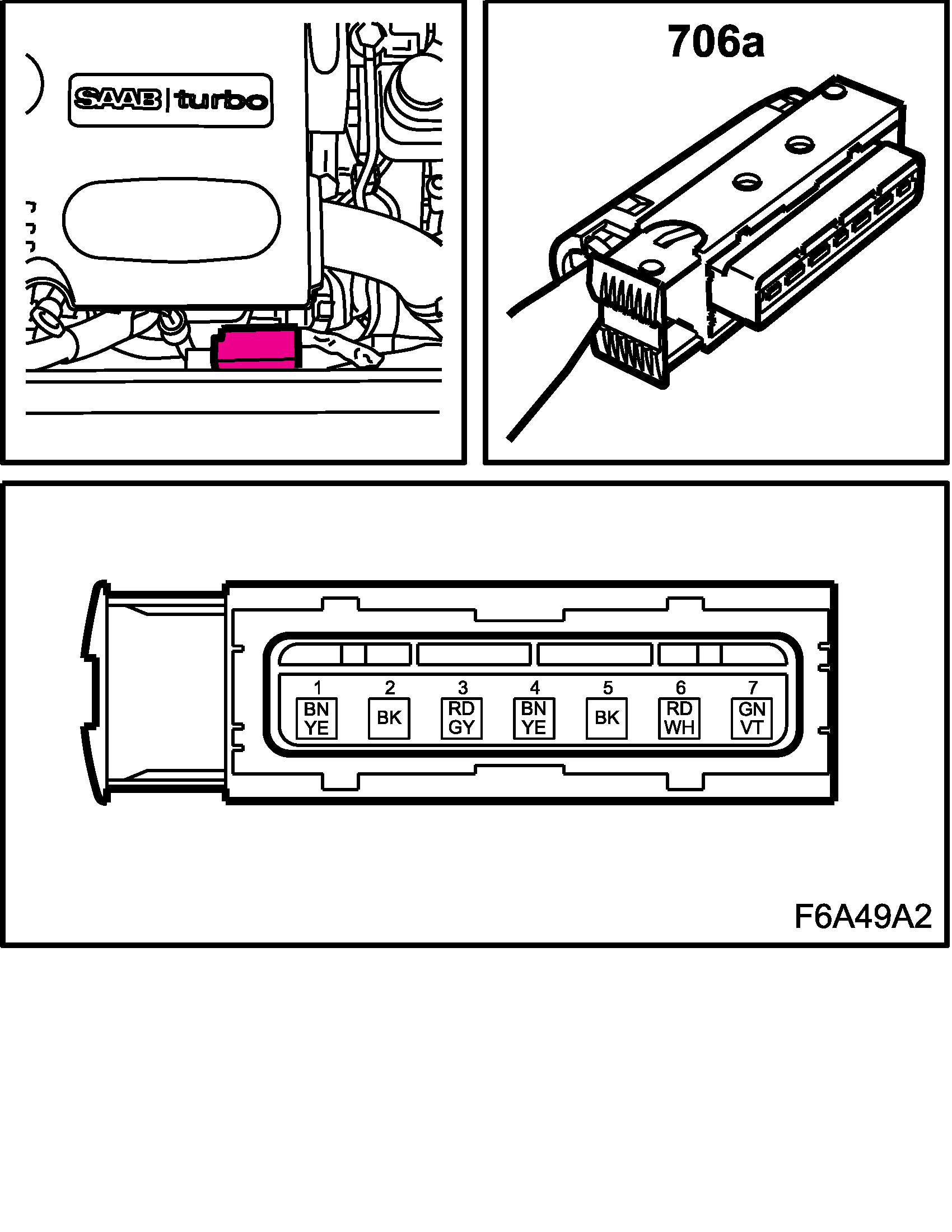

Relay Unit, Radiator Fans (706A)
Relay Unit, Radiator Fans (706A)
Relay unit, radiator fans (706a)
Location:
on top of the radiator fan cover
B207
B284
Z19
