Connector H24-6 (ME9)
Connector H24-6 (ME9)

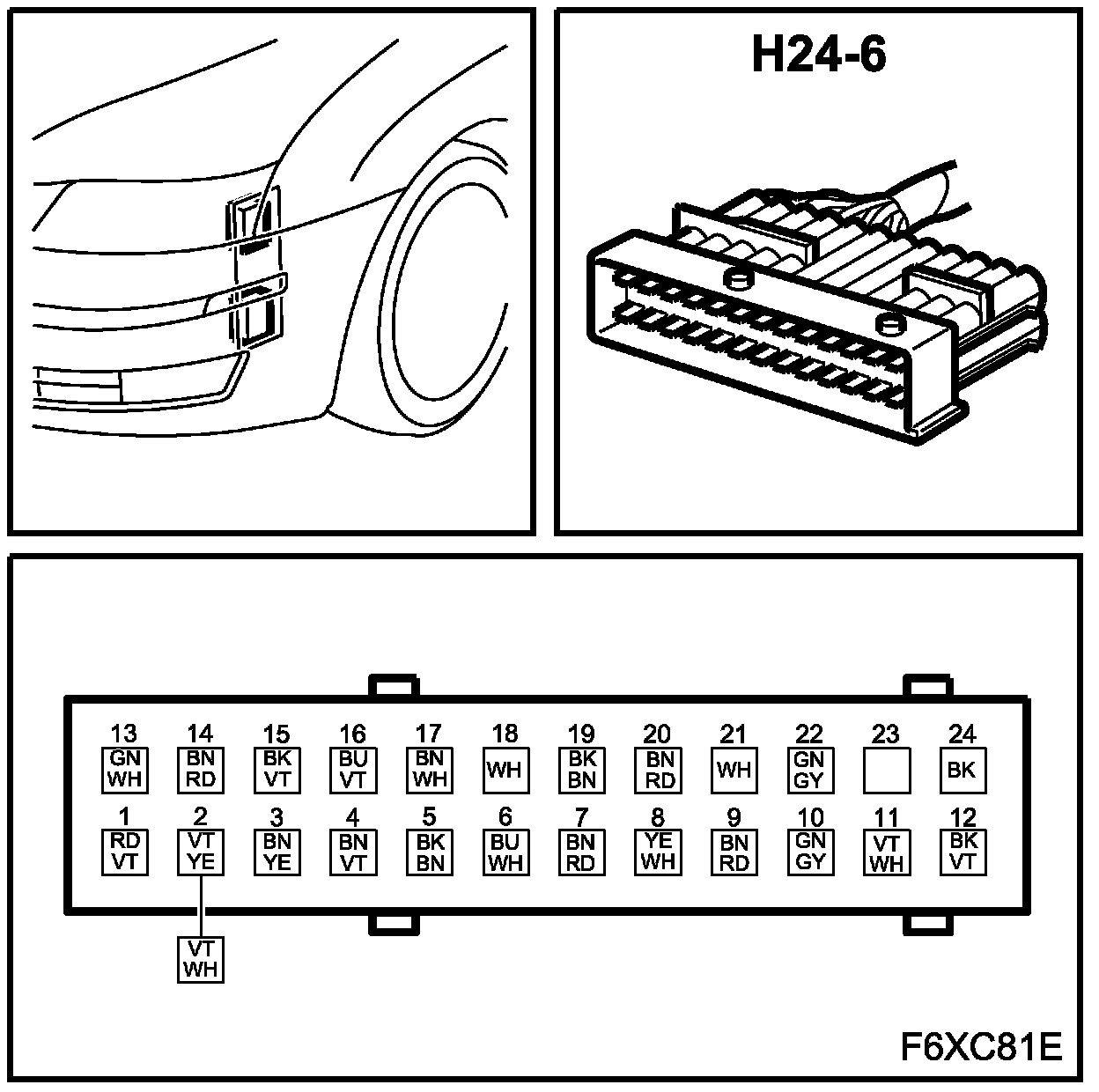

Location:
Grey connector in front of battery on side of left structural member.
Connector H24-6 (ME9):
