Wastegate Solenoid
Wastegate Solenoid

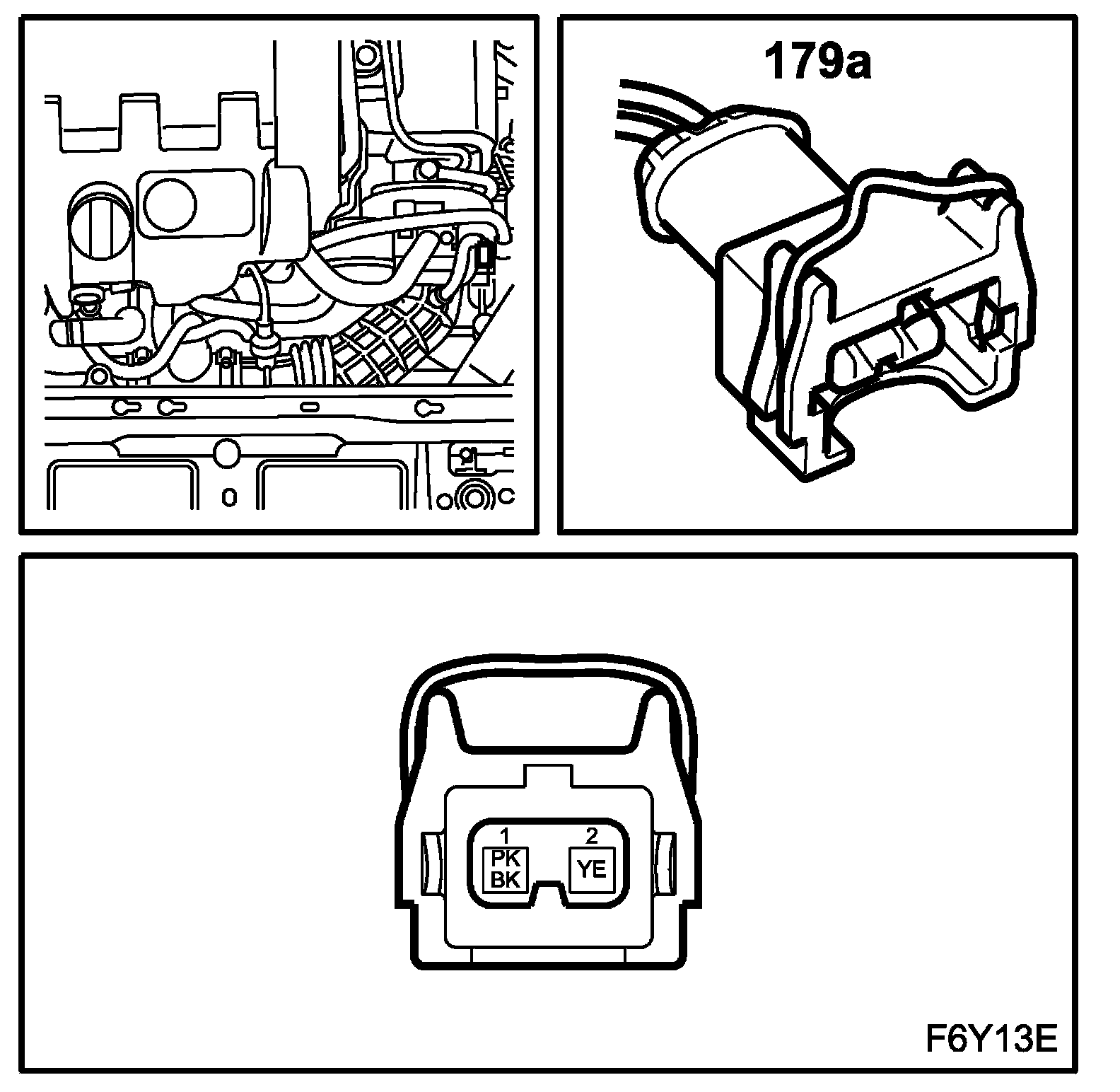

Location:
On turbocharger delivery pipe.
B284
Charge Air Solenoid Valve (179a):
