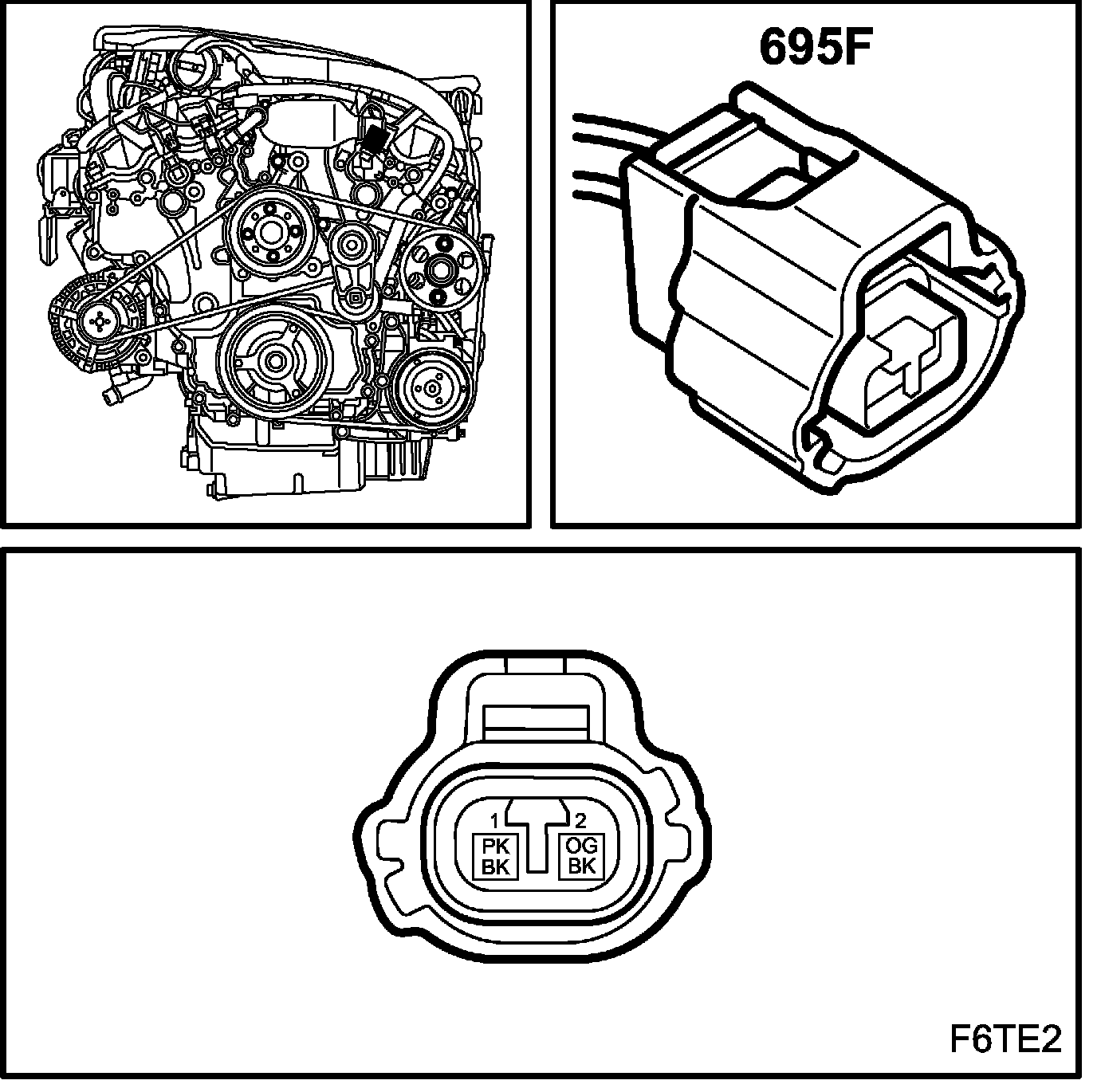

Solenoid Valve, Intake Camshaft, Front Cylinder Bank (695F)



Location: on the front cylinder bank's belt circuit end near the front edge

Solenoid Valve, Intake Camshaft, Front Cylinder Bank (695F):
