Rear Suspension

Anti-roll bar bush, rear

To remove
1. Raise the car.

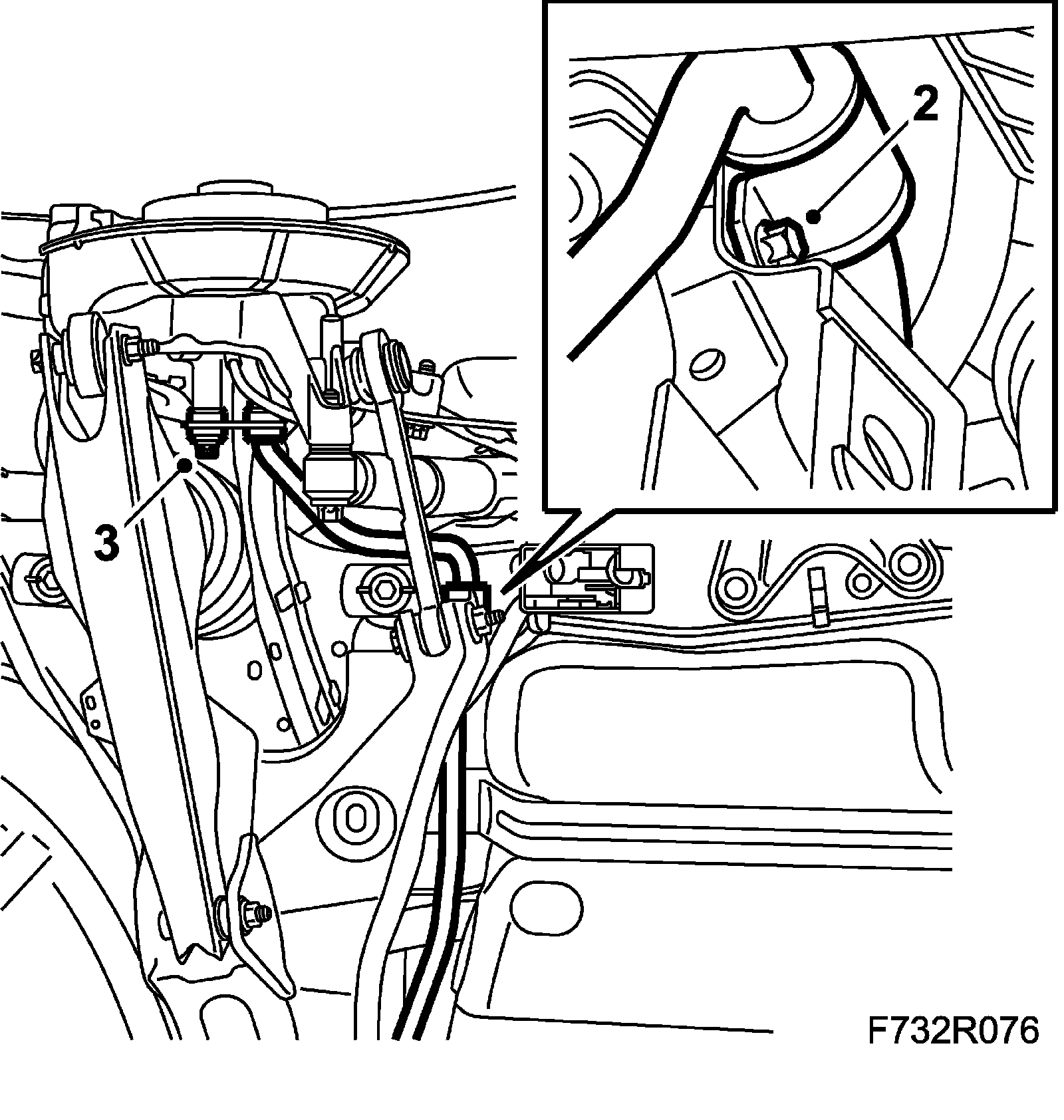

2. Detach the anti-roll bar from the steering swivel members.





3. Remove the anti-roll bar mountings from the subframe.
4. Remove the bushes from the anti-roll bar.

To fit
1. Clean the anti-roll bar and grease the inside of the bushes with 30 20 476 Ball bearing grease. Fit the bushes to the anti-roll bar and fit the caps.

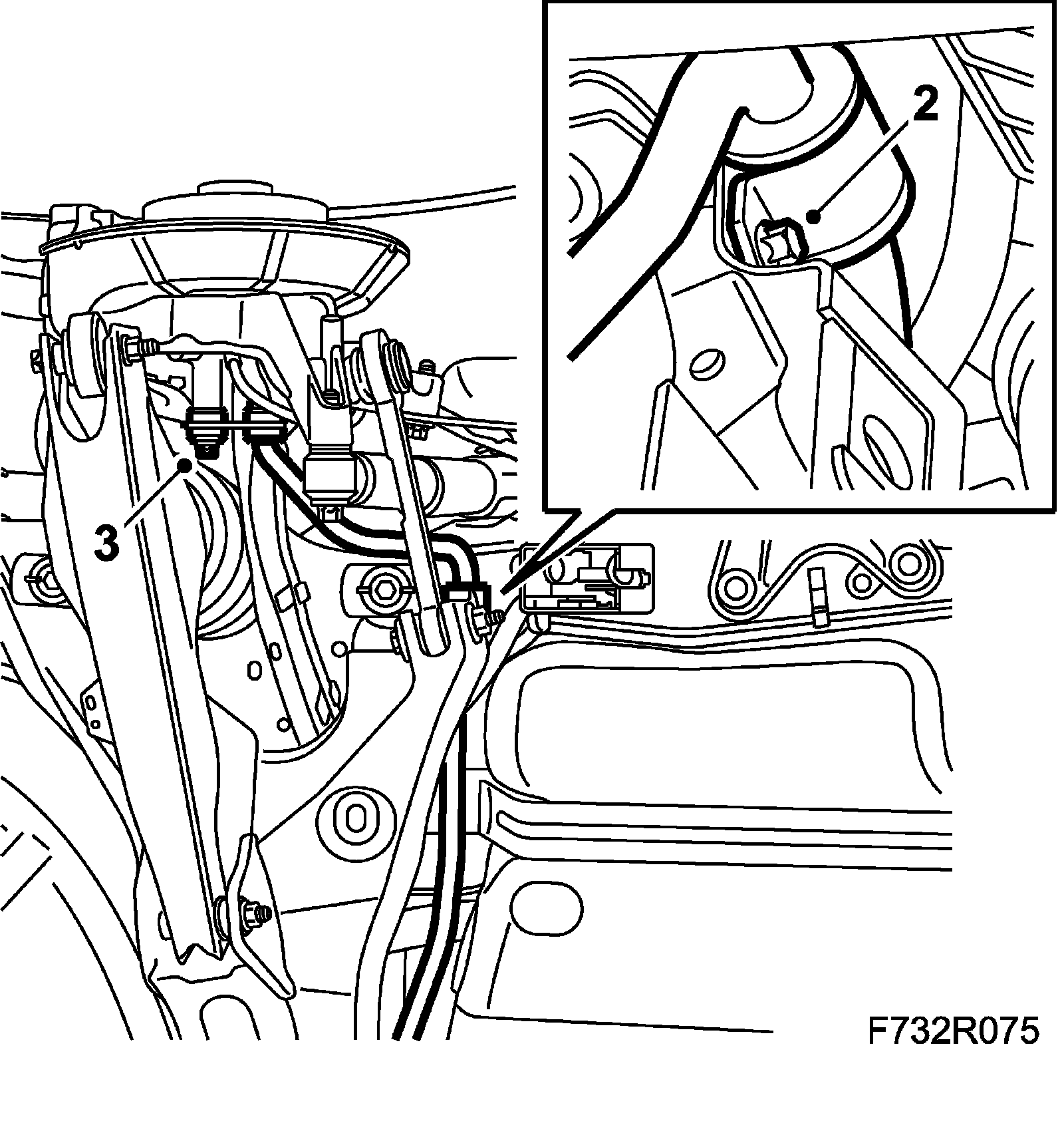

2. Fit the anti-roll bar to the subframe.

Tightening torque bolt 8.8 (flange diameter 15.2 mm): 18 Nm (13 ft. lbs.) and use Thread locking adhesive, Loctite 242

Tightening torque bolt 10.9 (flange diameter 16.7 mm): 31 Nm (23 ft. lbs.)





3. Fit the anti-roll bar link to the steering swivel member on both sides.

Tightening torque 53 Nm (39 ft. lbs.)

4. Lower the car to the floor.
